Epson EB-X14 Service Manual

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 93 Revision C
3.3.11.1 BA Unit / SCI Cable
1. Remove the Air Filter. (p.59)
2. Remove the Lamp. (p.60)
3. Remove the Upper Case (assembly). (p.62)
4. Remove the MA Board (assembly). (p.74)
5. Remove the Optical Engine. (p.82)
6. Remove the Lamp Fan. (p.86)
7. Remove the EX Duct (assembly). (p.87)
8. Remove the BA Power Supply (assembly). (p.89)
9. Open the BA Insulation Sheet.
10. Release the three hooks of the BA Power Supply (assembly) and remove the BA
Unit.
11. Disconnect the connector of the BA Cable from the BA Unit.
12. Release the SCI Cable from the groove (1) of BA Insulation Sheet.
13. Remove the BA Unit from the BA Insulation Sheet.
14. Remove the BA Lamp Cable from the BA Unit.
15. Remove the SCI Cable from the BA Unit.
16. Release the BA Cable from the groove (2), and remove the BA Insulation Sheet.

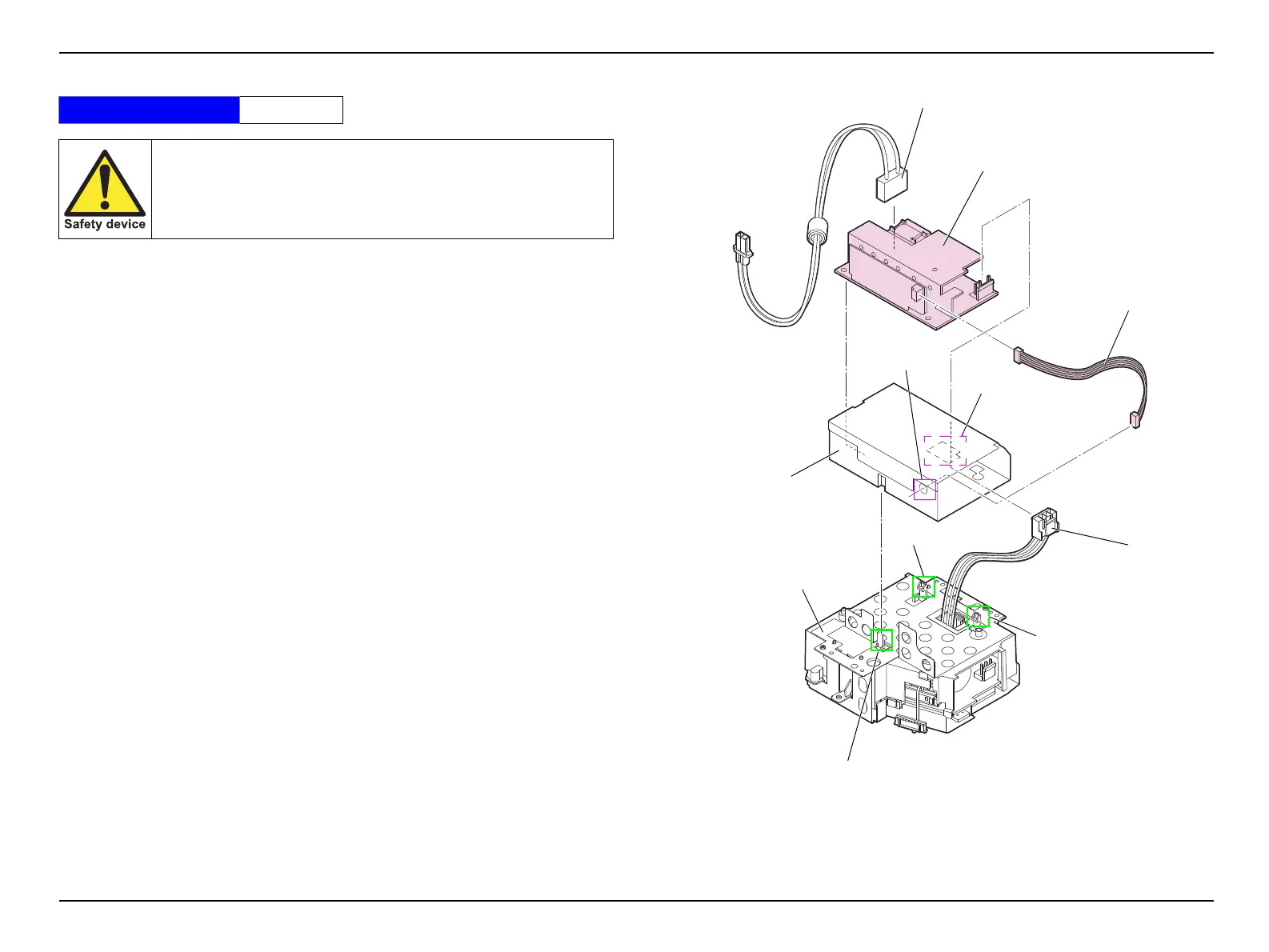

Figure 3-32.
Standard Operation Time 15 Min.
BA Unit is designated as the Safety Device. When removing/
replacing the BA Unit for repair, be sure to refer to “3.4 Safety
Check after Servicing (p.103)”. According to the instructions in
it, handle the part and perform the procedure after servicing.
Hook
Hook
Hook
BA Insulation
Sheet
BA Lamp Cable
BA Unit
BA Cable
SCI Cable
BA Power Supply
(assembly)
Groove (1)
Groove (2)

Epson EB-X14 Specifications

General

Native aspect ratio	4:3
Projection distance	1.1 - 10.8 m
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	±30 °
Projector brightness (economic mode)	2400 ANSI lumens
Focus	Manual
Throw ratio	1.48 - 1.77:1
Focal length range	17 - 20 mm
Lamp type	E-TORL
Lamp power	200 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
AC (power) in	Yes
Audio (L/R) in	-
Composite video in	0
USB connector type	USB Type-A, USB Type-B
USB 2.0 ports quantity	2
S-Video inputs quantity	1
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
RMS rated power	2 W
Noise level	37 dB
Preset modes	Dynamic, Presentation, sRGB, Vivid photo
Country of origin	China
Noise level (economic mode)	29 dB
Placement	Desktop
Product type	Standard throw projector
Product color	Black, White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	220 - 240 V
Power consumption (standby)	0.47 W
Power consumption (typical)	270 W
Pallet width	800 mm
Pallet height	2204 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	228 mm
Width	295 mm
Height	77 mm
Weight	2300 g
Package depth	360 mm
Package width	335 mm
Package height	158 mm
Package weight	3964 g
