Epson EB-X14 Service Manual

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 79 Revision C
3.3.6.2 MA Board / RS Board (EB-S11/X11 only)
1. Remove the Air Filter. (p.59)
2. Remove the Lamp. (p.60)
3. Remove the Upper Case (assembly). (p.62)
4. Remove the MA Board (assembly). (p.74)
5. Remove the IF Case. (p.78)
6. Remove the seven screws.
7. Release the hook of the IF Shade Case from MA Plate and remove the IF Shade
Case and the MA Plate.
8. Remove the INT Fan Cushion from the MA Board.
9. Remove the RS Board from the IF Shade Case.
(EB-S11/X11 only)

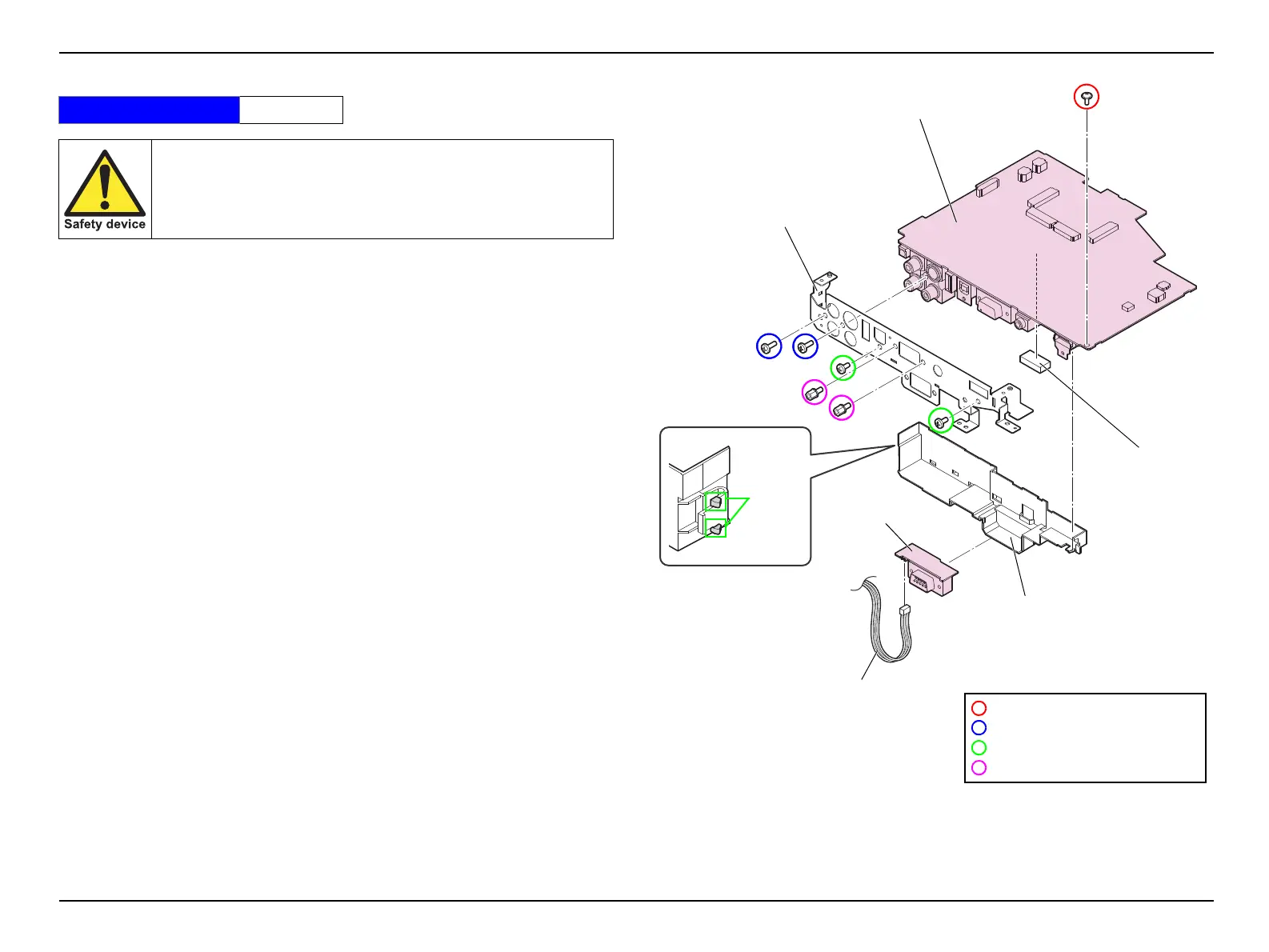

Figure 3-21.
Standard Operation Time 12 Min.
MA Board is designated as the Safety Device.When removing/
replacing the MA Board for repair, be sure to refer to “3.4 Safety
Check after Servicing (p.103)”. According to the instructions in
it, handle the part and perform the procedure after servicing.
C.C.SCREW,2.5X6,F/ZN-3C
C.B.P-TITE SCREW,3X8,F/ZN-3C
C.B.SCREW,3X6,F/NI
1/4-40X1/4,H.H.,F/NI,O SCREW
MA Board
MA Plate
IF Shade Case
INT Fan Cushion
Hooks
RS Board
RC Cable

Epson EB-X14 Specifications

General

Native aspect ratio	4:3
Projection distance	1.1 - 10.8 m
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	±30 °
Projector brightness (economic mode)	2400 ANSI lumens
Focus	Manual
Throw ratio	1.48 - 1.77:1
Focal length range	17 - 20 mm
Lamp type	E-TORL
Lamp power	200 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
AC (power) in	Yes
Audio (L/R) in	-
Composite video in	0
USB connector type	USB Type-A, USB Type-B
USB 2.0 ports quantity	2
S-Video inputs quantity	1
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
RMS rated power	2 W
Noise level	37 dB
Preset modes	Dynamic, Presentation, sRGB, Vivid photo
Country of origin	China
Noise level (economic mode)	29 dB
Placement	Desktop
Product type	Standard throw projector
Product color	Black, White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	220 - 240 V
Power consumption (standby)	0.47 W
Power consumption (typical)	270 W
Pallet width	800 mm
Pallet height	2204 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	228 mm
Width	295 mm
Height	77 mm
Weight	2300 g
Package depth	360 mm
Package width	335 mm
Package height	158 mm
Package weight	3964 g
