Epson EB-X14 Service Manual

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 61 Revision C

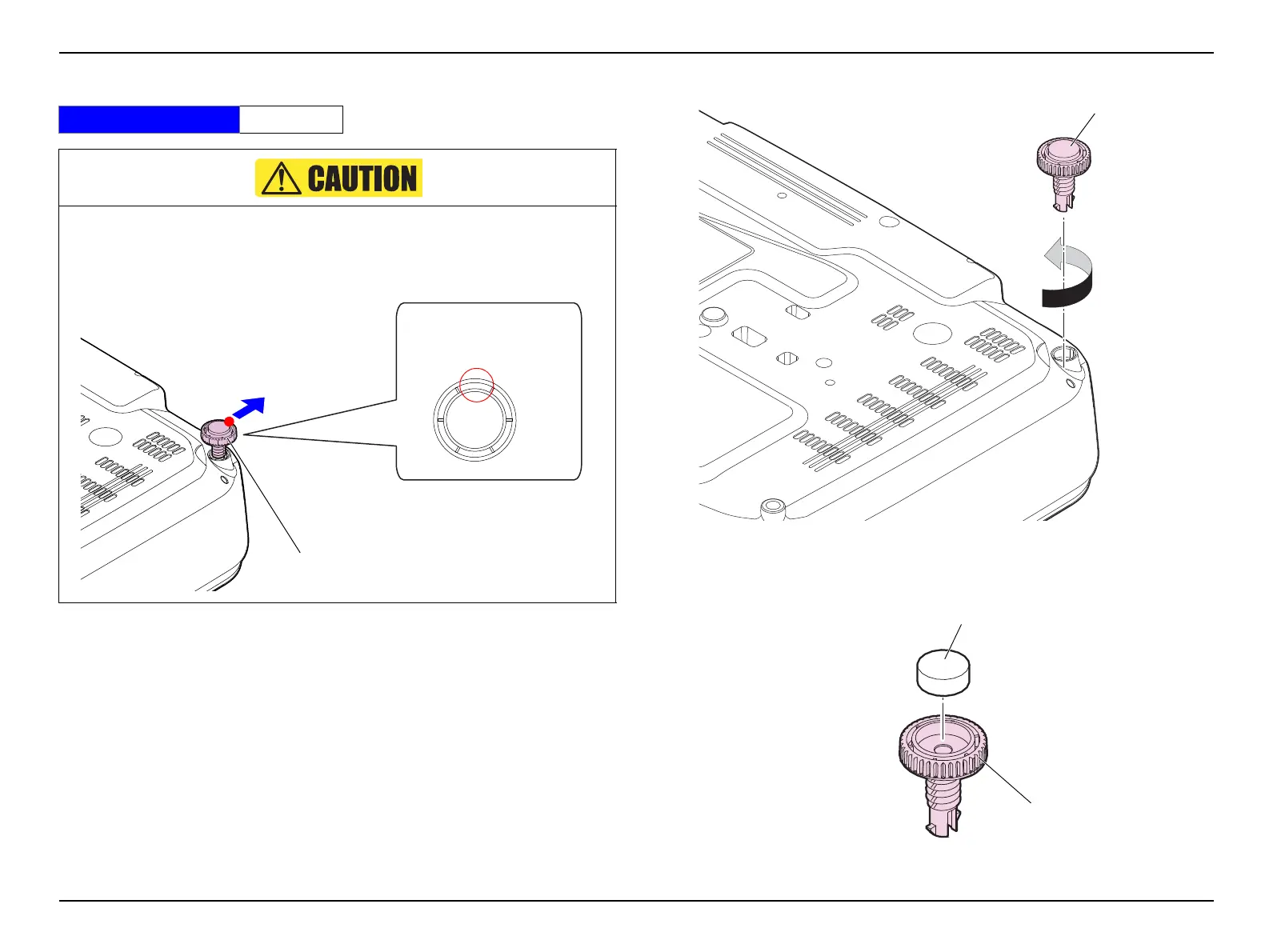

3.3.3 Rear Foot
1. Turn the Rear Foot counterclockwise and pull the foot out to remove it.
Figure 3-4.
2. Remove the Foot Rubber from the Rear Foot.
Figure 3-5.
Standard Operation Time 1 Min.
When removing the Rear Foot, make sure to align the marking on the bottom to
the IF side first, and then pull the foot out. Since there are two hooks on the
screw part of the foot, aligning them to the grooves on the screw hole of the
Lower Case before removal will prevent damage to the Rear Foot.
E1
IF side
Marking
(Letters such as
E2 are engraved)
Rear Foot
Rear Foot
Foot Rubber
Rear Foot

Epson EB-X14 Specifications

General

Native aspect ratio	4:3
Projection distance	1.1 - 10.8 m
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	±30 °
Projector brightness (economic mode)	2400 ANSI lumens
Focus	Manual
Throw ratio	1.48 - 1.77:1
Focal length range	17 - 20 mm
Lamp type	E-TORL
Lamp power	200 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
AC (power) in	Yes
Audio (L/R) in	-
Composite video in	0
USB connector type	USB Type-A, USB Type-B
USB 2.0 ports quantity	2
S-Video inputs quantity	1
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
RMS rated power	2 W
Noise level	37 dB
Preset modes	Dynamic, Presentation, sRGB, Vivid photo
Country of origin	China
Noise level (economic mode)	29 dB
Placement	Desktop
Product type	Standard throw projector
Product color	Black, White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	220 - 240 V
Power consumption (standby)	0.47 W
Power consumption (typical)	270 W
Pallet width	800 mm
Pallet height	2204 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	228 mm
Width	295 mm
Height	77 mm
Weight	2300 g
Package depth	360 mm
Package width	335 mm
Package height	158 mm
Package weight	3964 g
