Part Names and Functions

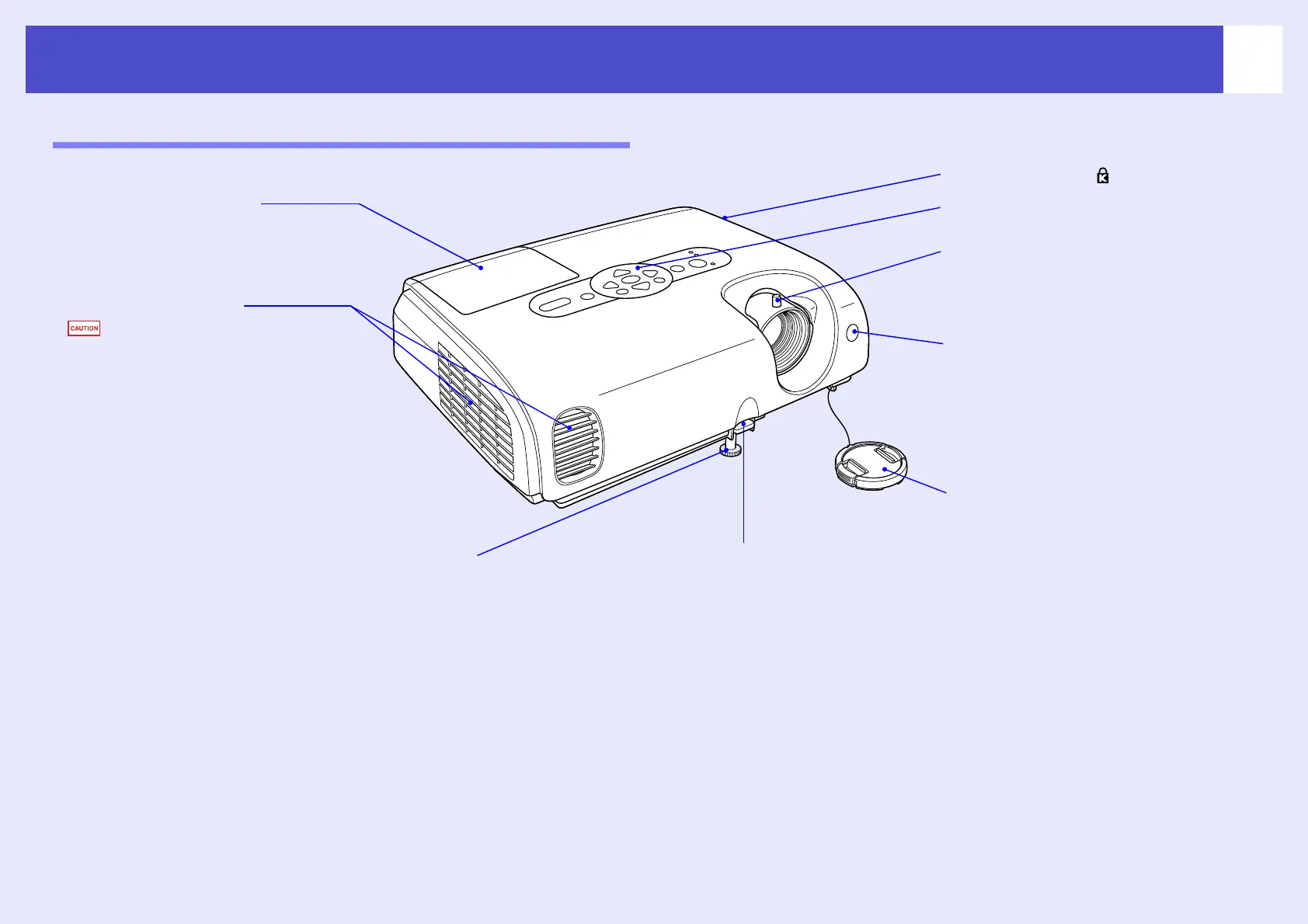

Front/Top
• Control panel sp.9
• Remote control light-receiving
area (See the Quick Setup
sheet)
Receives signals from the remote control.
• Front adjustable foot
(See the Quick Setup sheet)
Extend and retract to adjust the projection
angle when the projector is placed on a
surface such as a shelf.
• Lens cover
Attach when not using the projector to
prevent the lens from becoming dirty or
damaged.
• Focus ring (See the Quick
Setup sheet)
Adjusts the image focus.
• Foot adjust lever
(See the Quick Setup sheet)
Push up on the foot lever to extend and
retract the front foot.
• Air exhaust vent
Do not touch the exhaust vent
immediately after projecting, or while
projecting, since it becomes hot.
Lamp cover sp.61
Open this cover when replacing the
projector's lamp.
• Security lock ( ) sp.70
