16 Setting Up the Projector

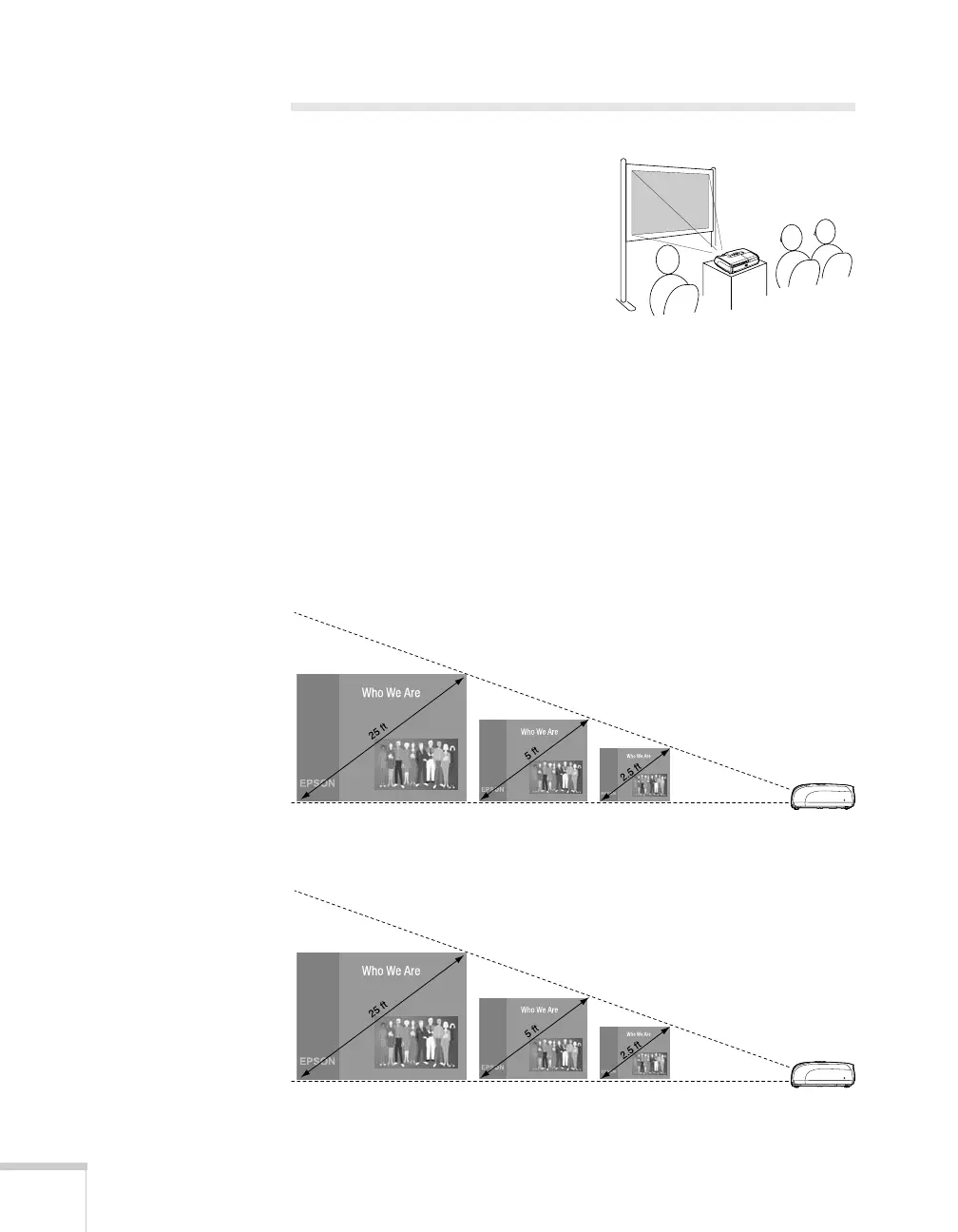

Positioning the Projector
Before connecting the projector, you
need to decide where to place it. If
you’re setting up the projector yourself
and it isn’t already installed in the
room you’re using, you’ll probably
want to place it on a table in front of
the screen, as shown.
This lets you stand in the front of the room, face the audience, and
remain close enough to the equipment to be able to control it. Try to
leave as much space as possible between the projector and the screen to
get a good-size image.
Place the projector somewhere between 3 and 30 feet from the screen.
Use the figure below to help you determine exactly how far. Image size
increases with distance, but can vary depending on how you’ve
adjusted the optical zoom and other settings.
PowerLite S5 Series
PowerLite 77c
29.4 feet
5.8 to 8.6 feet
2.9 to 4.2 feet
28.4 to 34.2 feet
5.6 to 7.3 feet
2.7 to 3.6 feet
