Chapter 2 Setup

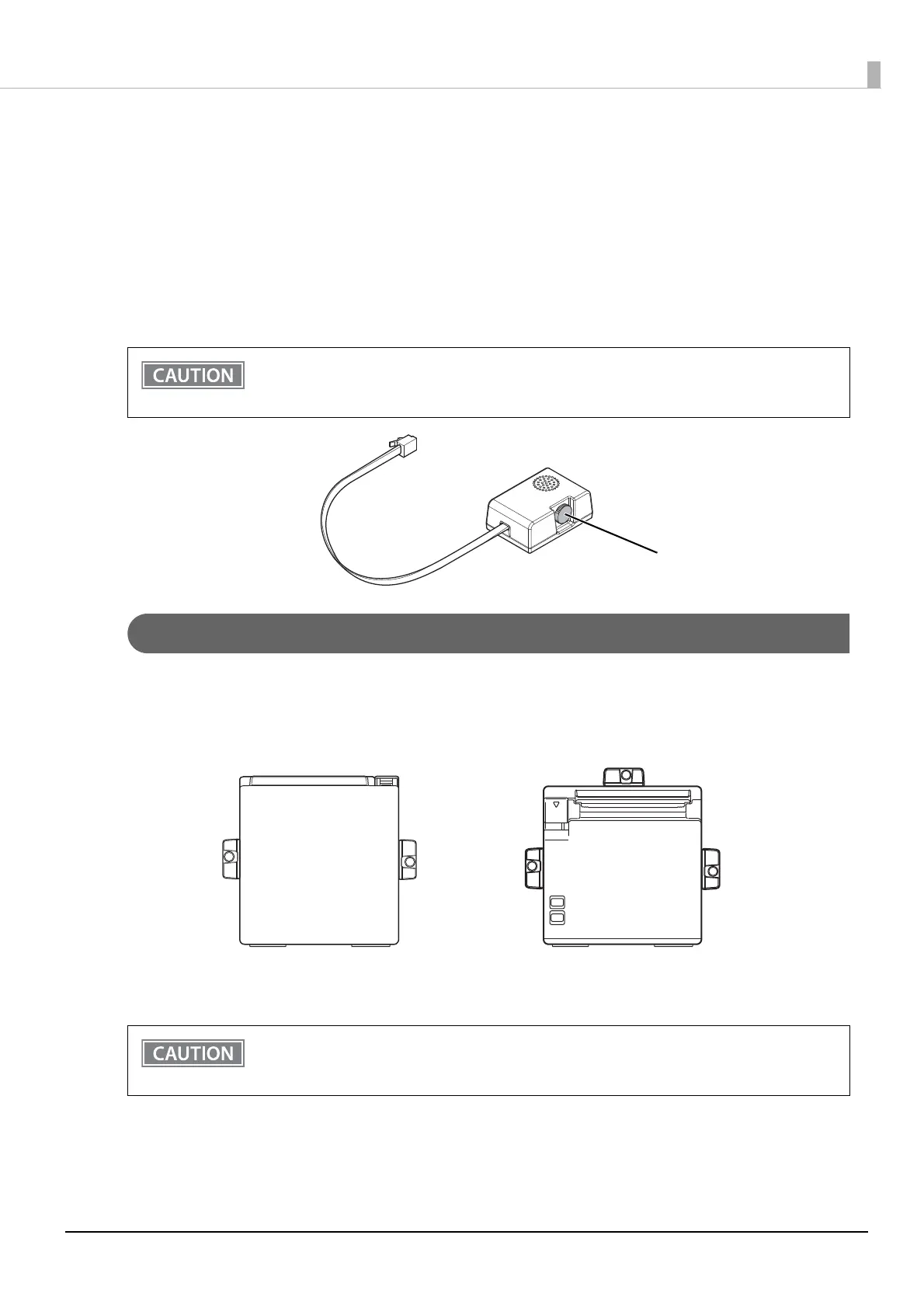

Connecting the Optional External Buzzer
When the optional external buzzer (model: OT-BZ20) is connected to the drawer kick connector of the printer,
you can set the printer so that it beeps when you send commands, when an error occurs, when executed
autocutting, and when detected paper end. Settings for sound patterns and frequency depending on the
occasions the buzzer beeps are also available.
You need to set with the memory switch (customized values) for buzzer enable/disable setting, sound pattern
setting, and frequency setting. For information about the memory switch (customized values), see "Software
Settings" on page 48.
Attachment Position
The optional external buzzer is recommended to be installed in the following positions.
• When using the printer in top eject position: either side
• When using the printer in front eject position: side or top
• Be sure to turn off the printer before you connect/disconnect the optional external buzzer.
• Do not connect both the optional external buzzer and the cash drawer to the printer at the
same time by using a branched connector.
• Do not install the optional external buzzer at the roll paper exit.
• To prevent liquid from entering inside, it is recommended to install the optional external buzzer
so that the volume adjustment knob is positioned sideways or downward.
Volume adjustment knob
Top eject position
(Viewed from the front)
Front eject position
(Viewed from the front)

Epson TM-m30II-NT Specifications

General

Type	POS printer
Character sets	ANK
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Built-in barcodes	-
Country of origin	Philippines
Mounting position	Horizontal/Vertical
Autocutter durability	2.2 million cuts
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Built-in sensors details	Paper End Sensor, Papier-Sensor
Sound pressure level (printing)	55 dB
Mean time between failures (MTBF)	360000 h
Product color	White
Power plug type	Type C
Power source type	AC
Maximum roll diameter	83 mm
Supported paper width	58 mm - 80 mm (Breite) mm
USB connector	USB Type-A / USB Type-B
Serial interface	No
USB 2.0 ports quantity	2
Connectivity technology	Wired
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	240 mm
Package width	195 mm
Package height	235 mm
Package weight	2382 g
Quantity per pack	1 pc(s)
Print head life	150.000.000 Impulse
Mean cycles between failures (MCBF)	65000000
Quantity per pallet	128 pc(s)
Quantity per pallet (UK)	192 pc(s)
Master (outer) case width	400 mm
Master (outer) case height	255 mm
Master (outer) case length	490 mm
Master (outer) case weight	0 g
Harmonized System (HS) code	84433210
Quantity per master (outer) case	4 pc(s)

Weight and Dimensions

Width	127 mm
