STRAINER
ASSEMBLY
ANTI-VORTEXING
H
OOD
STRAINER
HANDLE

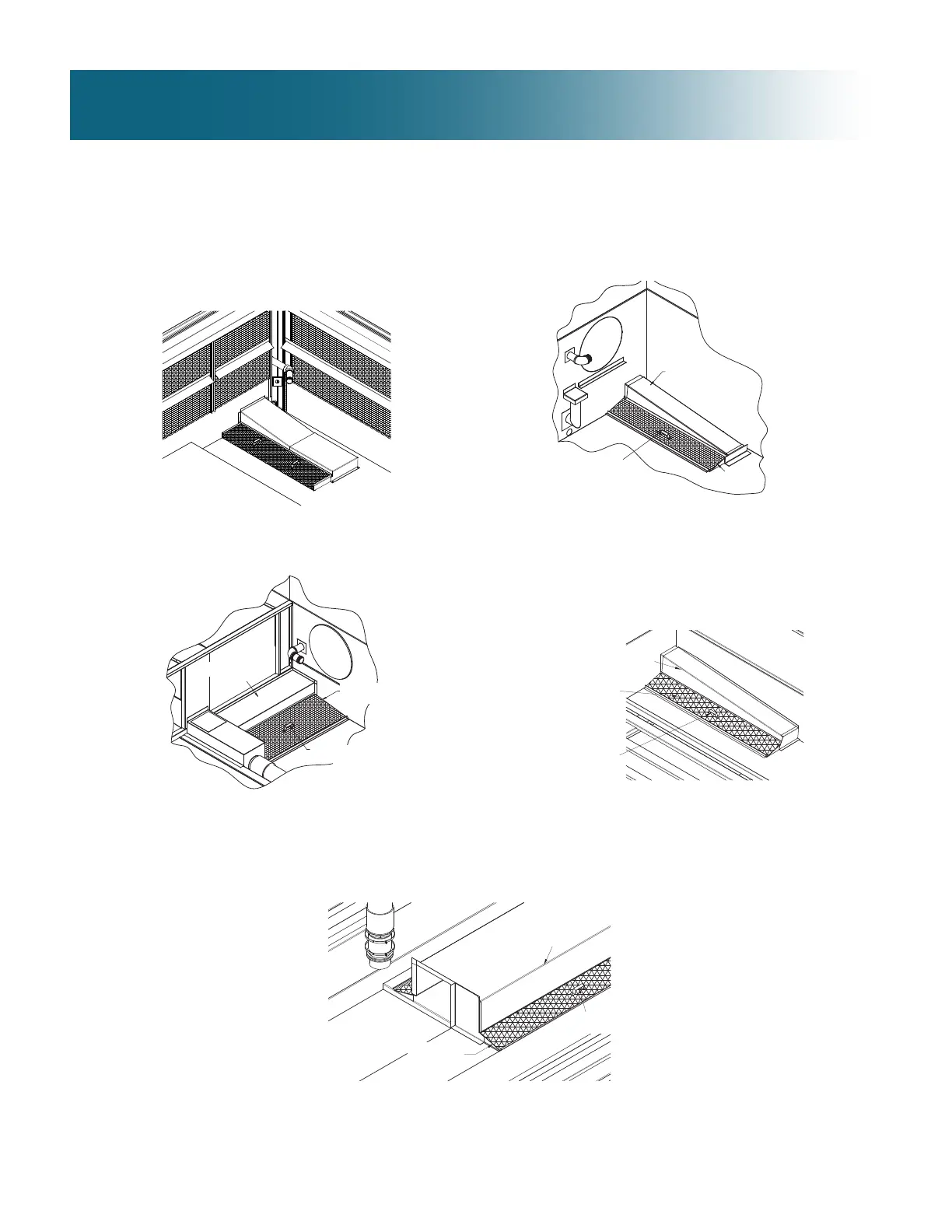

Figure 10 – ATC/W Single Strainer Assembly
Figure 11 – LSWE/LSC-E/PMC-E Strainer Assembly
Figure 12 – LRWB/LRC Strainer Assembly
ANTI-VORTEXING
HOOD
STRAINER
HANDLE
STRAINER
ASSEMBLY
Suction Strainer in Cold Water Basin
The pan strainer as shown in Figures 10 through 14 should be removed and cleaned monthly or as oen as necessary. The suction strainer
is the first line of defense in keeping debris out of the system. Make certain that the strainer is properly located over the pump suction,
alongside the anti-vortexing hood.
Recirculated Water System - Routine Maintenance
STRAINER
HANDLE
STRAINER
ASSEMBLY
ANTI-VORTEXING
HOOD
ANTI-VORTEXING
HOOD
PUMP HOUSE HIDDEN FOR CLARITY
STRAINER
HANDLE
STRAINER
ASSEMBLY
Figure 13 – PHC-S&L Strainer Assembly
Figure 14 – PHC-D Strainer Assembly
