FAAC 455D User Manual

13
24 Vdc
3 W
PE
12 V ac
FCC2
J4
J1
J3
F1
F2
PE N
L
MAIN
12 45678
COM
OP
M1
COM
OP
M2
CL
LAMP
9 10111213141516171819
OPEN
AB
STP
CL
OP
FSW
---
+24V
++
-TX
FSW
20 21
W.L.
LOCK
J5
J2
F
22
23
24 25
FCA1
FCC1 FCA2
FCC2
–
+
STOP
OP_A
OP_B
FSWCL
FSWOP
FCC1
FCC2
FCA1
FCA2
J6
Fig. 1
Fig. 2

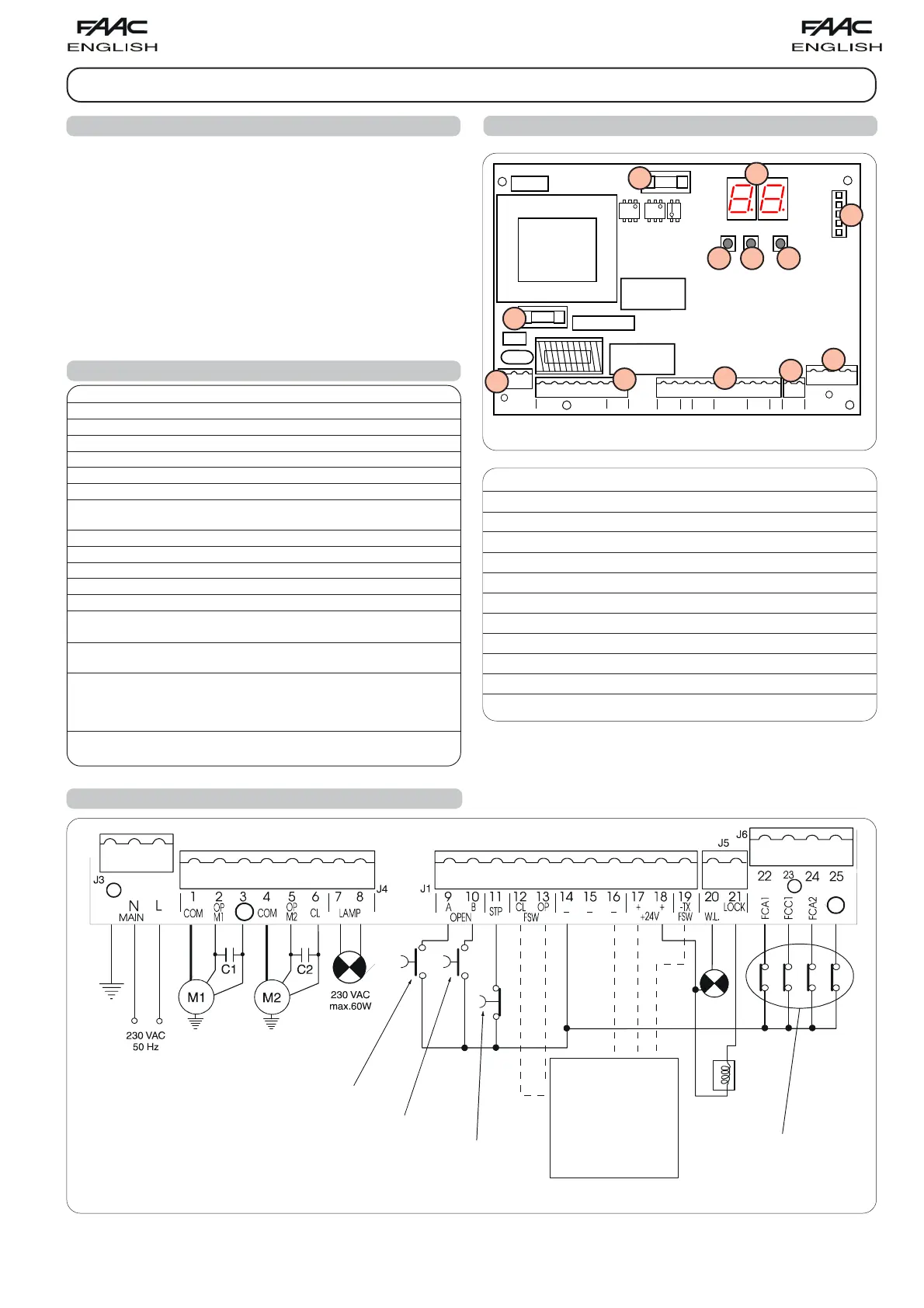

3. LAYOUT AND COMPONENTS OF 455 D
NB.: Capacitors are supplied with the operators.
TOTALLY OPEN
OPEN LEAF 1
STOP
1. WARNINGS
Important: Before attempting any work on the control board
(connections, maintenance), always turn off power.
- Install, upstream of the system, a differential thermal breaker
with adequate tripping threshold.
- Connect the earth cable to the appropriate terminal on the J3
connector of the equipment (see fig.2).
- Always separate power cables from control and safety cables
(push-button, receiver, photocells, etc.). To avoid any electric
noise, use separate sheaths or a shielded cable (with earthed
shield).
CONTROL BOARD 455 D
4. ELECTRIC CONNECTIONS
DL SIGNALLING AND PROGRAMMING DISPLAY
J1 LOW VOLTAGE TERMINAL BOARD
J2 CONNECTOR FOR DECODER/MINIDEC/RP RECEIVER
J3 230 VAC POWER SUPPLY TERMINAL BOARD
J4 MOTORS AND FLASHING LAMP CONNECTION TERMINAL BOARD
J5 INDICATOR-LIGHT AND ELECTRIC LOCK TERMINAL BOARD
J6 LIMIT-SWITCH AND GATECODER TERMINAL BOARD
F1 MOTORS AND TRANSFORMER PRIMARY WINDING FUSE (F 5A)
F2 LOW VOLTAGE AND ACCESSORIES FUSE (T 800mA)
F "F" PROGRAMMING PUSH-BUTTON
– "–" PROGRAMMING PUSH-BUTTON
+ "+" PROGRAMMING PUSH-BUTTON
F
F1
F2
J1
J2
J3
J4
J5
J6
DL
–+
LIMIT-SWITCH
2. TECHNICAL SPECIFICATIONS
Power supply 230 V~ ( +6% -10%) - 50 Hz
Absorbed power 10 W
Motor max. load 800 W
Accessories max. load 0,5 A
Electric lock max. load 15 VA
Operating ambient temperature -20 °C +55 °C
Protection fuses 2 (see fig. 1)
Function logics Semi-automatic / Automatic / Safety devices / "Stepped" semi-automatic
/ "Stepped" automatic / "Stepped" Safety devices / Semi-automatic B / Dead-man C
Opening/closing time Programmable (from 0 to 120 s)
Pause time Programmable (from 0 to 4 min.)
Closing leaf delay Programmable (from 0 to 4 min.)
Opening leaf delay 2 s (can be excluded)
Thrust force Adjustable on 50 levels for each motor
Terminal board inputs Open / Open free leaf / Stop / Limit-switch
Opening safety devices / Closing safety devices / Power supply + Earth
Terminal board outputs Flashing lamp - Motors - 24 Vdc accessories power
supply- 24 Vdc indicator-light - Fail safe - 12 Vac electric lock power supply
Programmable functions Logic - Pause time - Thrust Force - Torque at initial thrust
Opening and closing leaf delay - Reversing stroke - Over-pushing stroke - indicator-
light - Pre-flashing - Electric lock - Fail safe - Safety devices logic - Assistance request
- Detection time of obstacle or contact point
Learning function Simple or complete work time learning, with or without
Limit-switch and/or Gatecoder.
For connection of
the photocells
and safety
devices, see
paragraph 4.1
(page 14).
BLUE
BLUE
