Power supplies
2.
94
Ref.1912
DDS
HARDWARE
· 50 ·
The gap and tightening torque and sections of the screws of the plug-in
connectors for X3 and X4|X5|X6 are given by the table:

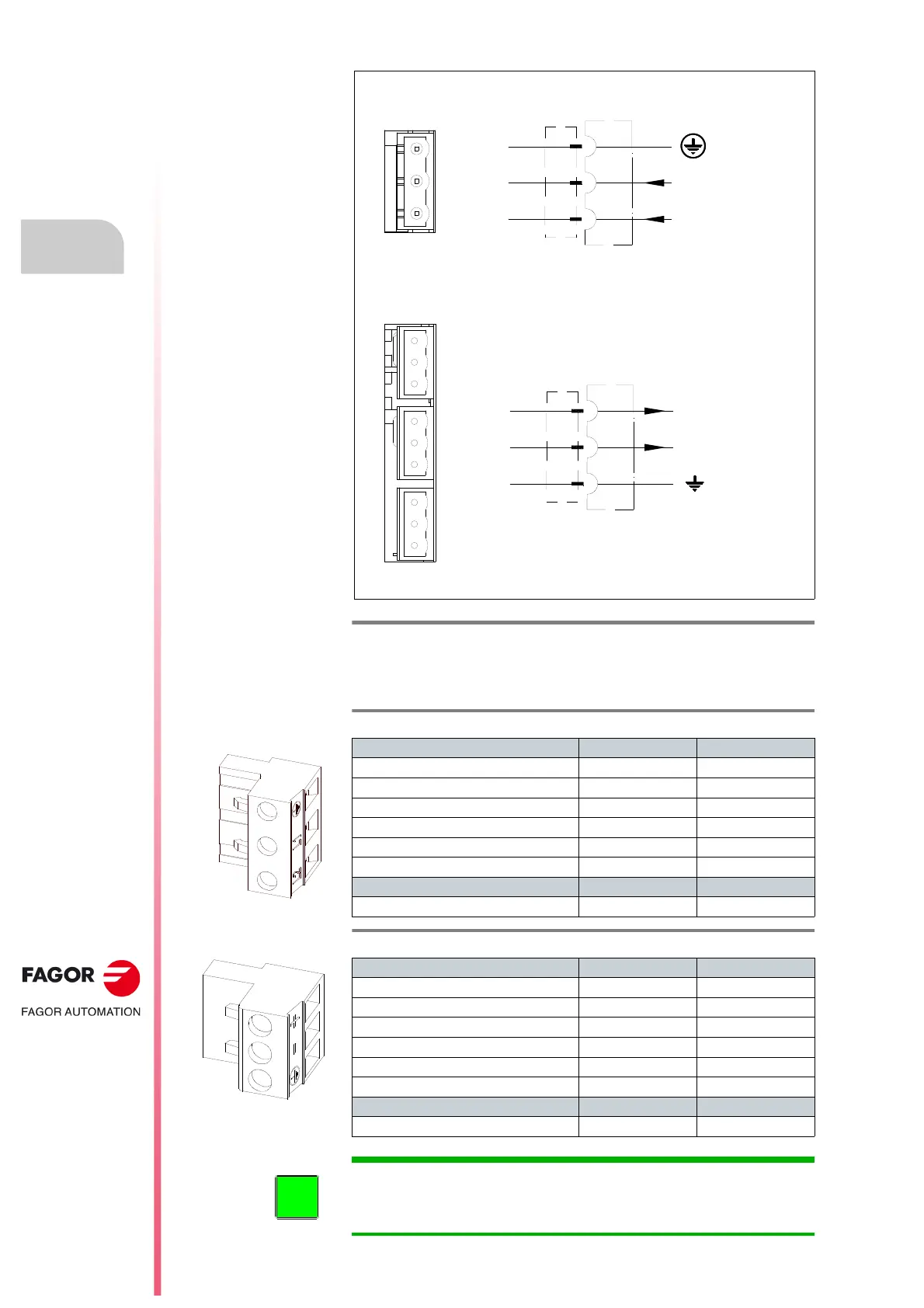

F. H2/13
Connectors X3|X4|X5|X6 of the auxiliary power supply integrated into the
PS-25B4.
T. H2/12 Plug-in connector for X3. Technical data.
Connector data PS-25B4
Nr of poles 3
Gap (mm)
7.62
Min/max tightening torque (N·m)
0.5/0.6
Screw thread
M3
Min./max. section (mm²) 0.2/2.5
Rated current In (A)
12
Wire data
Length to strip (mm)
7
T. H2/13 3 identical plug-in connectors for X4/X5/X6. Technical data.
Data of each connector PS-25B4
Nr of poles 3
Gap (mm)
5.08
Min/max tightening torque (N·m) 0.5/0.6
Screw thread M3
Min./max. section (mm²) 0.2/2.5
Rated current In (A) 12
Wire data
Length to strip (mm) 7
1
2
3
L2
L1
400/460 V AC
400/460 V AC
1
3
1
2
3
+24 V DC
0 V
1
3
1
3
1
3
X3 CONNECTOR
PS-25B4
X4|X5|X6 CONNECTORS
PS-25B4
Phoenix 7.62 mm
Phoenix 5.00 mm
INFORMATION. In cases of micro-surges or total loss of mains power, this
module guarantees stable and maintained 24 V DC while the motors are
being stopped. This is an absolute must in order to comply with the EC
requirement for the machine.
