Fav 900
Engine / Injetion valves
Replacing Injection valve with needle Motion sensor
G
Repair
Fav 900 Chassis number 23/3001 and up
01/2000
2712 000002
G
a
3/3
Capitel Docu-No.
Index
Date Version
Page
Replacing Injection valve with needle Motion sensor
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule

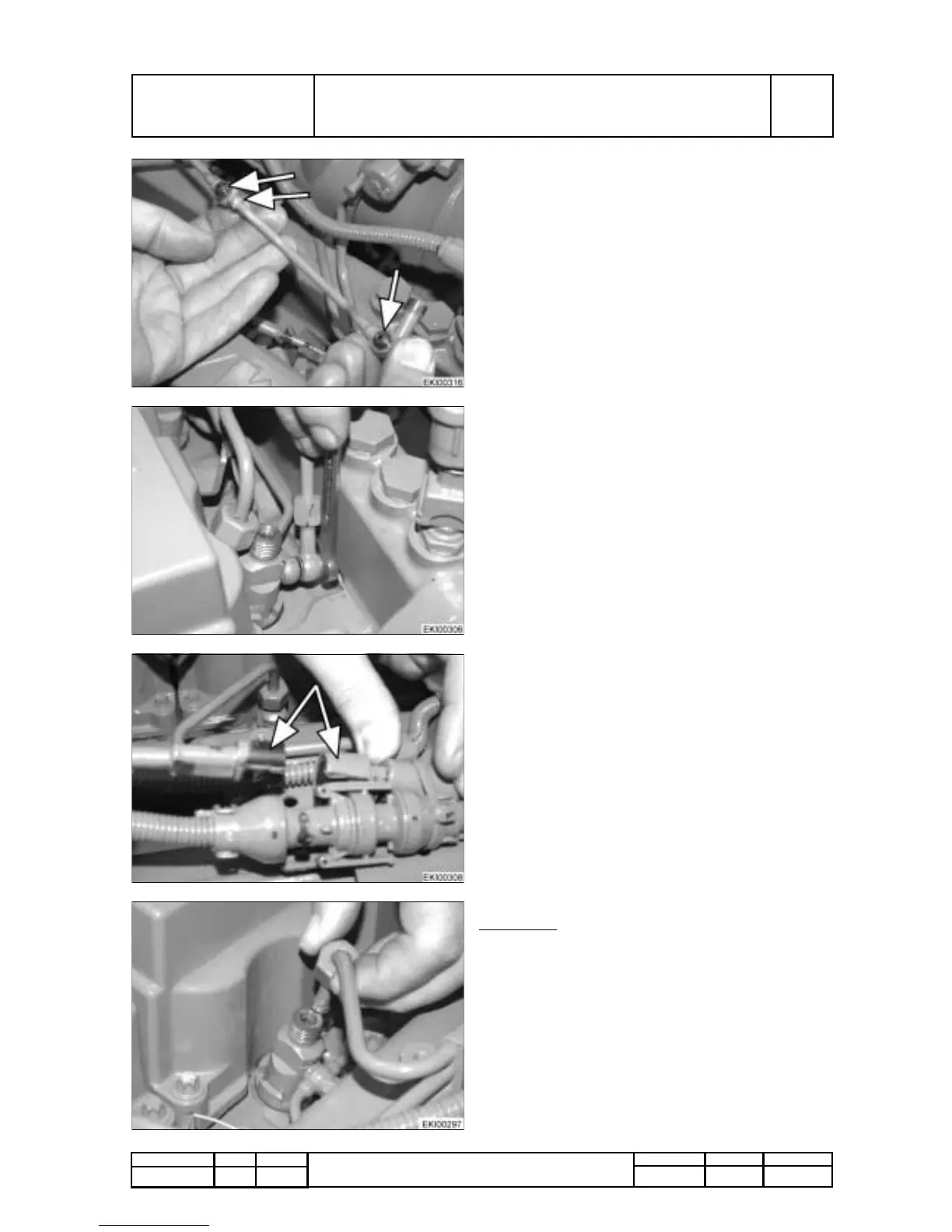

PMTAB_Picture
Put new "usit" gaskets on the hollow screw on
both sides of the return line .
PMTAB_Picture
Put return Linmes back into place.
PMTAB_Picture
Connect connector X173 ( Needle motion sensor
EDC ).
PMTAB_Picture
Put fuel line from injector into place.
Important:
Purge air from the fuel supply system using
the manual pump.
