Engine / Cylinder head
Removing and refitting turbocharger
G
Repair
Fav 900 chassis number 23/3001 and up
15.02.2001
2010 000004
G
a
2/2
Capitel Docu-No.
Index
Date Version
Page
Removing and refitting turbocharger
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture
Refitting the turbocharger
Check intake pipe and exhaust manifold for
eventual foreign objects.
Examine oil feed and return lines for eventual
damage, jamming and leaks.
Replace all gaskets.
Refitting the turbocharger occurs in the inversed
sequence as the removing
For refitting use new gaskets and new locking
nuts.
Before connecting oil feed line, fill bearing case
with clean engine oil.
Check all connection fot tightness and absence of
mecanical stress.

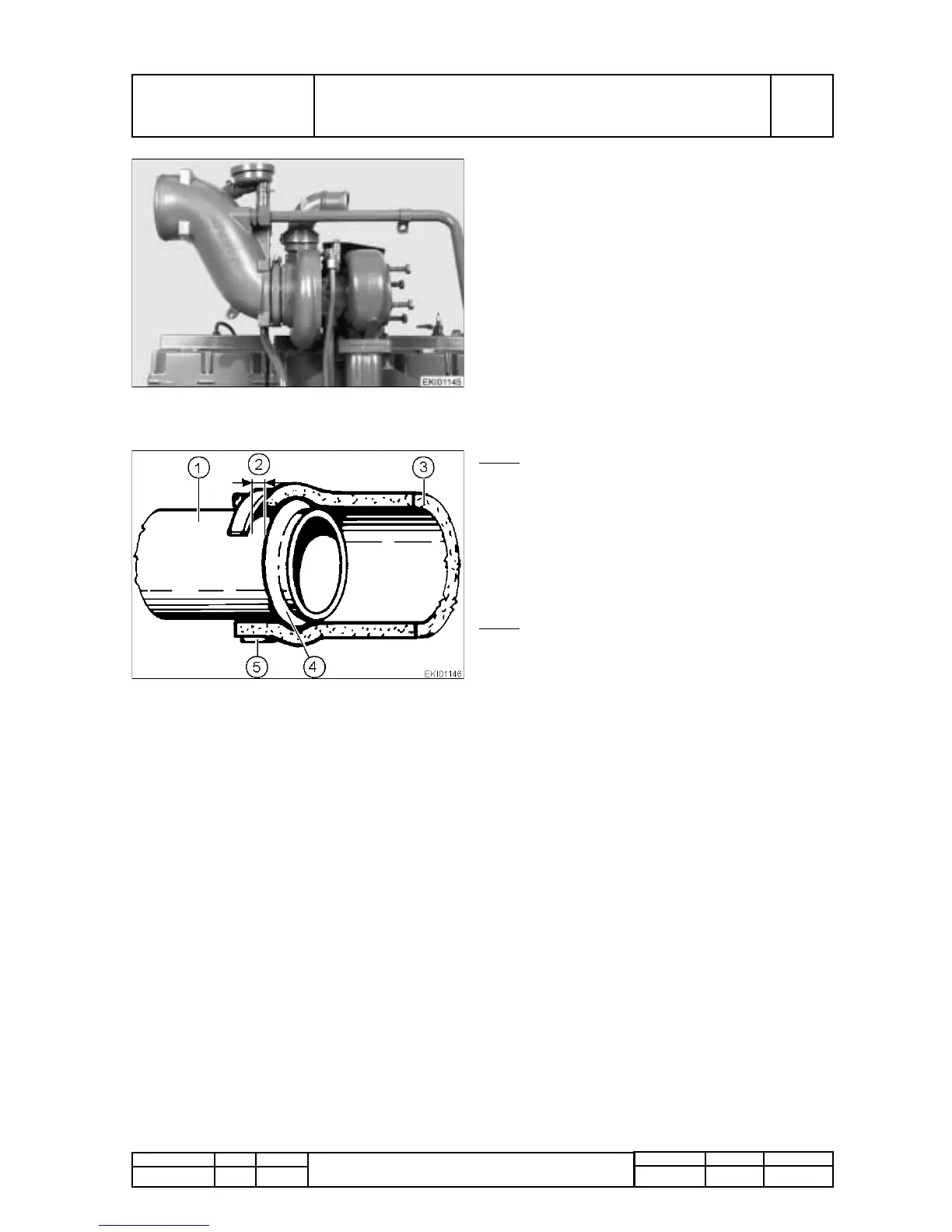

PMTAB_Picture
Note:
The clamped section of the hose must always
be behind the collar of the hose.
1. Pipe
2. Gap
3. Hose
4. Collar
5. Hose clip
Note:
Use only clean water as a lubricant.
