Fav 900
Engine / Short block
Removing and refitting the timing case.
G
Repair
Fav 900 chassis number 23/3001and up
20.2.2001
2210 000006
G
a
3/4
Capitel Docu-No.
Index
Date Version
Page

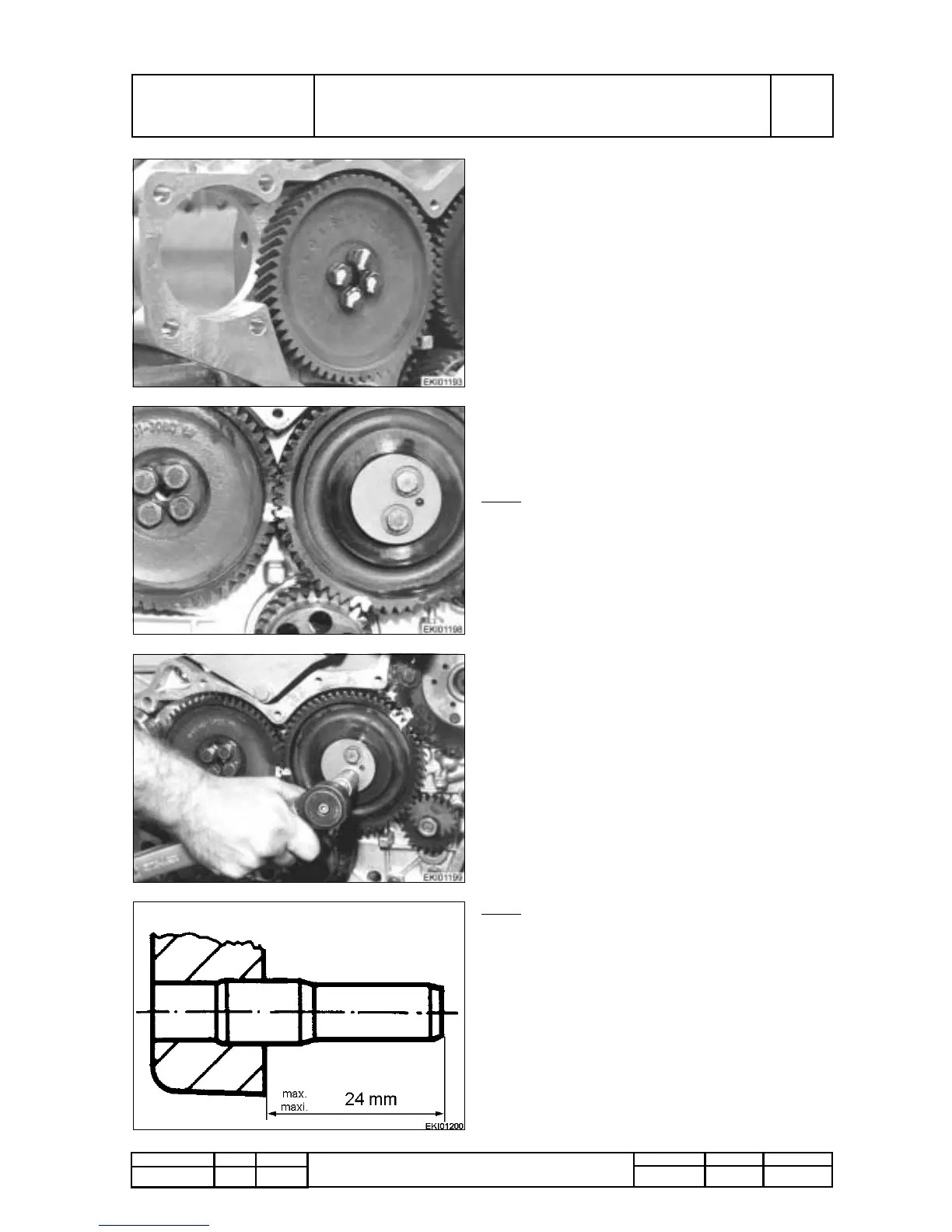

Removing and refitting the timing case.
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PM-Picturemodule
PMTAB_Picture
Refitting crankshaft timing gear
Slide crankshaft timing gear onto the centering
pin.
After fitting the intermediate gear tighten screws
at the specified torque.
PMTAB_Picture
Refitting intermediate gear
Position intermediate gear.
Align camshaft and crankshaft with appropriate
markings, insert intermediate gear.
Note:
Position of crankshaft timing gear in relation
to intermediate gear is marked with "*-*-1".
Position of camshaft timing gear in relation to
intermediate gear is marked with"2-2-2".
PMTAB_Picture
Fit thrust washer and insert screws .
Tighten screws of intermediate gear and camshaft
gear at specified torque.
Refit injection pump gear.
Refit injection pump
PMTAB_Picture
Note:
Replacement centering pin must be driven in
as far as possible; maximal projection is 24
mm. Shorten if necessary.
