Product Description
CHAPTER 1 Product Description
The Universal Digital Alarm Communicator/Transmitter (UDACT-F) may be used with the Fire•Lite MS-9200,
MS-9600 and Sensiscan 2000 FACPs (Fire Alarm Control Panels). The UDACT-F transmits system status to UL
listed Central Station Receivers via the public switched telephone network. The UDACT-F is compact in size and
may be mounted inside the host FACP or may mount externally in a separate enclosure. EIA-485 annunciator com-
munications bus and 24 volt (nominal) connections are required. The UDACT-F is capable of reporting 198 points or
56 zones when used with the MS-9200, 636 points or 99 zones when used with the MS-9600 and 56 zones when used
with the Sensiscan 2000.
1.1 Product Features
• Dual telephone lines
• Dual telephone line voltage detect
• UL recognized “Dialer Runaway” prevention
• Compact in size: 6.75" (17.145 cm) x 4.25" (10.795 cm)
• Built-in programmer
• Built-in four character red 7-segment LED display
• Manual test report function
• Manual master transmission clear function
• Mounts either inside control panel or in separate ABS-8RF or UBS-1F enclosure
• Communicates vital system status including:
✓ Independent zone/point alarm
✓ Independent zone/point trouble
✓ Independent zone/point supervisory
✓ AC (mains) power loss - programmable
✓ Low battery and earth fault
✓ System off-normal
✓ 12 or 24 hour test signal
✓ Abnormal test signal per new UL requirements
✓ Annunciation of UDACT-F troubles, including loss of phone lines, communication failure with either
Central Station and total communication failure
• Troubleshoot Mode converts keypad to DTMF touchpad
• Individual LEDs for:
✓ Power
✓ EIA-485 loss
✓ Manual Test
✓ Kissoff
✓ Comm Fail
✓ Primary Line Seize
✓ Secondary Line Seize
• Open collector relay driver for Total Communication Failure or UDACT-F trouble
• Real Time Clock
• Extensive transient protection
• Simple EIA-485 interface to host panel

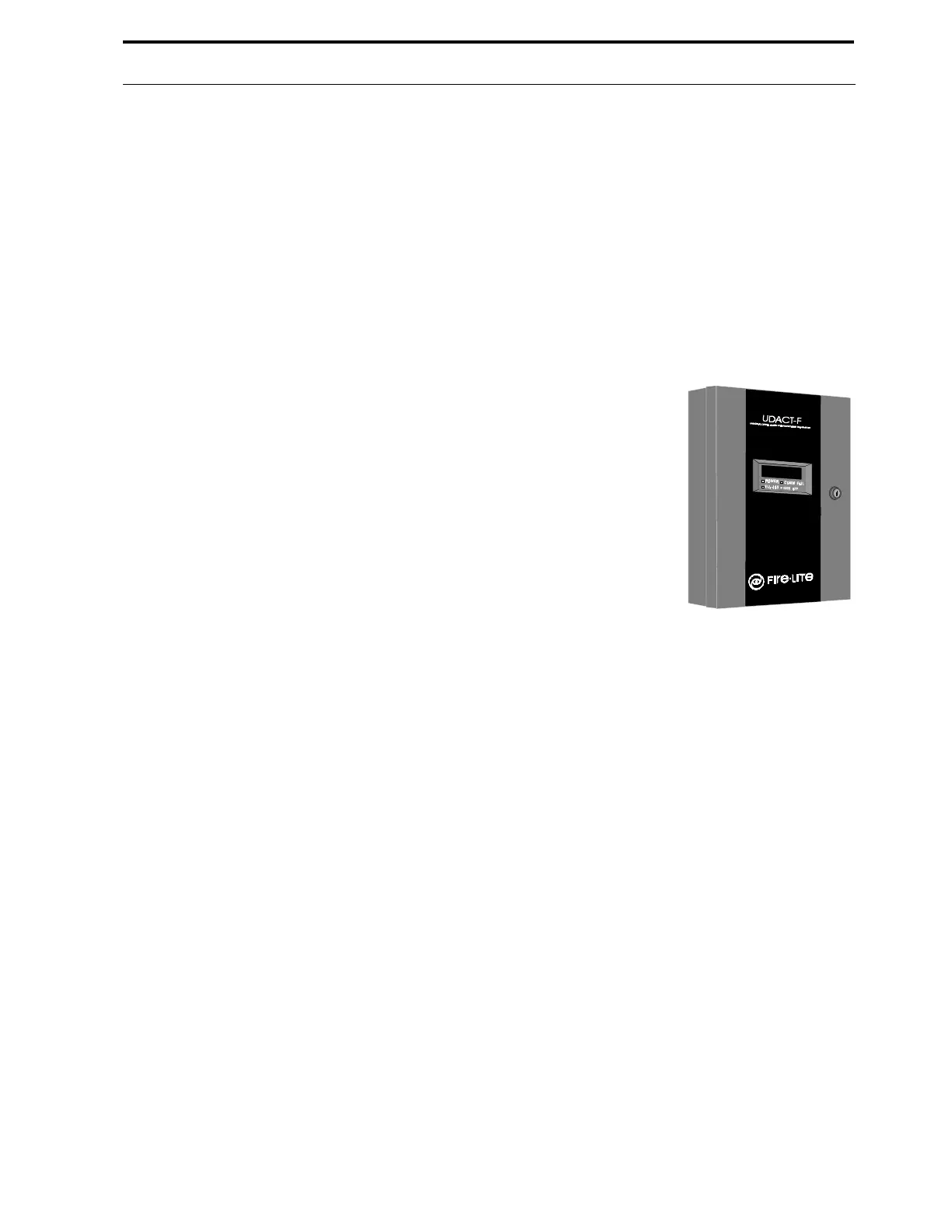

UBS-1F
