Controls and Indicators
1.2 Controls and Indicators
Front Panel Switches
CLEAR Digits 0 - 9
TEST A
MODE B
Up Arrow C
Down Arrow D
1st EVENT E
ENTER/STORE F
Displays
• EIA-485 - yellow LED
• COMM. FAIL - yellow LED
• KISS OFF - green LED
• POWER - green LED
• Four 7-Segment Displays - red
• Primary Phone Line Active - red LED
• Secondary Phone Line Active - red LED
• TEST - green LED
1.3 Compatible Panels
The UDACT-F has been designed to be compatible with the following Fire•Lite control panels:
• Sensiscan 2000
• MS-9200
• MS-9600
1.4 Digital Communicator
Two modular phone jacks allow easy connection to telephone lines. Modular jacks are labeled PH1 and PH2 for the
Primary and Secondary phone lines. Telephone line 'Primary and Secondary Active' red LEDs are provided as well as
a green 'Kissoff' LED. The integral digital communicator provides the following functions:
• Line Seizure - takes control of the phone lines disconnecting any premises phones
• Off/On Hook - perform on and off-hook status to the phone lines
• Listen for dial tone - 440 hertz tone typical in most networks
• Dialing the Central Station(s) number - default is Touch-Tone
®
, programmable to rotary
• For tone burst or touchtone type formats: Discern proper 'Ack' and 'Kissoff' tone(s) - the frequency and time
duration of the tone(s) varies with the transmission format. The UDACT-F will adjust accordingly.
• Communicate in the following formats (refer to “Compatible Receivers” on page 51, for a list of compatible
receivers):
✓ 6 Tone Burst Types: 20 pps (3+1 Standard & Express, 4+1 Standard & Express, 4+2 Standard &
Express)
✓ 3 Touchtone Types: (4+1 Ademco Express, 4+2 Ademco Express, Ademco Contact ID)

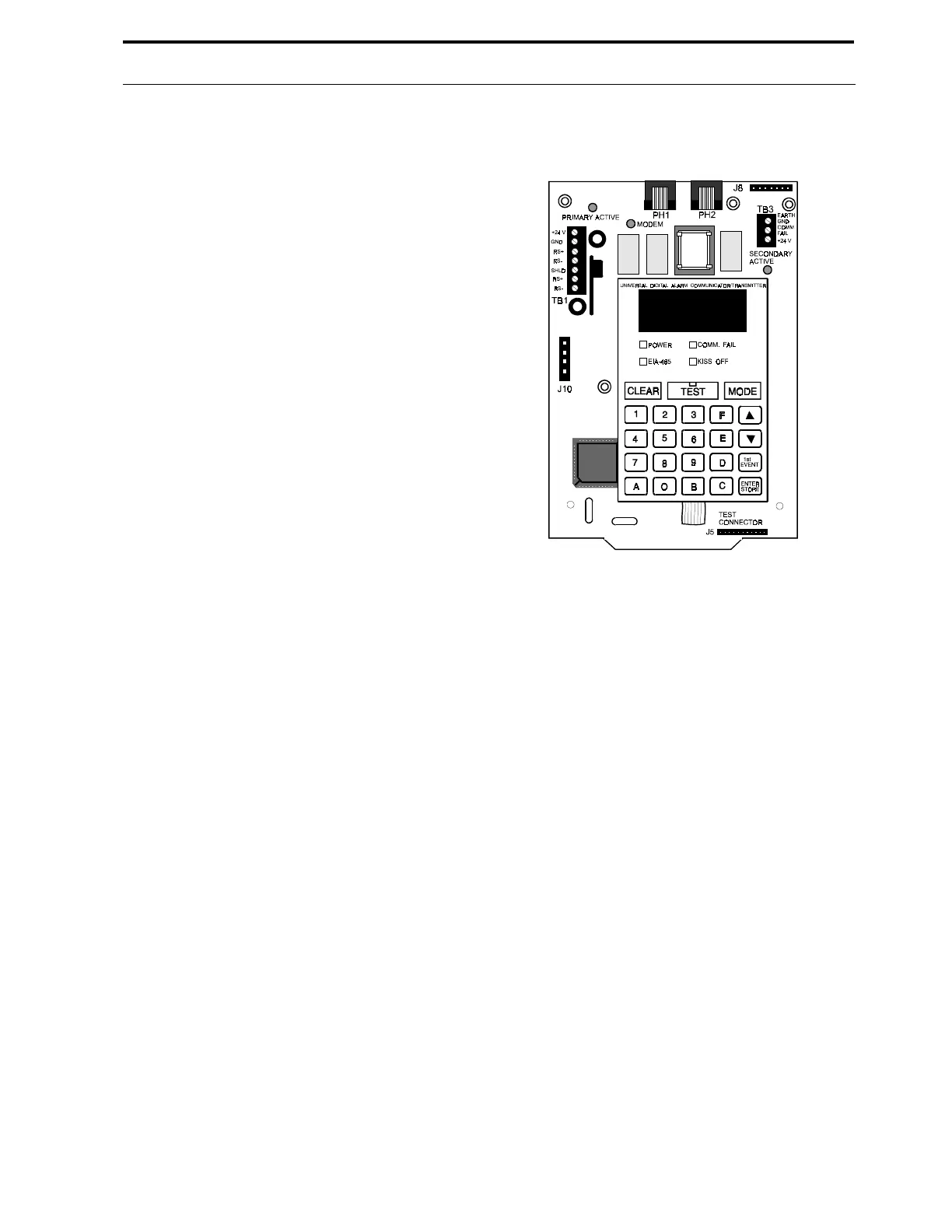

FIGURE 1-2:
Controls and Indicators
