4 PRIOR TO INSTALLATION
Installation guide, template
and user instructions
Unpacking and handling
z
Check packaging and dishwasher for signs of transport damage. If the dishwasher is in any way damaged, do not install it. Contact the dealer the dishwasher was purchased from.
z
Disposal of packaging: some of the packaging is recyclable. Check the symbols and labels and recycle if possible.
z
Always be careful with the hoses and power cord at the back of the dishwasher. Careful handling will prevent damage and malfunction from squashing, kinking or cuts.
z
While installing the dishwasher, check the drain hose is not restricted or kinked.
Connections and services
z
Check that the power cord is long enough to reach the outlet. If it isn’t, it must be replaced by a Fisher & Paykel authorised technician. Extension cords or multi-outlet power boards should not
be used to connect the dishwasher to the power supply.
z
Check that the hoses are long enough to reach the services. If a hose needs extending, ensure that the extension hose is new and of equal quality and diameter to the one already fitted.
Note: the drain hose should not be longer than 4 m, as a longer drain hose will cause reduced performance.
z
The dishwasher should not be connected to a water system where the temperature exceeds 60
o
C, or where there is no temperature control, e.g. wetback system, unless the system is fitted with
a suitable tempering valve.
z
The dishwasher must not be connected to an undersink high-pressure “push-through” type hot water system, as damage to the system will result.
3 TECHNICAL DATA
Technical data
Check the electrical data on the rating label (located on the left-hand side of the
dishwasher’s stainless steel inner door). Should the data on the rating label be different
to those specified below, consider those on the rating label as correct.
Anti-flood protection
This dishwasher has anti-flood protection, which will shut down the incoming water
supply in the event of a leak within the machine.
DW60UC2 models DW60UC6 models
Capacity 15 place settings 15 place settings
Mains water
pressure
0.03-1 MPa
(= 0.3-10 bar)
0.03-1 MPa
(= 0.3-10 bar)
Power voltage 220-240 V (50 Hz) 220-240 V (50Hz)
Maximum current
Draw
10 A 10 A
Power
consumption
1720-2050 W 1720-2050 W

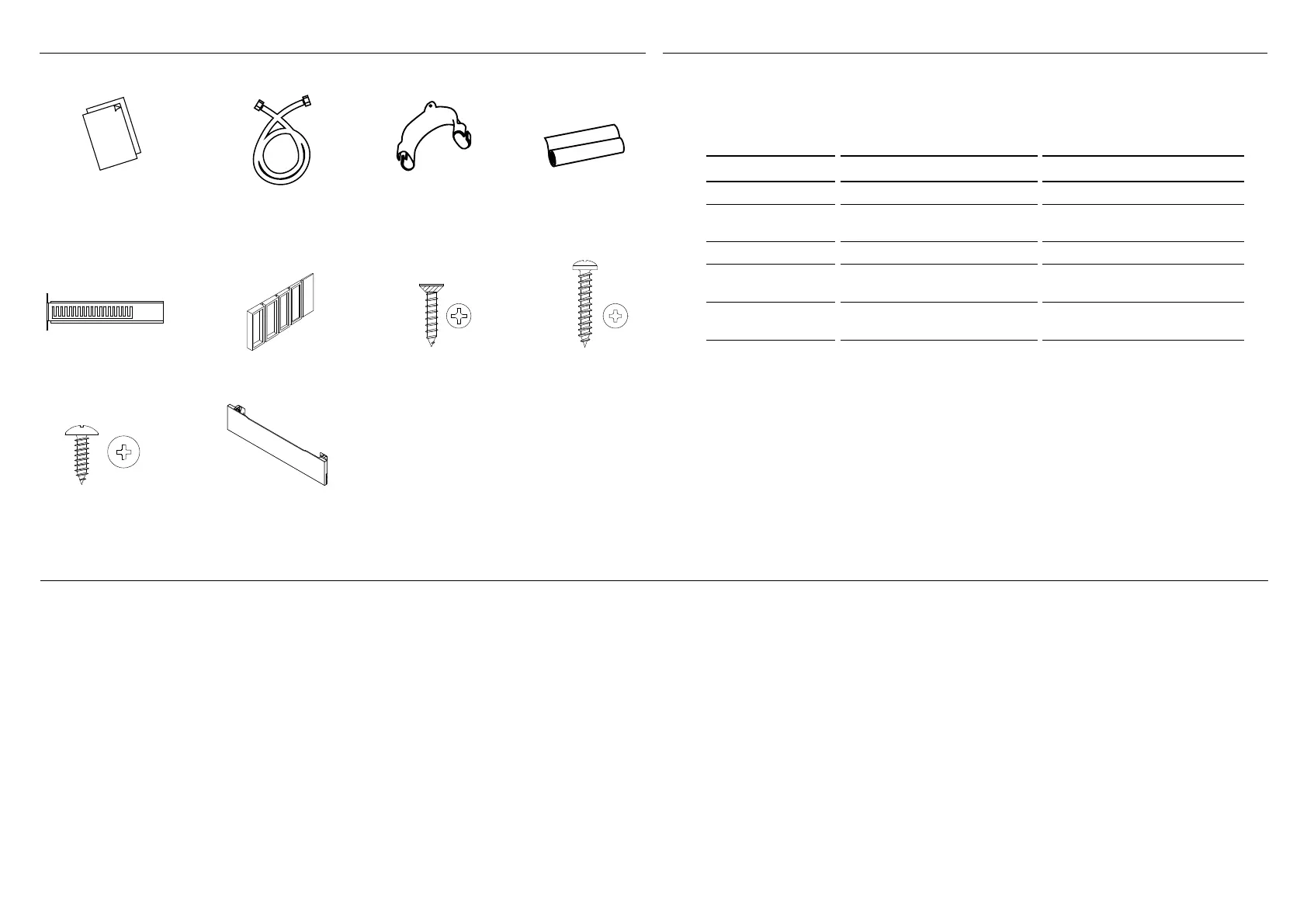

Brackets for toekick (2)
Pre-finished toekick (1)
Drain hose support (1)
Ø3.5 x 12mm screws (4)
Ø4 x 13mm screws (4)
Ø4 x25mm screws (4)
Moisture protection
tape (1)
Plastic spacers (2)
Inlet hose (1)
2 PARTS SUPPLIED

Fisher & Paykel DW60UC6B Specifications

General

Brand	Fisher & Paykel
Model	DW60UC6B
Category	Dishwasher
Language	English
