7 CAVITY PREPARATION
IMPORTANT!
The power outlet must be
located in a cabinet adjacent
to the dishwasher cavity.
z
Services can be located
either side of the
dishwasher.
z
Ensure that any services
hole has a minimum
diameter of 50mm.
Positioning and stabilising the dishwasher
z
Do not lift the dishwasher from the door handle.
z
As you push product in, pull through hoses and cord, ensuring they don’t get kinked or twisted.
z
Plastic spacers can now be inserted at the side of the dishwasher next to the hinge to improve stability -
see step 11 for details on fitting spacers
z
After sliding the dishwasher into position, adjust back foot with a hex key.
The front feet can be adjusted manually also.
z
We recommend that you adjust the feet so that the dishwasher sits securely under the bench top so that
it doesn’t tip.
Dia. 50mm

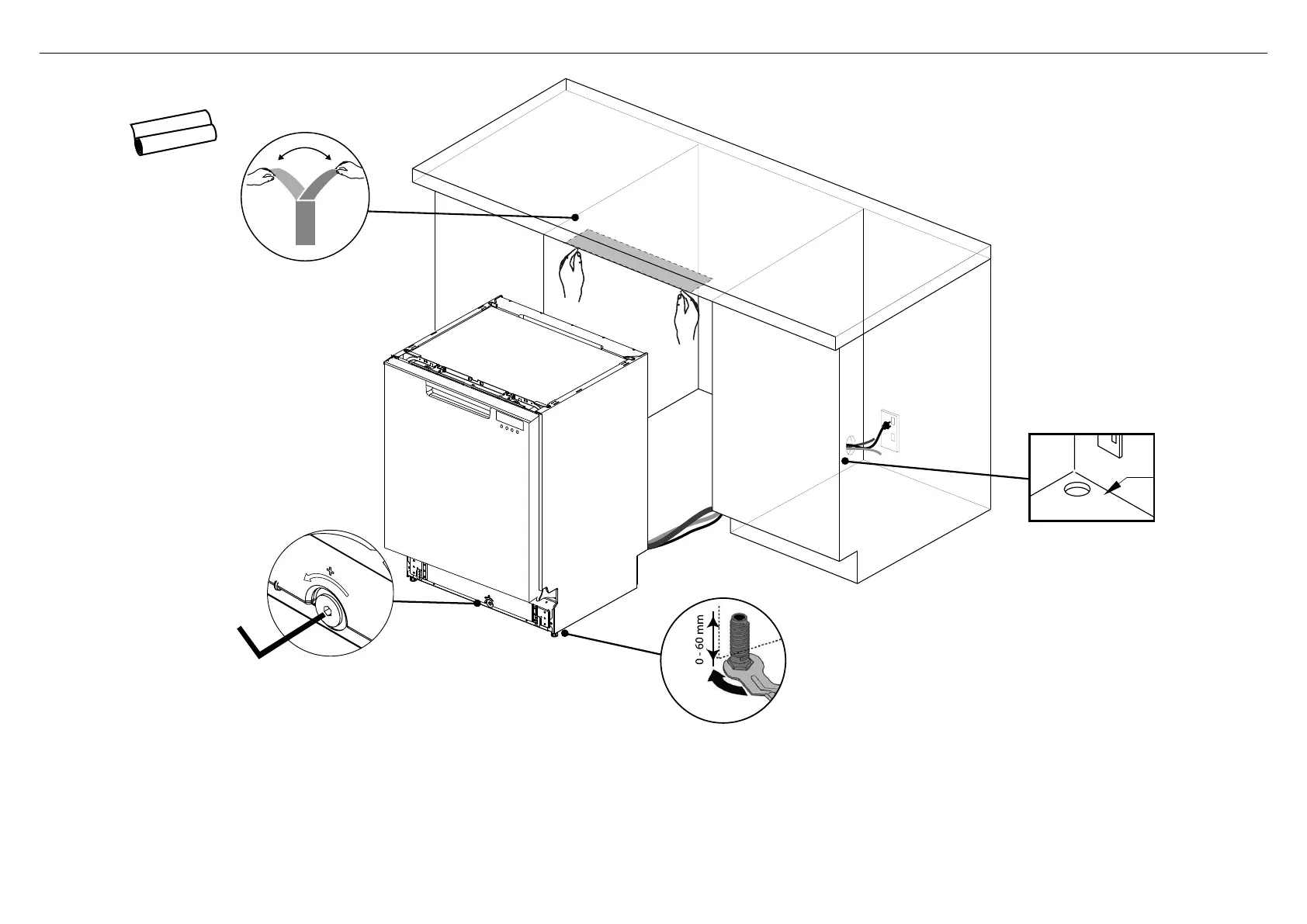

Apply moisture protection tape
Apply moisture protection tape to
the underside of the benchtop.
Levelling the dishwasher
IMPORTANT!
To prevent possible steam damage to the cabinetry, ensure
that any bare wood surrounding the dishwasher is sealed
with an oil-based paint or moisture-proof polyurethane.
1
3
4
2
Back foot of the
dishwasher can be
adjusted by using
a hex key.
Front feet of dishwasher
can be adjusted as
shown.
