4.2 Control Button Descriptions
Long press to power ON or OFF. Short press to access the menu
system.
Return button. Back up/exit in the menu system.
Scroll up in the menu system.
Scroll down in the menu system.
Press to switch ON the Flashlight, press again to dim the light,
and press a third time to switch the light OFF.
TRIGGER
Pull and release to capture images and to exit the menu system.

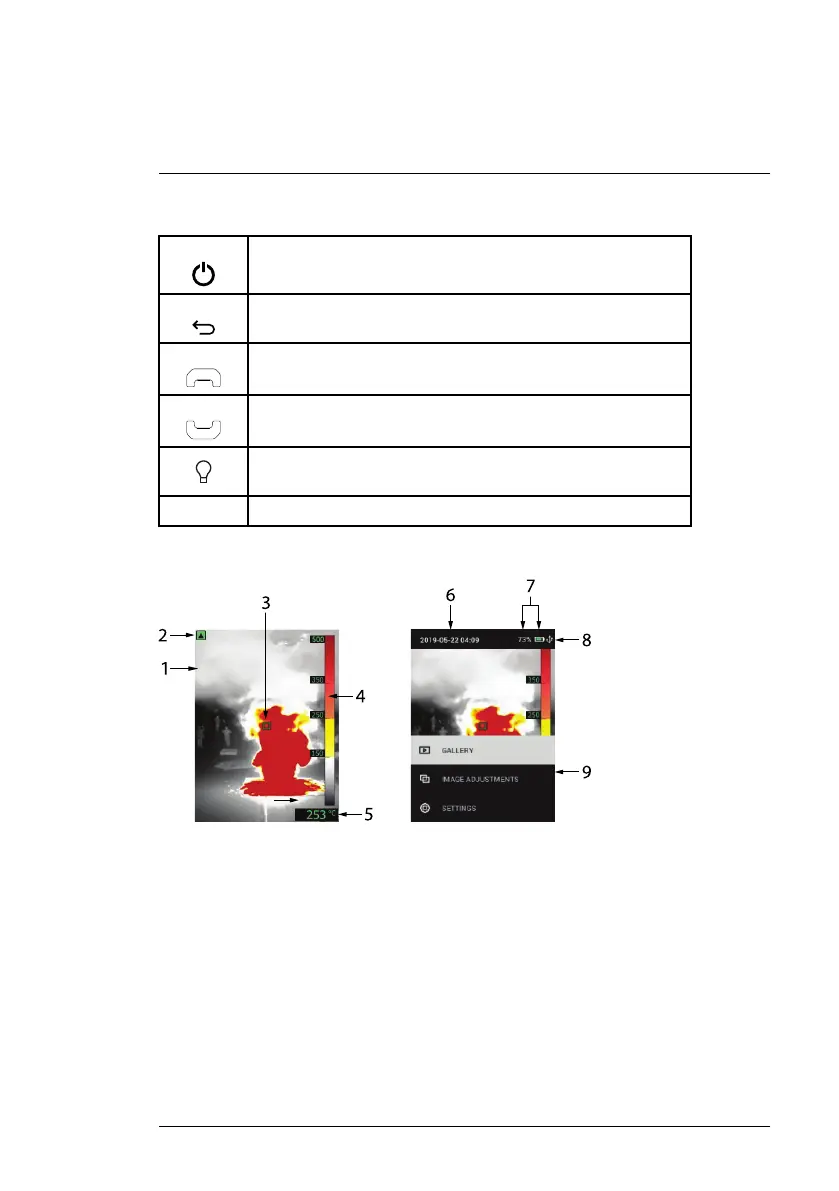

4.3 Display Description
Figure 4.2 K1 Display Description
1. Thermal MSX® Camera image
2. Low Sensitivity range indicator (see Temperature Scale menu)
3. Center spot for targeting measurement areas
4. Temperature range bar graph
5. Temperature of targeted spot
6. Date and Time
7. Battery status indicators
8. USB icon (when USB connection active)
9. Main menu
