427-0075-01-12 Revision 140 October 2019 9
This document does not contain any export-controlled information.
PT-Series HD Camera Installation
PT-Series HD cameras must be mounted upright on top of the mounting surface, with the base
below the camera. The unit should not be hung upside down.
1.5.3 Installation of Camera and Galvanic Isolation Kit
Important Safeguards and Warnings
• Installation and servicing should be done by qualified installation and service personnel only.
• Installation should be done according to all local and national electrical and mechanical codes,
using only approved materials.
Before drilling into walls or ceilings for mounting the camera, verify that areas behind these positions
do not contain electrical or other utility service lines. Serious injury or death may result from failure
to heed this warning.

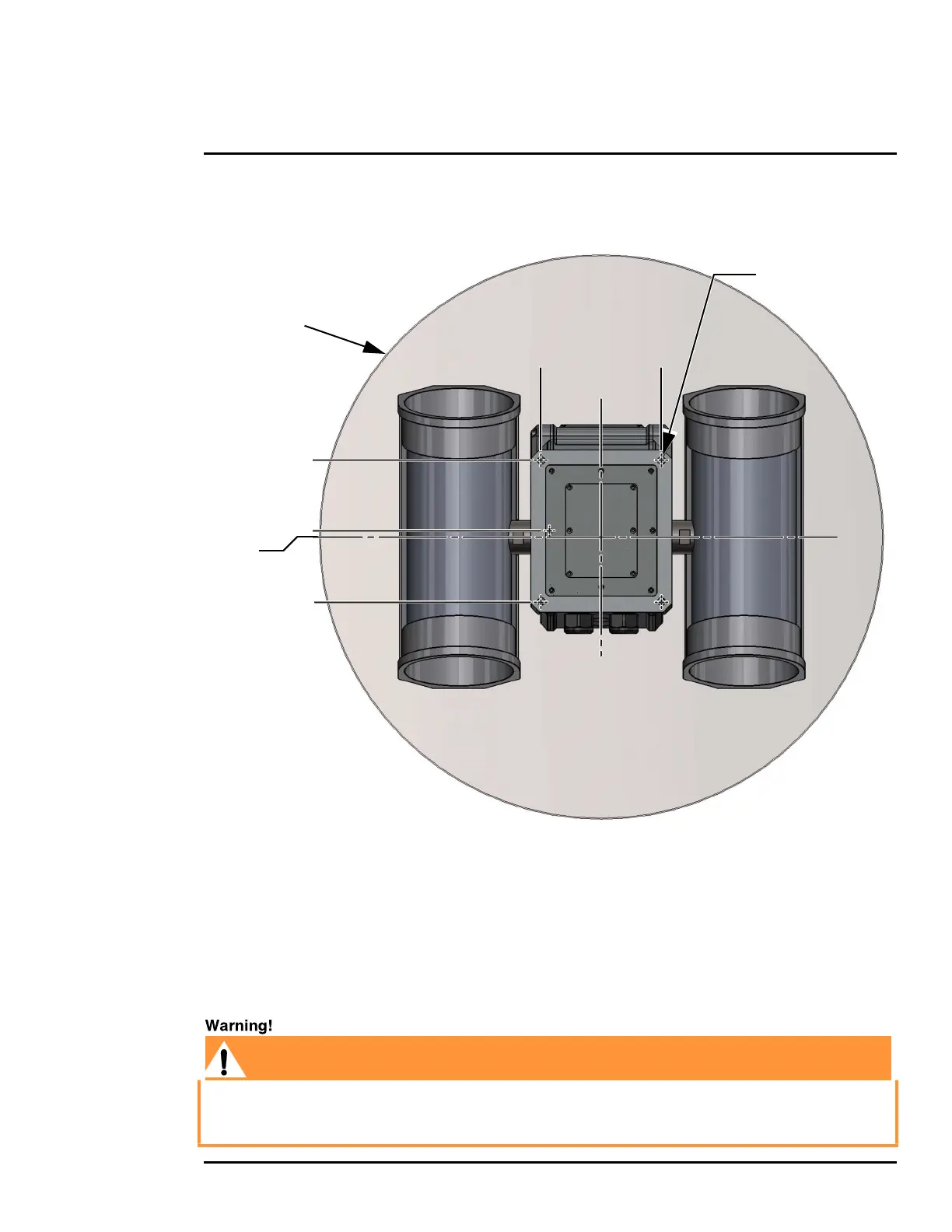

Figure 1-2: PT-Series HD Camera Mounting
Not to scale
0
0.295
All dimensions in inches
0
2X 3.17 ± .02
2X 3.21 ± .02
2X 2.72 ± .02
2X 2.72 ± .02
4X Ø.354 THRU
Pan Axis
Tilt Axis
Pan volume
minimum Ø25.5
To Next Page
