787
Users Manual
30
Replacing the Battery
! Warning
To avoid electrical shock, remove test leads
from the meter before you open the battery
door.
Close and latch the battery door before you
use the meter.
Remove test leads from the meter before you open the
battery door.
Replace the battery as follows. Refer to Figure 10. Use an
alkaline 9V battery, type ANSI/NEDA 1604A or IEC
6LR61.
1. Remove the test leads and set the rotary switch to
OFF.
2. With a standard blade hand screwdriver, turn each
battery door screw counterclockwise so that the slot is
parallel with the screw picture molded into the case.
3. Lift off the battery door.
ee007f.eps

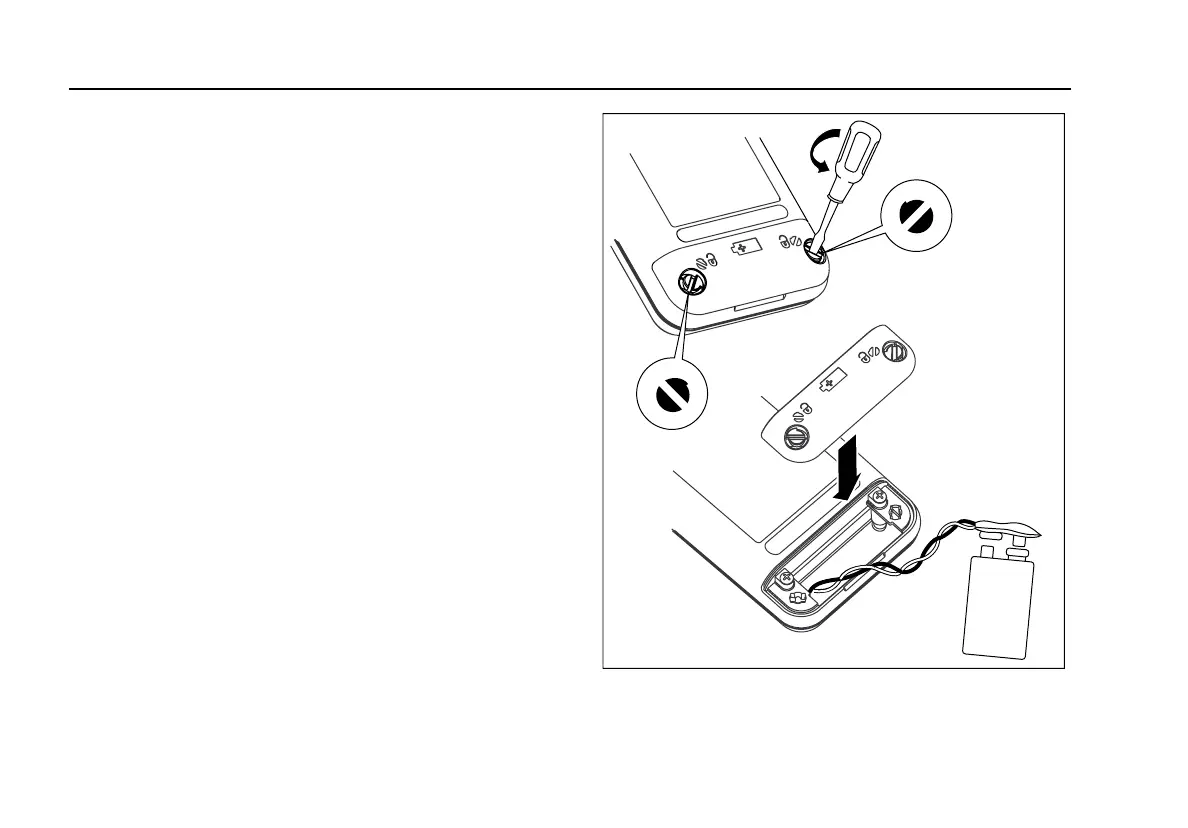

Figure 10. Replacing the Battery
