Installation (Steel T-Rail)

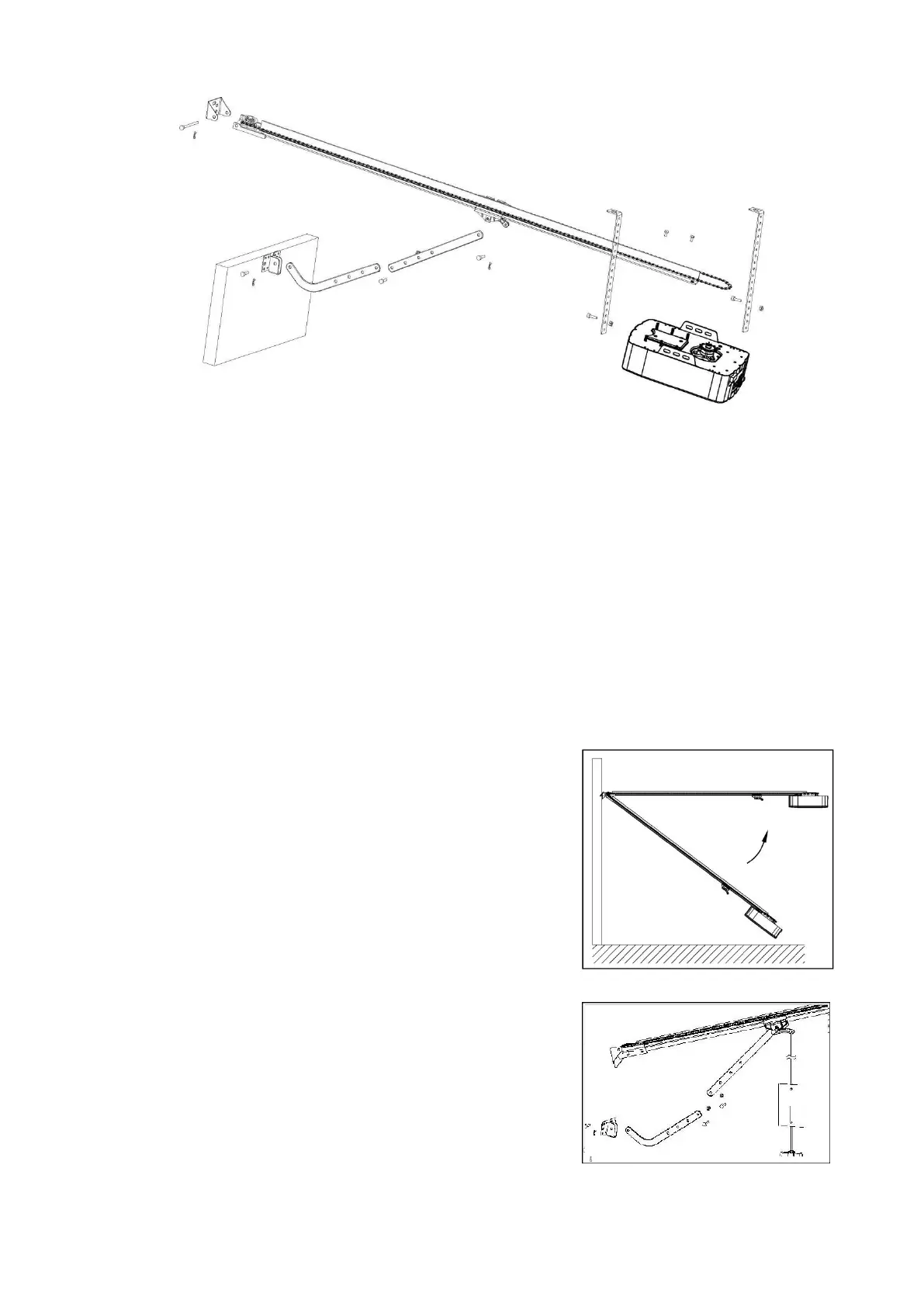

Figure 17
STEP1 (Fig. 17)
Attach the opener head to the steel T-Rail.
STEP2 (Fig. 17)
Place the steel T-rail and opener head assembly centrally on the garage floor, with the open
head furthest away from the door. Lift the front of the rail up to the door bracket. Insert the
pivot pin and secure it with the split pin supplied.
STEP3 (Fig. 17, Fig.18 )
Lift and support the opener head (with a ladder) so it is
positioned centrally and level. Fix the opener and track on
ceiling by 2 mounting brackets.
WARNING: Do not allow children around the door,
opener or supporting ladder serious injury and/or
damage may result from failure to follow this warning.
STEP4 (Fig. 17, Fig.19 )
Connect the straight arm to the bent arm with the bolt.
Position and bolt the arms to the top edge of the door using
the bolt supplied.
STEP5
Lift the garage door until the trolley locks into the drive
chain.
Then, ready to program the openers.
Figure 18
Figure 19
