Force FS 1000 User Manual

4
INSTALLATION INSTRUCTIONS

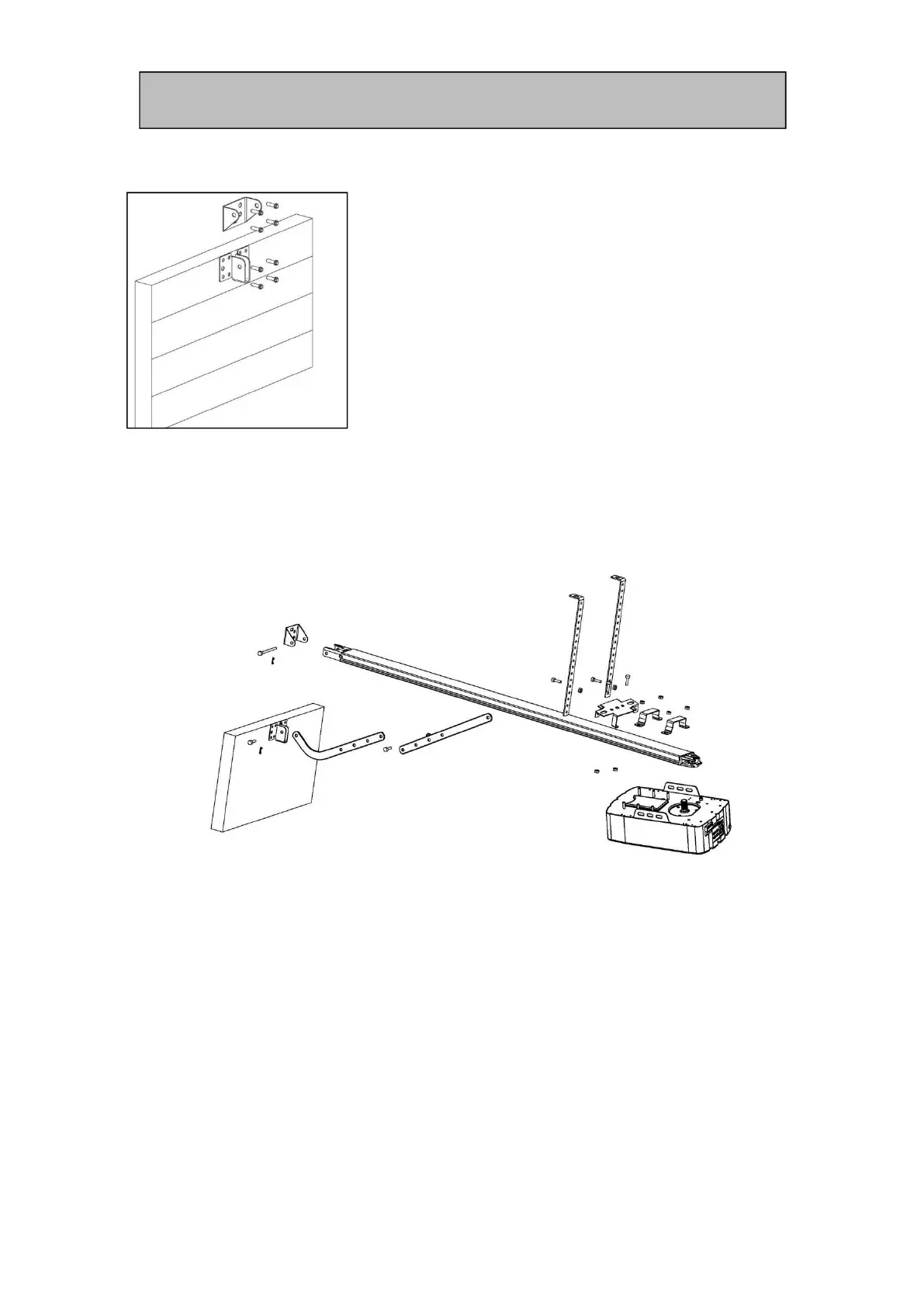

Mount Wall Bracket and Door Bracket (Fig2)
Wall Bracket - Close the garage door and measure the
garage door width at the top and mark the center. Locate and
mount the wall bracket 2cm-15cm above the door on the
inside wall.
(Depend on the actual installation space).
Door Bracket – Fix the door bracket to a structural part of the
door as close to the top edge as possible.
Figure 2
Installation (Steel C-Rail)
Figure 3
STEP1 (Fig.3)
Attach the opener head to the steel track. Assembly the 2 “U” Hanging brackets
with 6mm nuts supplied.
STEP2 (Fig.3)
Place the steel track and opener head assembly centrally on the garage floor, with the open
head furthest away from the door. Lift the front of the track up to the door bracket. Insert the
pivot pin and secure it with the split pin supplied.

Force FS 1000 Specifications

General

Brand	Force
Model	FS 1000
Category	Garage Door Opener
Language	English
