4. Lift the outer side of the headlamp and
remove it.

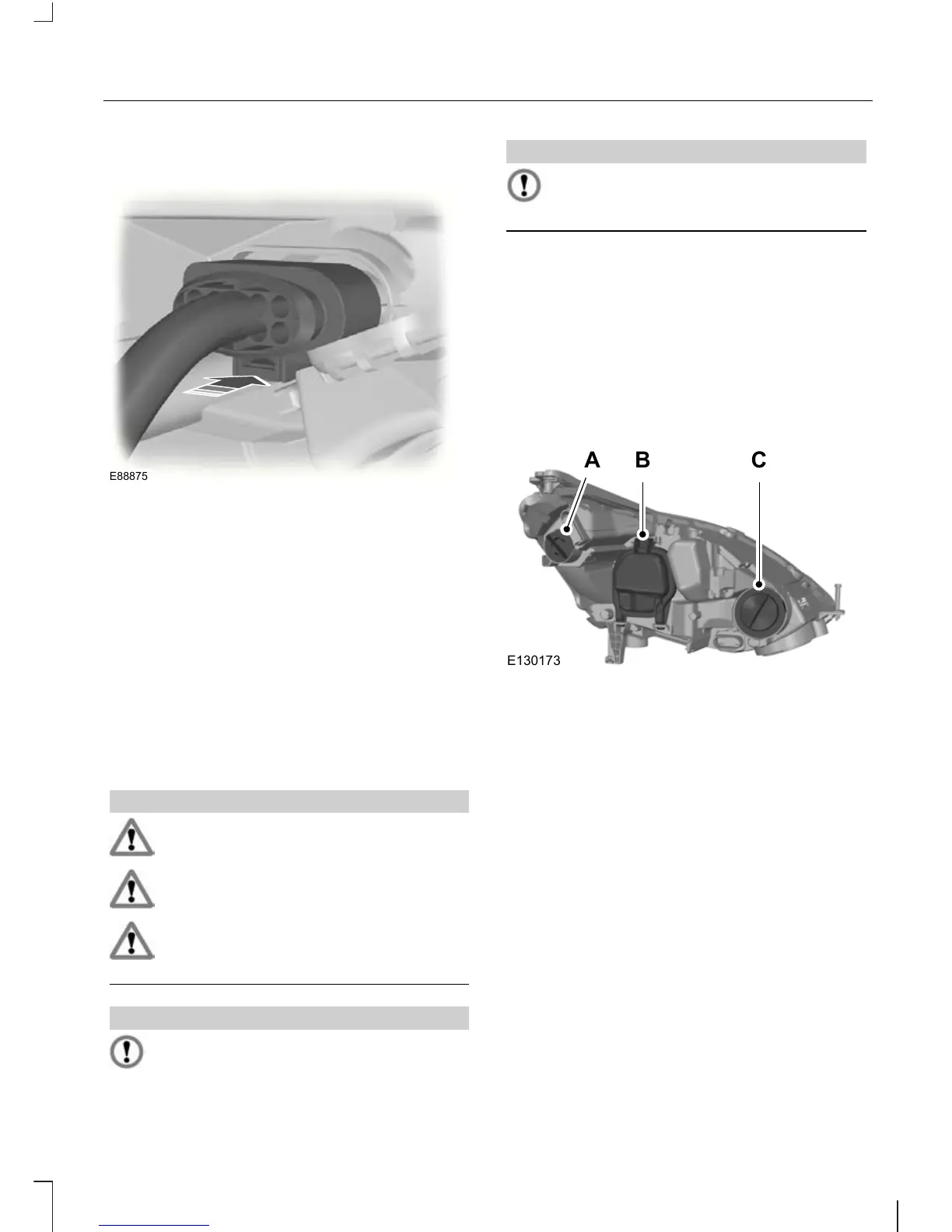

E88875
5. Disconnect the electrical connector.
Note: When fitting the headlamp, make
sure that you reconnect the electrical
connector properly.
Note: When fitting the headlamp, make
sure that you fully engage the headlamp
in the lower fixing point.
Note: When fitting the headlamp, make
sure that the screw is located in the
headlamp moulding before you install it.
CHANGING A BULB
WARNINGS
Switch the lights and the ignition off.
Let the bulb cool down before
removing it.
Have Xenon bulbs changed by a
properly trained technician. There is
a risk of electric shock.
CAUTIONS
Do not touch the glass of the bulb.
CAUTIONS
Only fit bulbs of the correct
specification. See Bulb
specification chart (page 70).
Note: The following instructions describe
how to remove the bulbs. Fit
replacements in the reverse order unless
otherwise stated.
Headlamp
Note: Remove the covers to gain access
to the bulbs.
A B C
E130173
Direction indicatorA
Headlamp main beamB
Headlamp dipped beamC
Direction indicator
1. Remove the headlamp. See
Removing a headlamp (page 62).
63
Lighting
