FUSE SPECIFICATION CHART

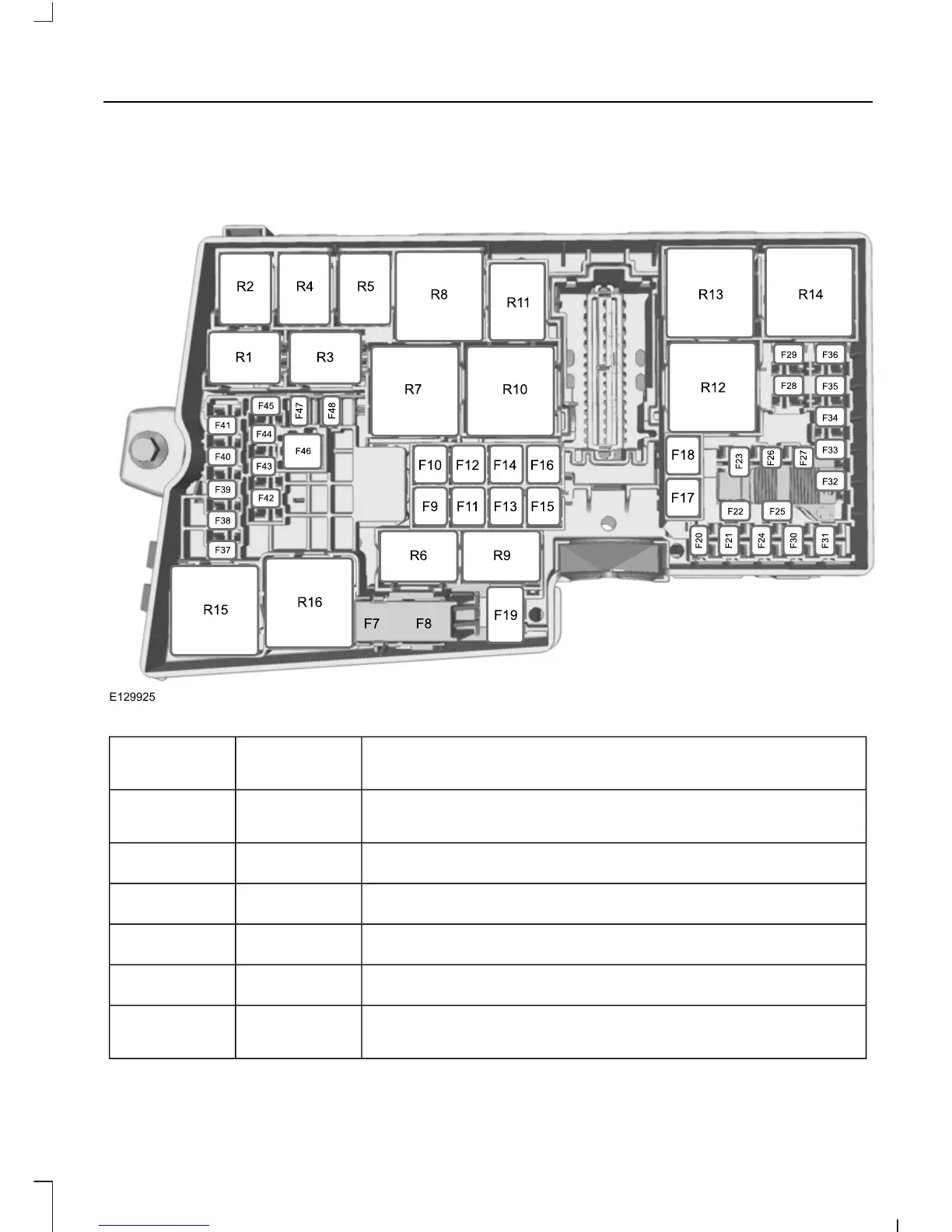

Engine Compartment Fuse Box

E129925

Circuits protected

Ampere

rating

Fuse

Anti-lock Braking System pump.

40A

Traction control valve.

30A

Heated rear window.

30A

Heater blower motor.

40A

F10

Start-stop module.

30A

F11

Engine management systems.

30A

F12

Exhaust gas re-circulation relay.

201
