Ford 2016 FOCUS User Manual

E133215
2
2
4
3

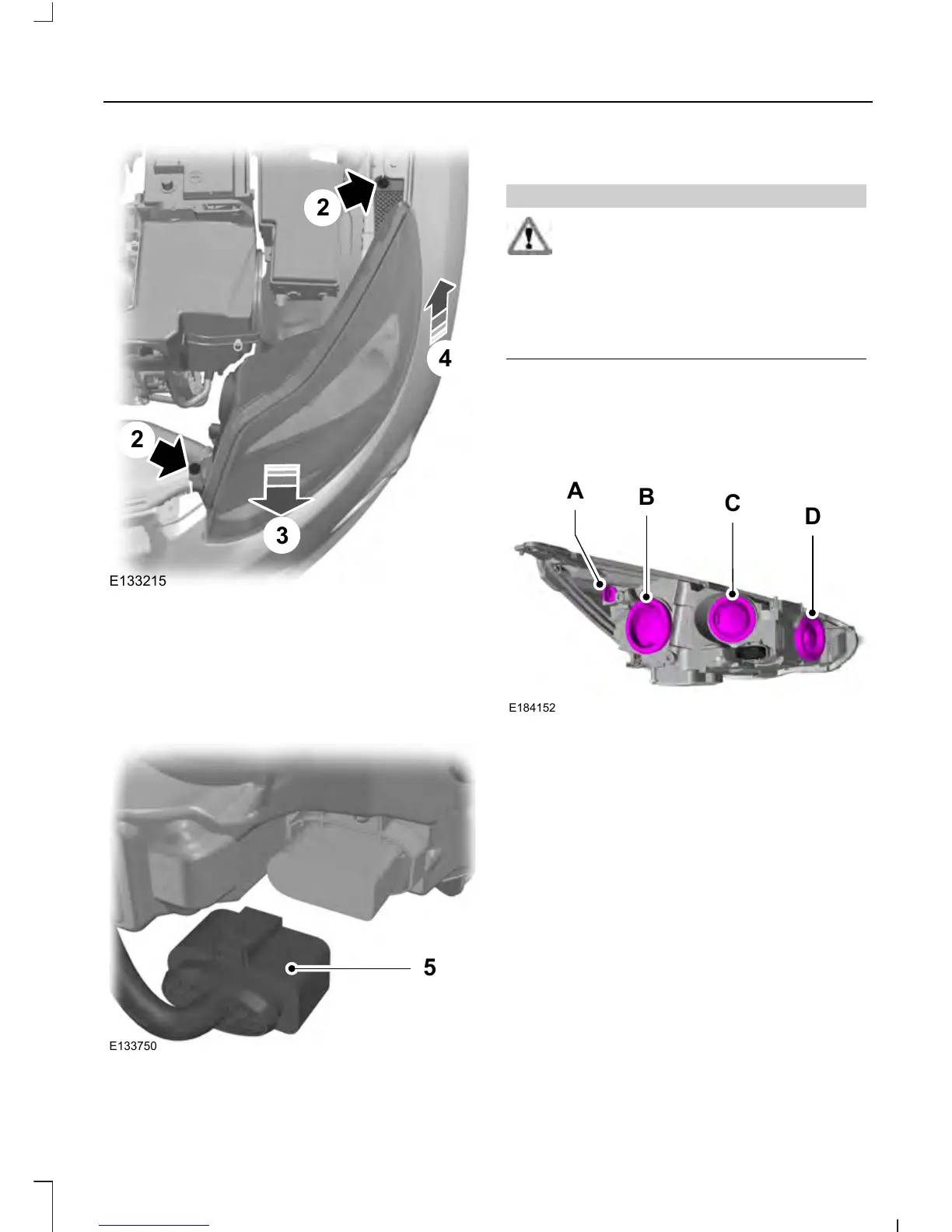

2. Remove the screws.
3. Pull the headlamp as far as possible
towards the front of the vehicle to
disengage it from the lower fixing point.
4. Lift the outer side of the headlamp and
remove it.
E133750
5
5. Disconnect the electrical connector.
CHANGING A BULB
WARNING
Handle a halogen headlamp bulb
carefully and keep out of children’s
reach. Grasp the bulb by only its
plastic base and do not touch the glass.
The oil from your hand could cause the
bulb to break the next time the headlamps
are operated.
Note: If you accidently touch the bulb, you
should clean it with rubbing alcohol.
Headlamp
E184152
B
A
C
D
Side marker bulb.A.
Low beam headlamp bulb.B.
High beam headlamp bulb.C.
Direction indicator bulb.
Cornering lamp bulb.
D.
Headlamp Low Beam
1. Remove the headlamp. See
Removing a Headlamp (page 224).
225
Focus (CDH) Canada/United States of America, enUSA, First Printing
Maintenance
