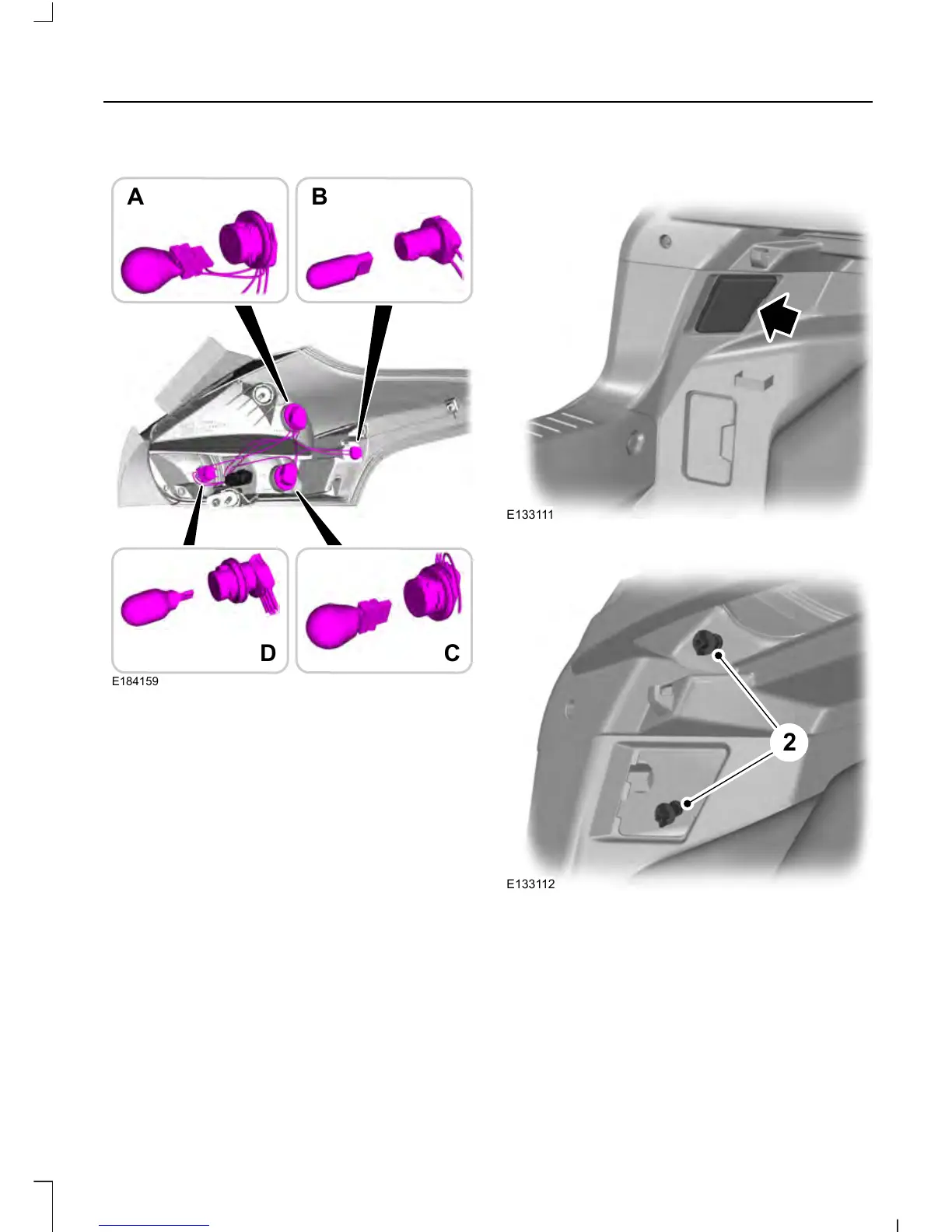

Rear Lamps - 5 Door
D
A B
E184159
C
Brake and rear lamp bulb.A.
Side marker lamp bulb.B.
Direction indicator bulb.C.
Reverse lamp bulb.D.
Brake Lamp, Rear Lamp and Direction
Indicator
E133111
1. Carefully remove the cover.
E133112
2
2. Remove the wing nuts and detach the
clip.
3. Remove the lamp.
229
Focus (CDH) Canada/United States of America, enUSA, First Printing
Maintenance
