E193263

4. Open the hood. Support the hood with

the strut.

Closing the Hood

1. Remove the hood strut from the catch

and secure it correctly after use.

2. Lower the hood and allow it to drop

under its own weight for the last

8–12 in (20–30 cm).

Note: Make sure that the hood is correctly

closed.

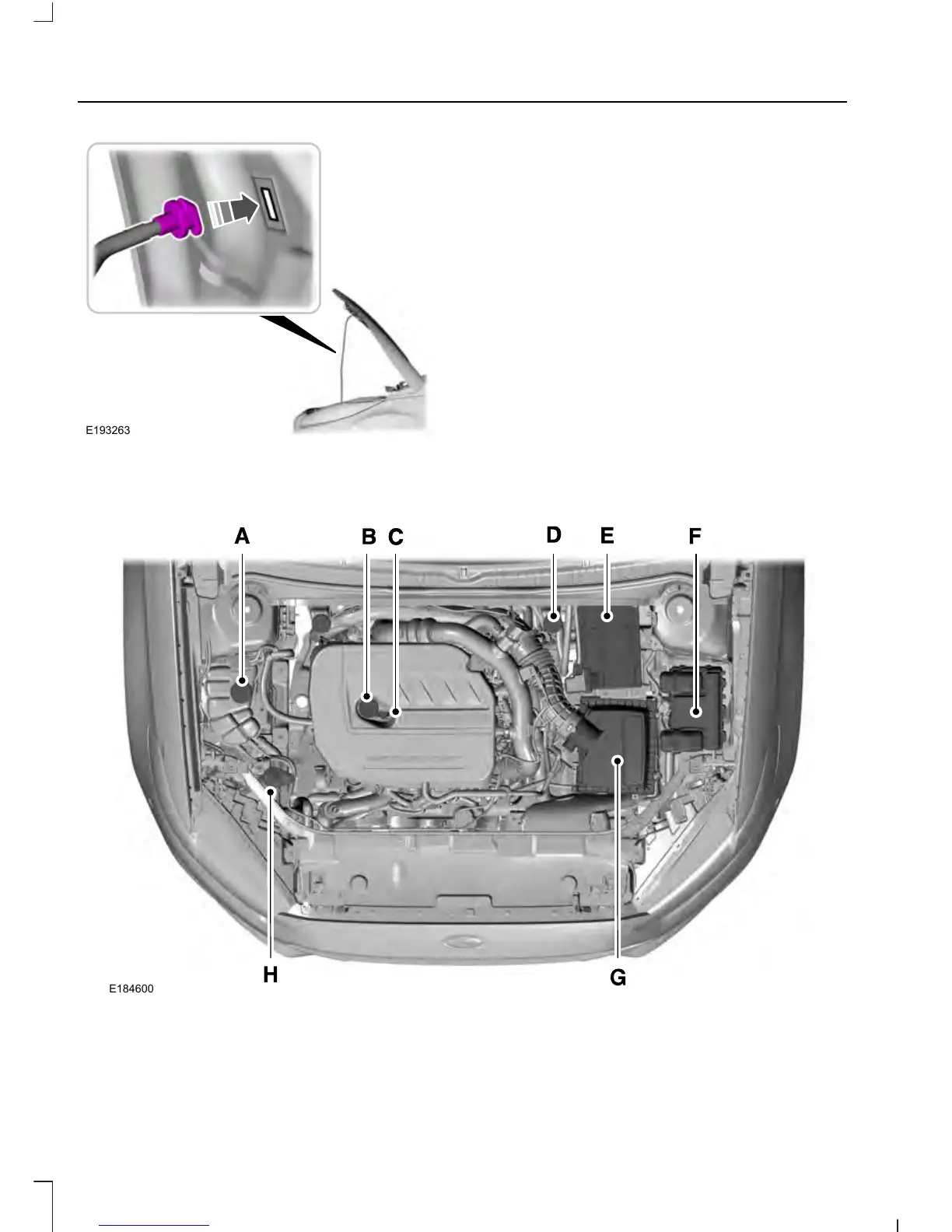

UNDER HOOD OVERVIEW - 1.5L ECOBOOST™

E184600

Engine coolant reservoirA

Engine oil filler capB
