Headlamp
You must remove the headlamp assembly
prior to replacing any bulb. See Removing
a Headlamp (page 260).
A
B
C
D

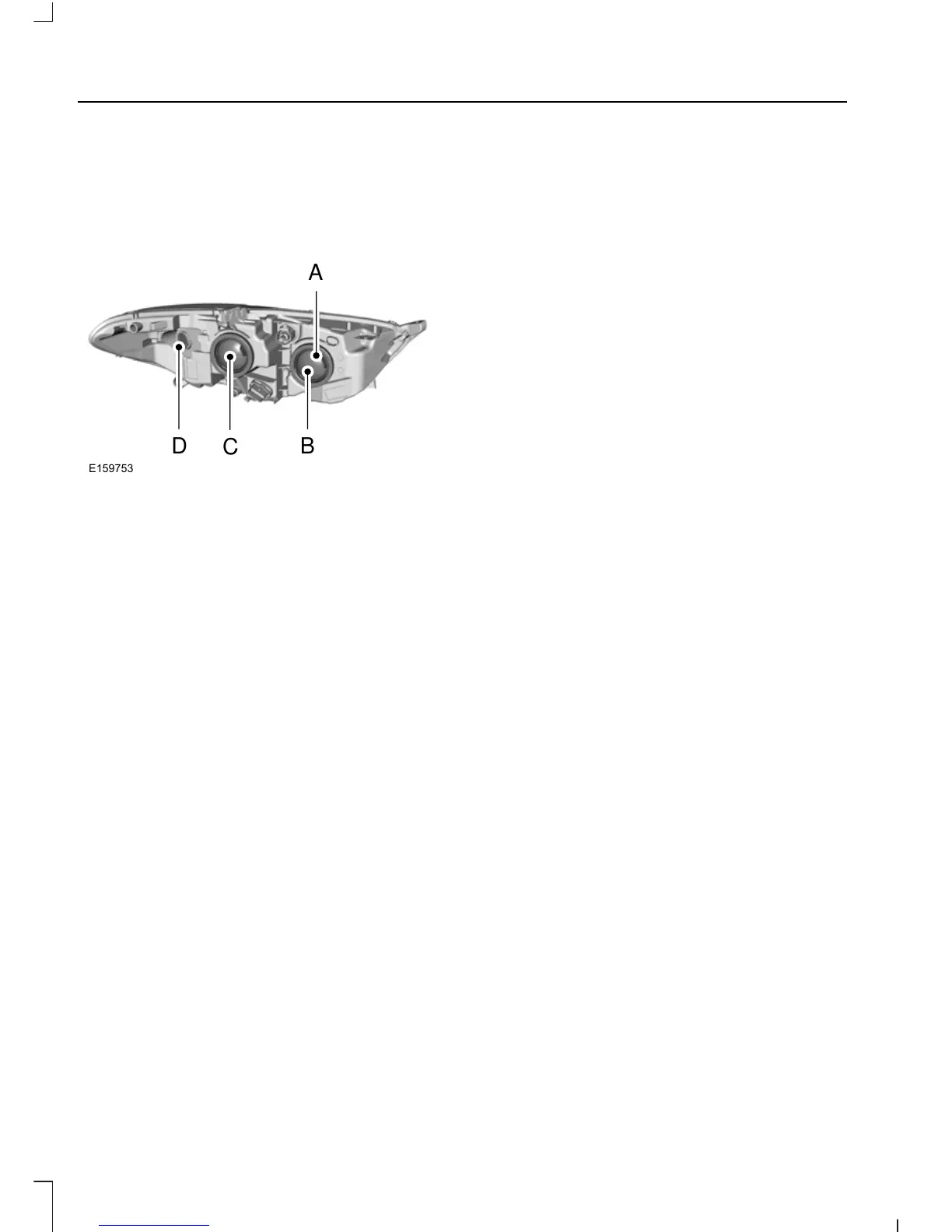

E159753
Front side lamp.A
High beam.B
Low beam.C
Front direction indicator.D
Front Side Lamp
1. Remove the headlamp.
2. Remove the cover.
3. Remove the bulb holder by pulling it
straight out.
4. Remove the bulb by pulling it straight
out.
Front Direction Indicator
1. Remove the headlamp.
2. Turn the bulb holder counterclockwise
and remove it.
Note: You cannot separate the bulb from
the bulb holder.
Headlamp Low Beam
1. Remove the headlamp.
2. Remove the cover.
3. Turn the bulb holder counterclockwise
and remove it.
4. Disconnect the electrical connector.
Note: Do not touch the bulb glass.
Note: You cannot separate the bulb from
the bulb holder.
Headlamp High Beam
1. Remove the headlamp.
2. Remove the cover.
3. Turn the bulb holder counterclockwise
and remove it.
4. Disconnect the electrical connector.
Note: Do not touch the bulb glass.
Note: You cannot separate the bulb from
the bulb holder.
High-Intensity Discharge Headlamps
These lamps operate at a high voltage. See
an authorized dealer if they fail.
LED Lamps
LED lamps are not serviceable items. See
an authorized dealer if they fail.
The following lamps are LED:
• Brake and rear lamps.
• Central high mounted brake lamp.
• Daytime running lamps.
• Rear direction indicators.
• Side direction indicators.
Reverse Lamp
1. Carefully remove the luggage
compartment trim panel.
2. Remove the wing nut.
3. Gently pull the lamp assembly away
from the vehicle.
