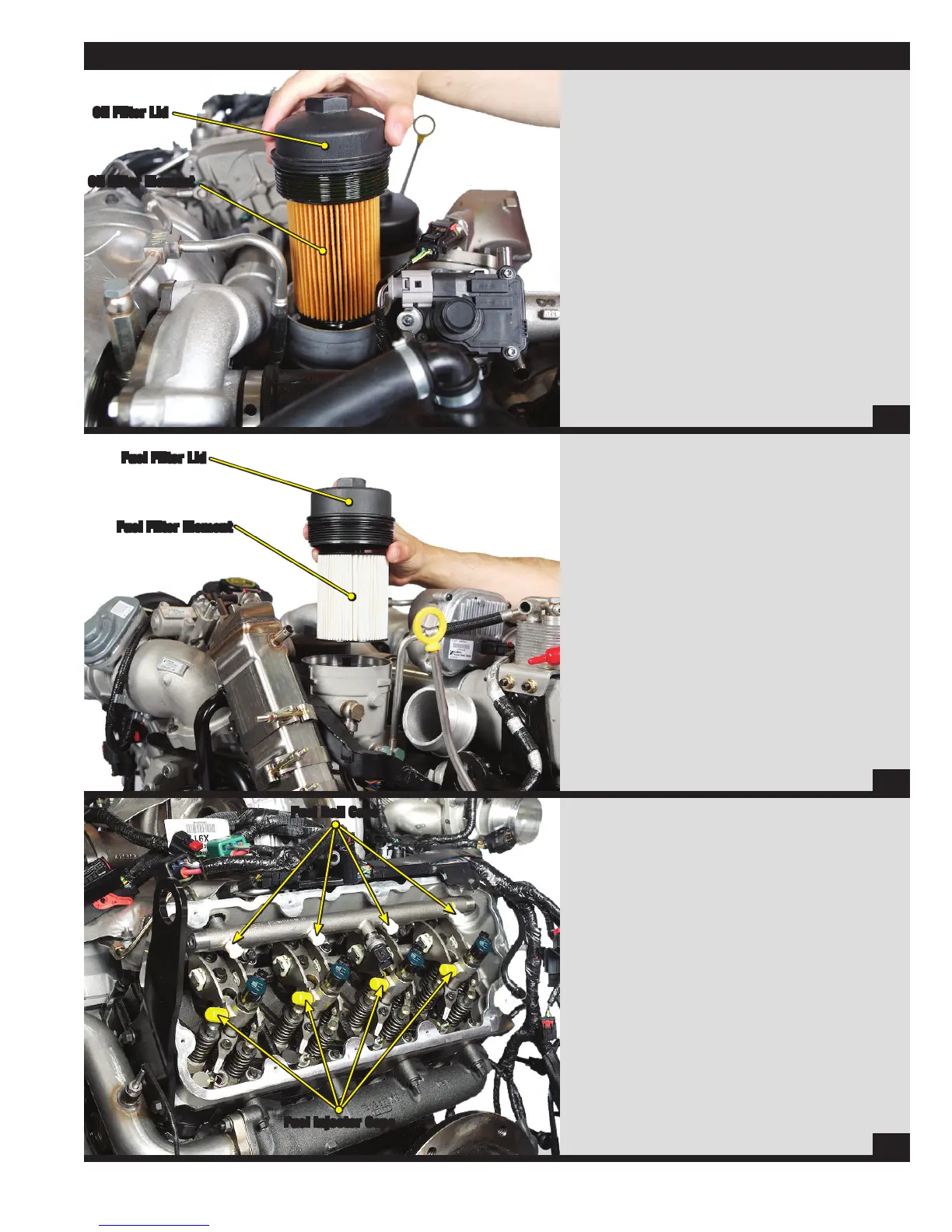

Oil Filter: Replacement
• First loosen the oil filter cap which will open
the oil filter drain and allow the oil from the
filter housing to drain into the crankcase.
• Drain the oil from the oil pan.
• After all of the oil has drained from the oil pan remove
the oil filter and discard it in the appropriate location.
• Install the new oil filter element and tighten
the oil filter cap to the recommended torque.
This will close the oil filter drain.
• Refill crankcase with the correct
volume of recommended oil.
Note: The oil filter snaps into the oil filter lid.
Fuel Filter: Replacement
NOTE: Use proper cleanliness practices while servicing
the fuel system, do not let any dirt get into the housing!
• Clean all dirt and debris from the engine mounted
fuel filter lid thoroughly. Make sure your hands
and any tools involved are clean also!
• Remove the fuel filter lid and lift the filter element out
of the housing and discard in the appropriate location.
• To avoid fuel spills, use a suction gun or similar device to
remove the remaining fuel from the fuel filter housing.
• Install the new filter and tighten the fuel
filter lid to the specified torque.
NOTE: Before starting the vehicle, turn the key
to the on position for 30 seconds, then key off.
Do this 6 times to ensure the fuel filter housing
is full of fuel before starting the vehicle.
Fuel System Service Cleanliness:
Fuel Injectors, Fuel Rail
NOTE: Use proper cleanliness practices
while servicing the fuel system!
• Always use fuel system caps when servicing
the fuel injectors or replacing fuel lines.
• Do not have the fuel system open to the elements any
longer than is necessary to perform the job at hand.
• Tool # 310-158 (fuel caps)
Fuel Rail Caps
Fuel Injector Caps
Fuel Filter Lid
Fuel Filter Element
Oil Filter Lid
Oil Filter Element
