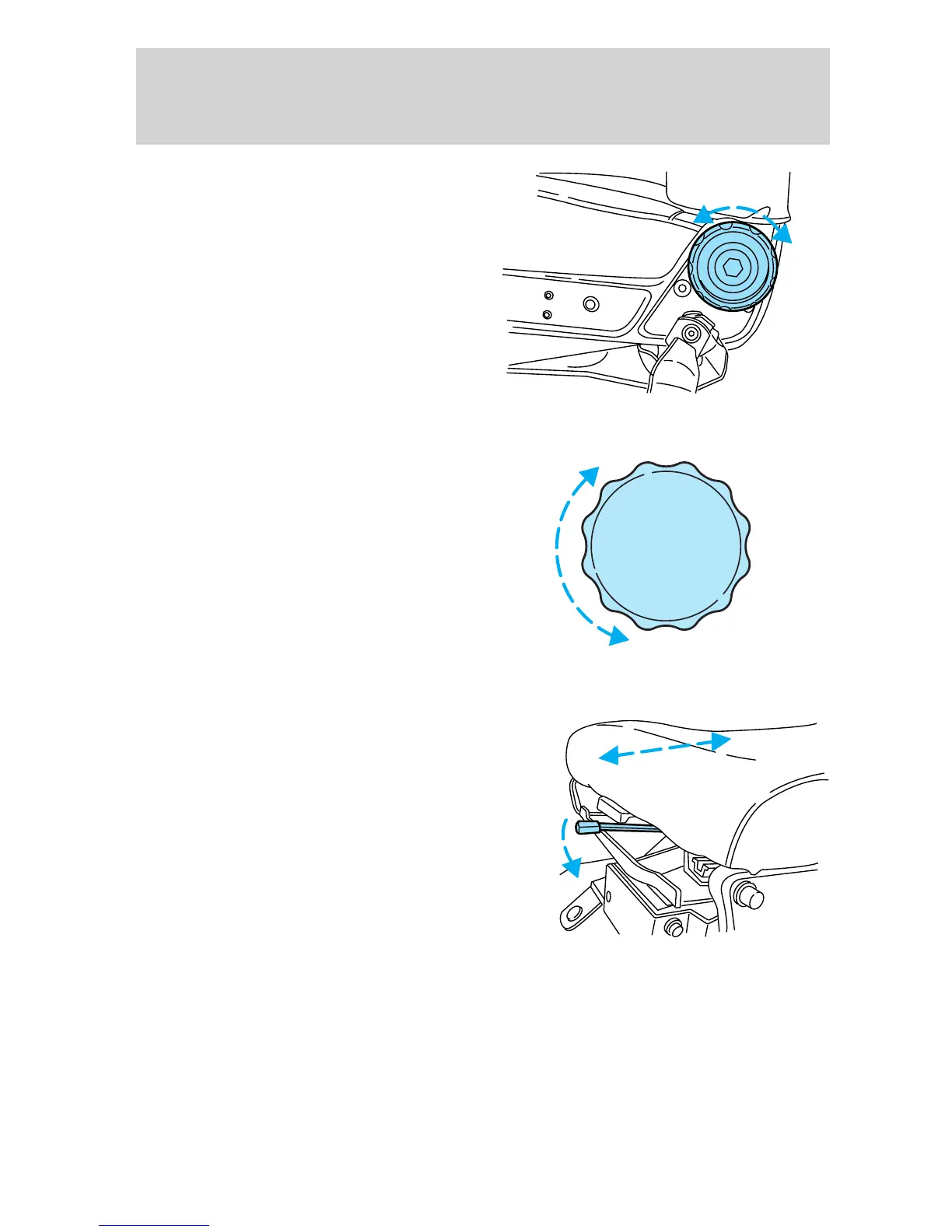

Rotate
control
to
adjust
seatback.
Using
the
manual
lumbar
support
For
more
lumbar
support,
turn
the
lumbar
support
control
toward
the
front
of
the
vehicle.
For
less
lumbar
support,
turn
the
lumbar
support
control
toward
the
rear
of
the
vehicle.
Easy-Aire
seat
(if
equipped)
Move
handle
to
the
left
to
move
seat
forward
or
backward.
2006
F-650/750
(f67)
Supplement
USA
(fus)
Seating
and
Safety
Restraints
69
68
