Passenger Compartment Fuse
Panel
The fuse panel is located under the
instrument panel to the left of the steering
column.
Note: It may be easier to access the fuse
panel if you remove the finish trim piece.

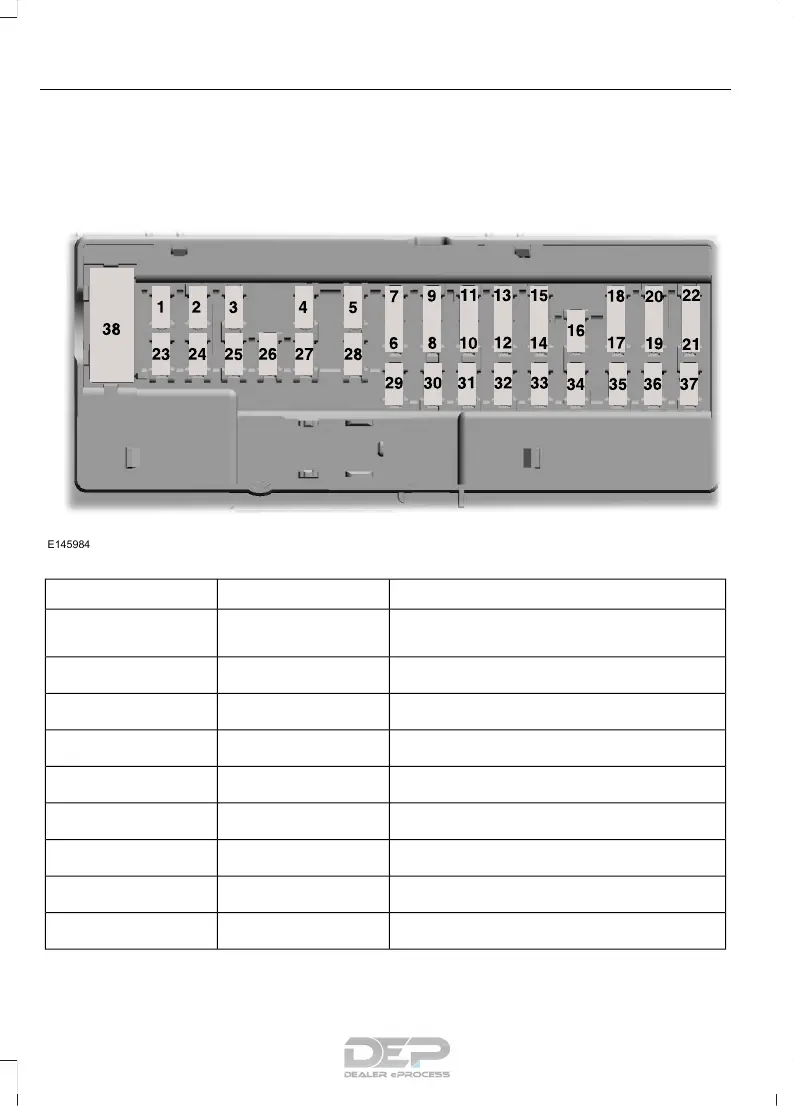

E145984
Protected componentsFuse amp ratingFuse or relay number
Lighting (ambient, glove box, vanity, dome,
trunk).
10A
1
1
Lumbar.
7.5A
1
2
Driver door unlock.
20A
1
3
Not used (spare).
5A
1
4
Subwoofer amplifier.
20A
1
5
Not used (spare).
10A
2
6
Not used (spare).
10A
2
7
Not used (spare).
10A
2
8
Not used (spare).
10A
2
9
248
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201602, Second Printing
