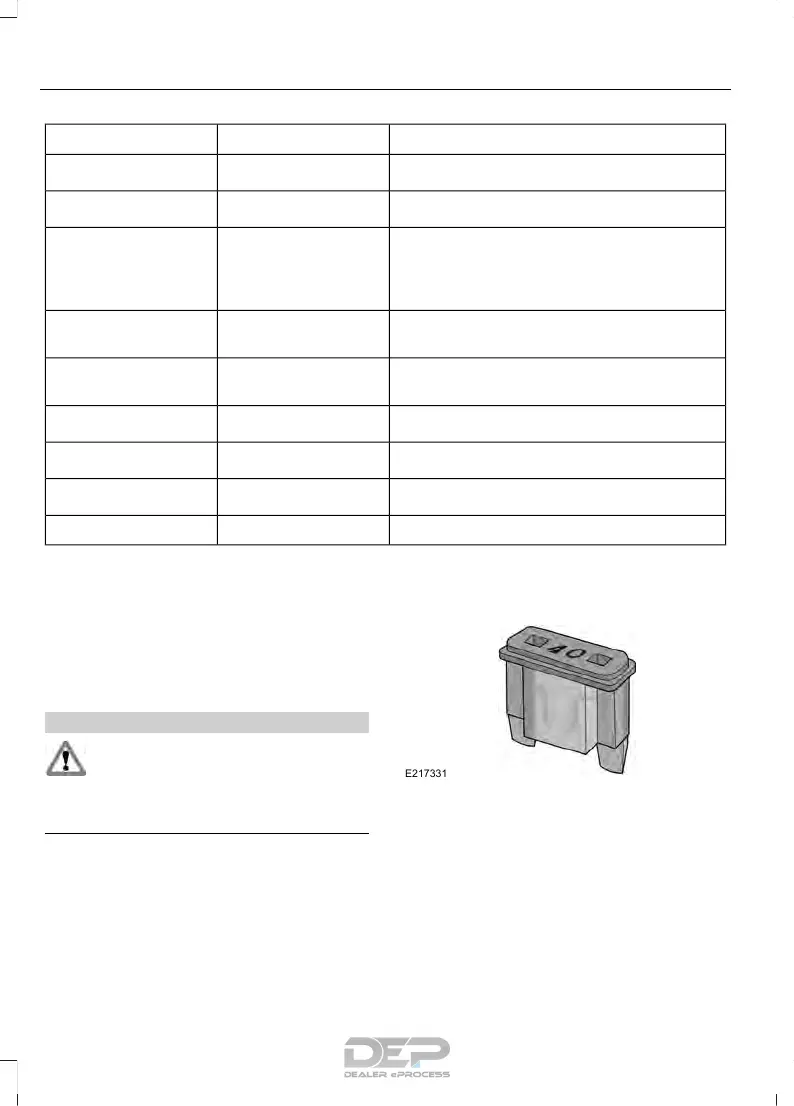

Protected componentsFuse amp ratingFuse or relay number
Rear passenger side door (window).
30A
1
30
Not used (spare).
15A
1
31
GPS.
10A
1
32
Voice control.
Display.
Radio frequency receiver.
Radio.
20A
1
33
Active noise control.
Run-start (fuse #19, 20, 21, 22, 35, 36, 37,
circuit breaker).
30A
1
34
Not used (spare).
5A
1
35
Auto-dimming rear view mirror.
15A
1
36
Heated steering wheel.
20A
1
37
Not used (spare).30A38
1
Micro fuse.
2
Dual micro fuse.
CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire.
If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
250
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201602, Second Printing
Fuses
