Engine coolant reservoir. See Engine Coolant Check (page 256).A
Engine oil filler cap. See Engine Oil Check (page 254).B
Air filter. See Changing the Engine Air Filter (page 269).C
Brake fluid reservoir. See Brake Fluid Check (page 260).D
Engine compartment fuse box. See Fuses (page 241).E
Inverter system controller.F
Inverter system controller coolant reservoir. See Engine Coolant Check (page
256).
G
Engine oil dipstick. See Engine Oil Dipstick (page 254).H
Washer system fluid reservoir. See Washer Fluid Check (page 260).I

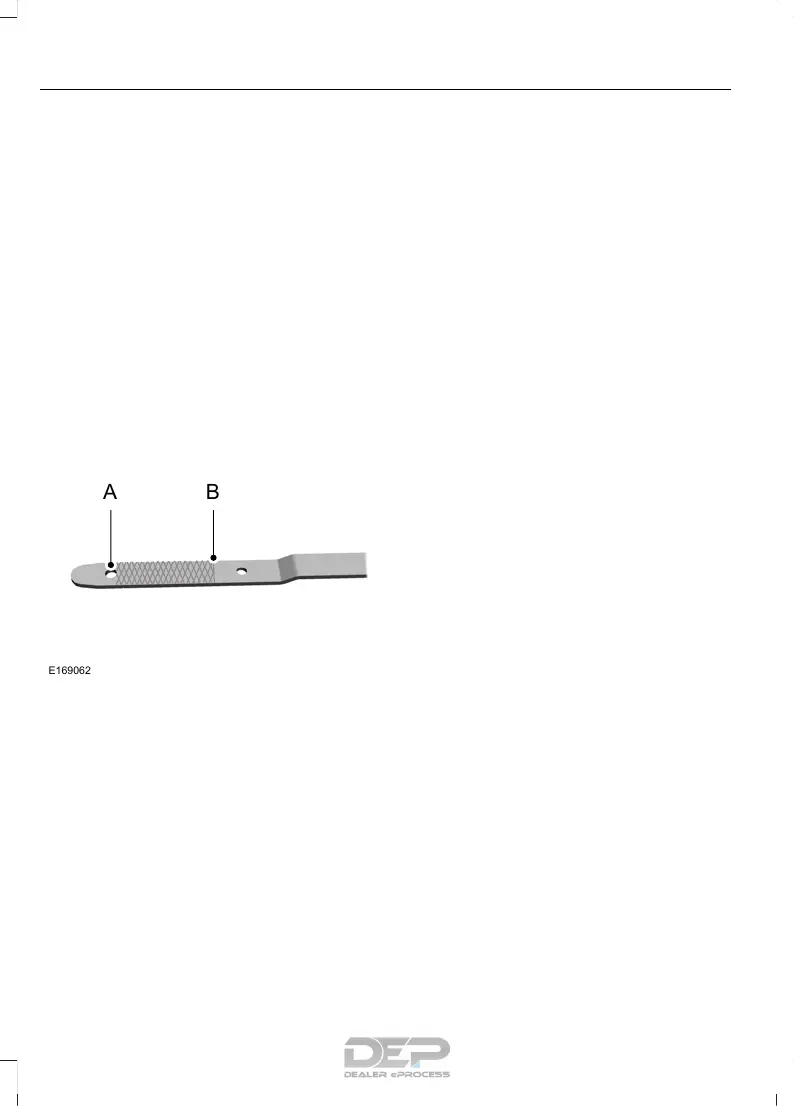

ENGINE OIL DIPSTICK
MINA
MAXB
ENGINE OIL CHECK
Check the level before starting the engine
and make sure that the level is between
the MIN and the MAX marks.
1. Make sure that your vehicle is on level
ground.
2. Switch the engine off and wait 10
minutes for the oil to drain into the oil
pan.
3. Remove the dipstick and wipe it with
a clean, lint-free cloth. Replace the
dipstick and remove it again to check
the oil level.
If the level is at the MIN mark, add oil
immediately.
Adding Engine Oil
Note: Do not remove the filler cap when
the engine is running.
Note: Do not add oil further than the MAX
mark. Oil levels above the MAX mark may
cause engine damage.
254
