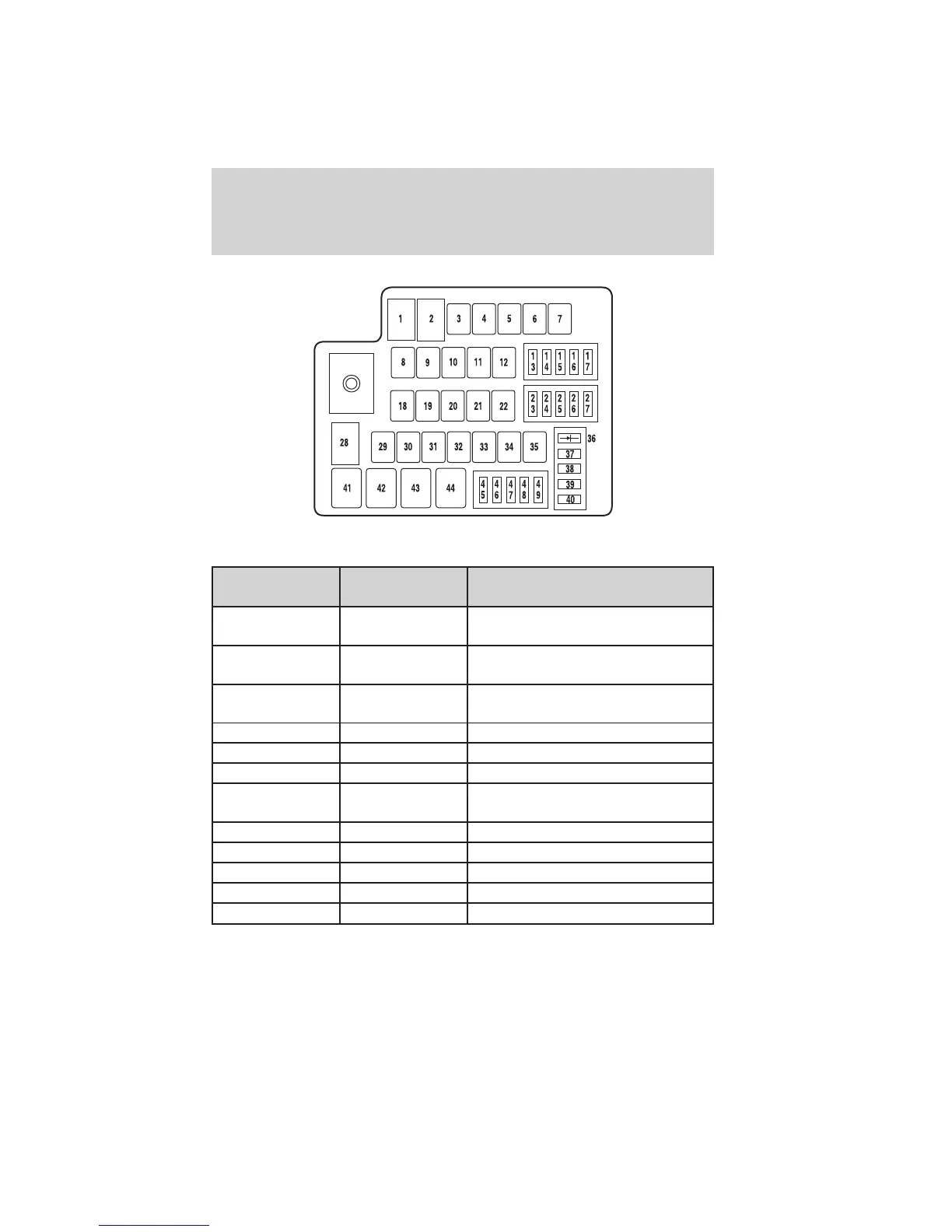

The high-current fuses are coded as follows.
Fuse/Relay
Location
Fuse Amp
Rating
Protected Circuits
1 50A* Electronic power assist steering
B+
2 50A* Electronic power assist steering
B+
3 40A* Powertrain control module (aux
relay 5 power)
4 — Not used
5 — Not used
6 40A* Rear defrost (aux relay 4 power)
7 30A* Vacuum pump (aux relay 6
power)
8 50A* Brake system controller pump
9 20A* Wiper washer
10 30A* Brake system controller valves
11 — Not used
12 — Not used
