Fuse/Relay
Location
Fuse Amp
Rating
Protected Circuits
41 G8VA relay Backup lamps
42 G8VA relay Heater pump
43 G8VA relay Fuel pump
44 G8VA relay Motor electronics coolant pump
45 15A** Injectors
46 15A** Coil on plugs
47 10A** Powertrain control module
(general): Heater pump, Motor
electronics coolant pump relay
coils, DC/DC converter, Back-up
lamps, Brake controller
48 20A** HEV high voltage battery module,
Fuel pump relay
49
15A** Powertrain control module
(emissions related)
* Cartridge Fuses ** Mini Fuses

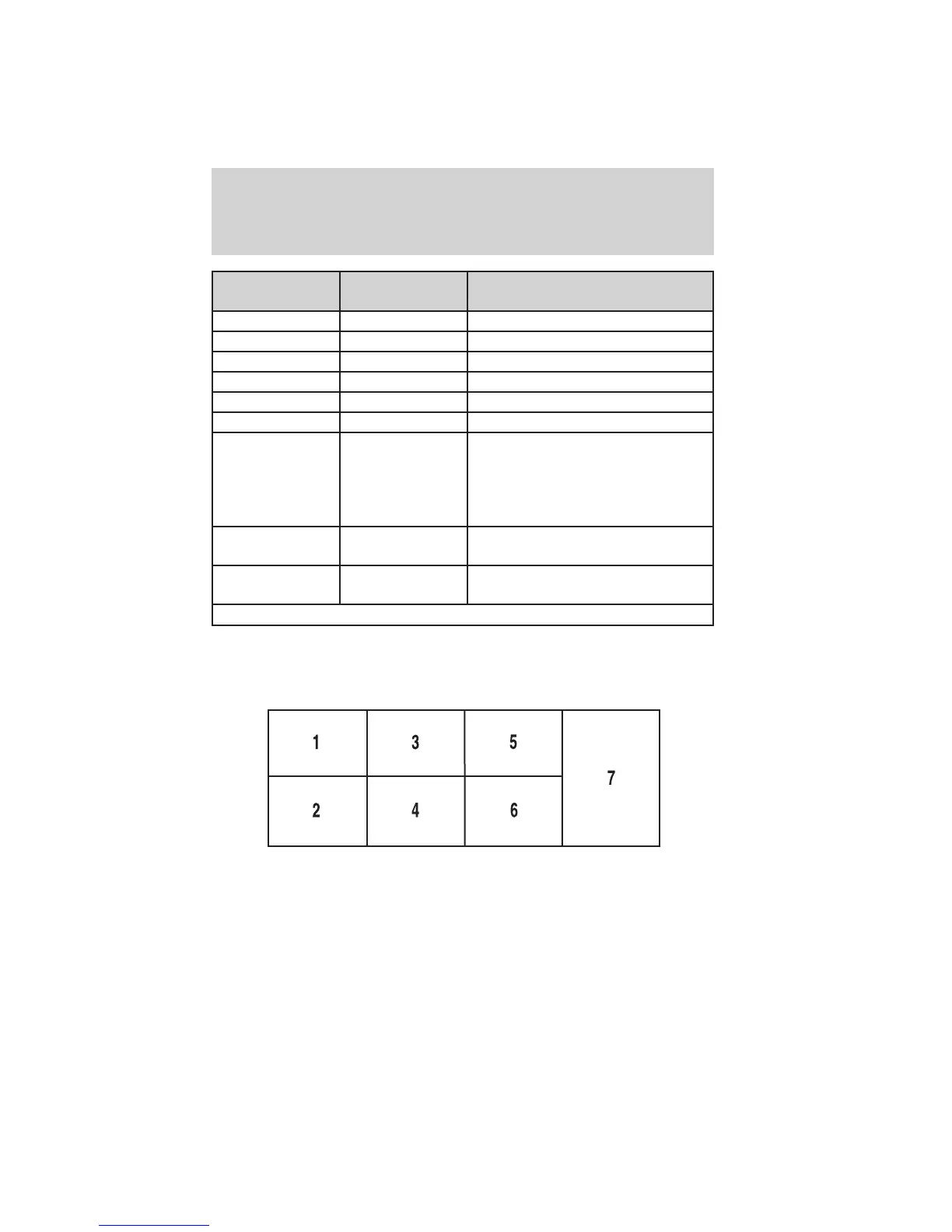

Auxiliary relay box
The auxiliary relay box is located in front of the radiator in the engine
compartment.
Roadside Emergencies
257
2012 Fusion Hybrid (hfv)
Owners Guide, 1st Printing
USA (fus)
