Fuel Filter - EFI
The fuel filter is located between the fuel pump and the fuel rail, and is not mounted
on the engine.
WARNING: WHEN REMOVING THE FUEL FILTER, USE CAUTION SINCE
THERE MAY BE FUEL PRESSURE PRESENT.
The fuel filter should be replaced according to the maintenance schedule -- Refer
to “RECOMMENDED MAINTENANCE SCHEDULES” on page 21, or more often if
needed.
1. Block fuel flow by crimping fuel feed line with appropriate tool between fuel tank
and filter.
2. Place suitable container beneath filter to collect spilled fuel.
3. Remove fuel line clamps and hose at each end of filter.
4. Replace fuel filter using Ford Power Products fuel filter number F8JL-9A011-
AA.
5. Dispose of fuel filter properly.
NOTE: PROTECT THE ENVIRONMENT. It is illegal to pollute drains, water
courses or soil. Use authorized facilities for disposal. If in doubt, contact your local
Authority for advice.

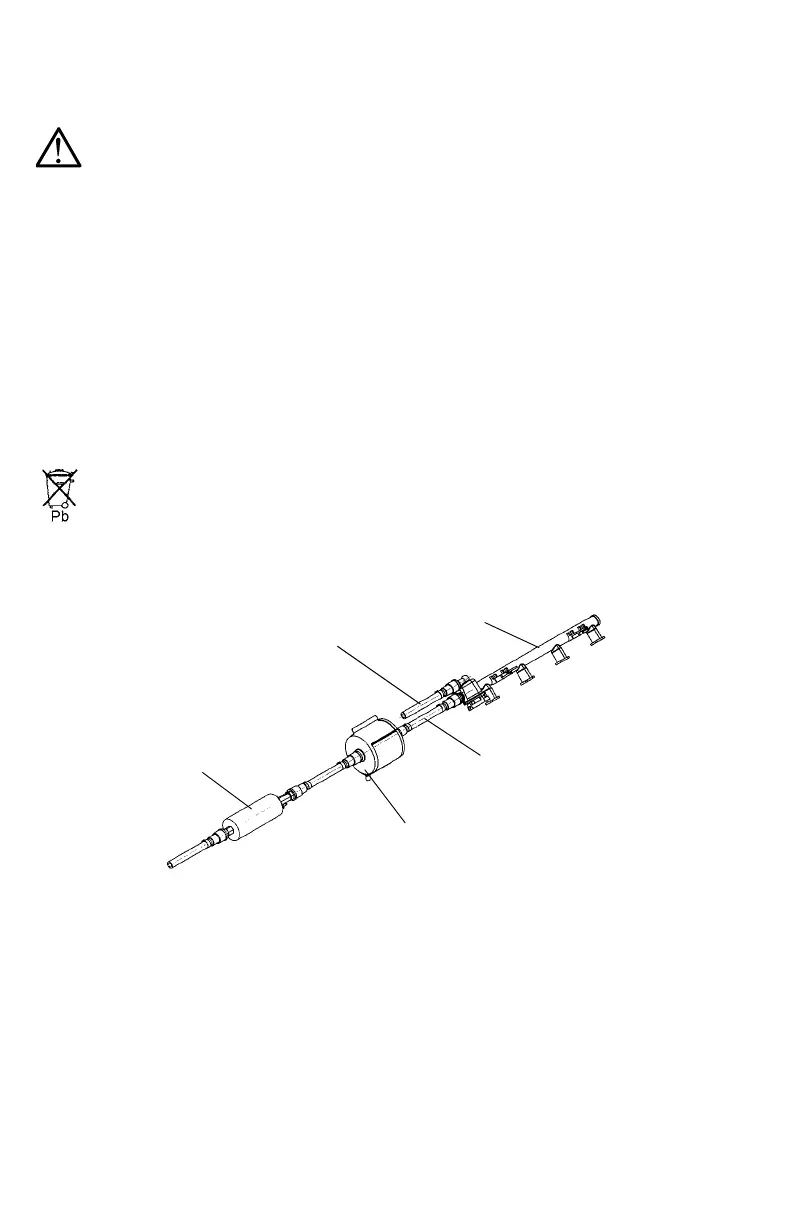

Fuel Pump
Fuel Filter
Fuel Rail
Fuel Supply
Fuel Return
FPP01162
