Electrical System
A NEGATIVE EARTH (NEGATIVE GROUND) SYSTEM IS USED.

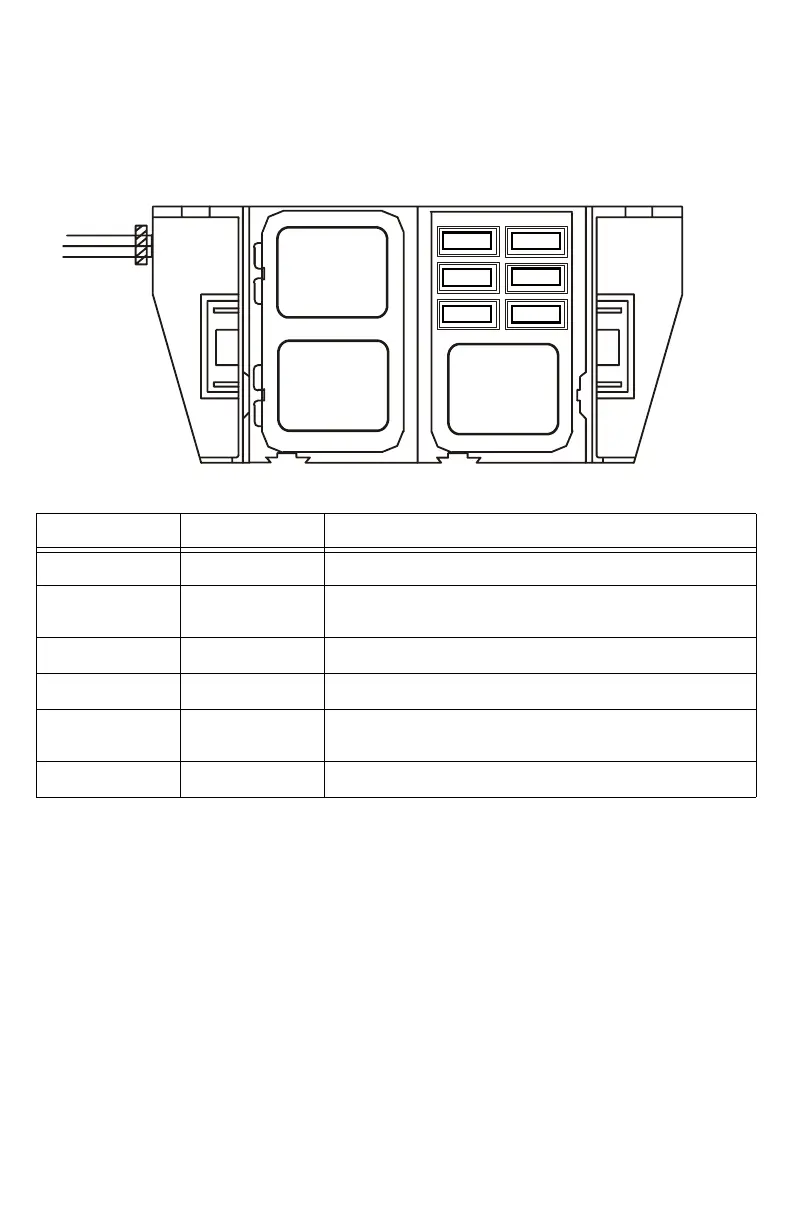

EPM - Power Distribution Box
Fuse Amps Circuits protected
1 30 Ground Protection for EPM and the Megajector
25
Ignition Voltage to EPM, Starter Relay, Fuel Pump relay
and Power Relay
3 20 Battery Voltage to EPM
4 15 Fuel pump
515
Battery Voltage to the Megajector, Trim Valve, Dry Fuel
Lock-off Solenoid, Ignition Coil and HO2S Sensors
6 - Not used
12
3
4
5
6
Fuel pump
Starter
Power
Lockout
Relay
Relay
Relay
Part of -12A581- Wiring Harness
