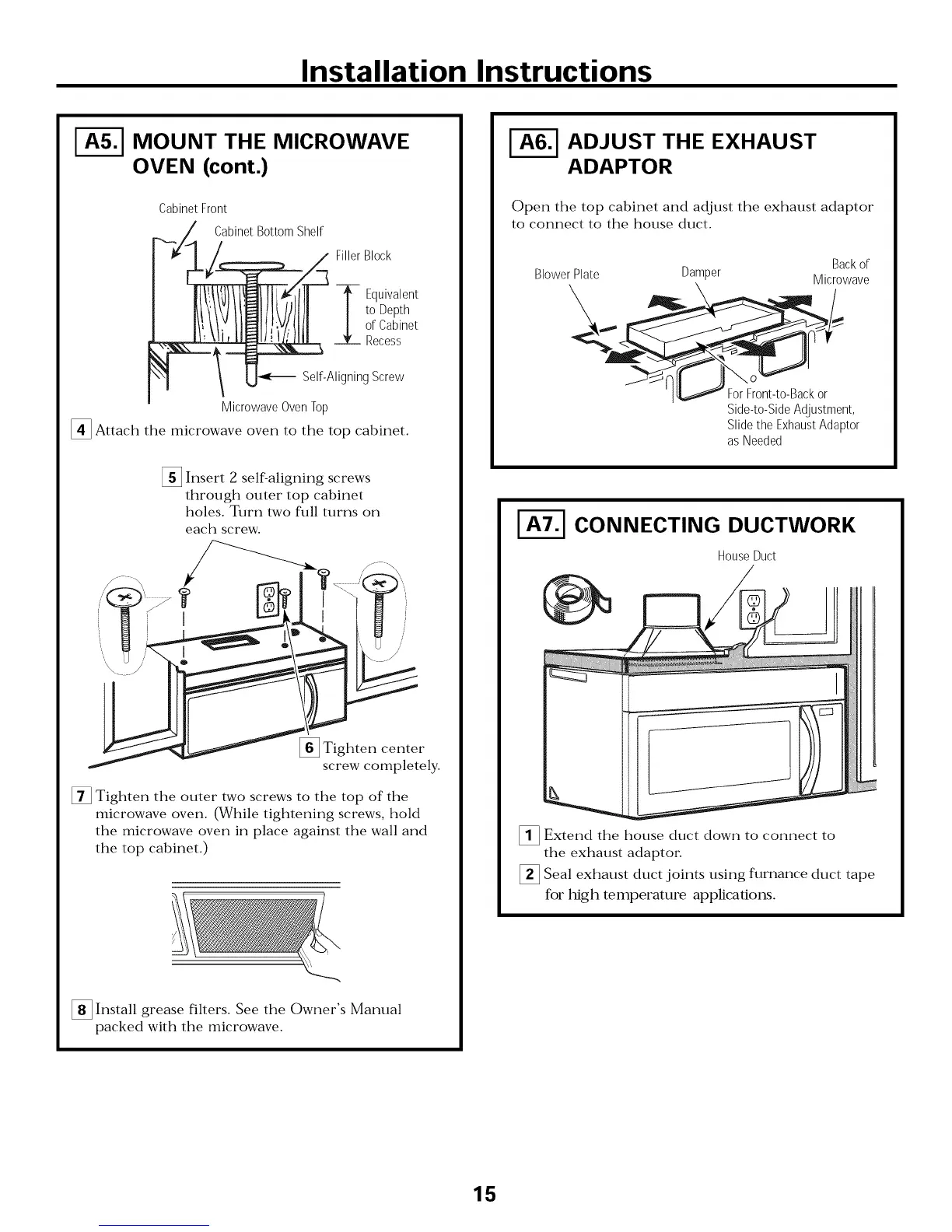

Installation Instructions
MOUNT THE MICROWAVE
OVEN (cont.)
Cabinet Front
..._._/_ Cabinet Bottom Shelf
/ Filler Block
/_,-- ;:::___
/ _F_[_/_ TEq uivalent
/ | : :bPitnhet
_:__!tI II:' _L Recess
J"\l !U _-_ Self-Aligning Screw
Microwave Oven Top
I_ Attach the microwave oven to the top cabinet.
[] Insert 2 self-aligning screws
through outer top cabinet
holes. Turn two flfll turns on
each screw.
[]Tighten center
screw completely.
[] Tighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall and
the top cabinet.)
[] Install grease filters. See the Owner's Manual
packed with the microwave.
ADJUST THE EXHAUST
ADAPTOR
Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
Backof
BlowerPlate Damper Microwave
Side-to-SideAdjustment,
Slidethe ExhaustAdaptor
as Needed
I-_ CONNECTING DUCTWORK
HouseDuct
]Extend the house duct down to connect to
the exhaust adaptor.
]Seal exhaust duct joints using furnance duct tape
for t_gh temperature applicatiorgs.
15
