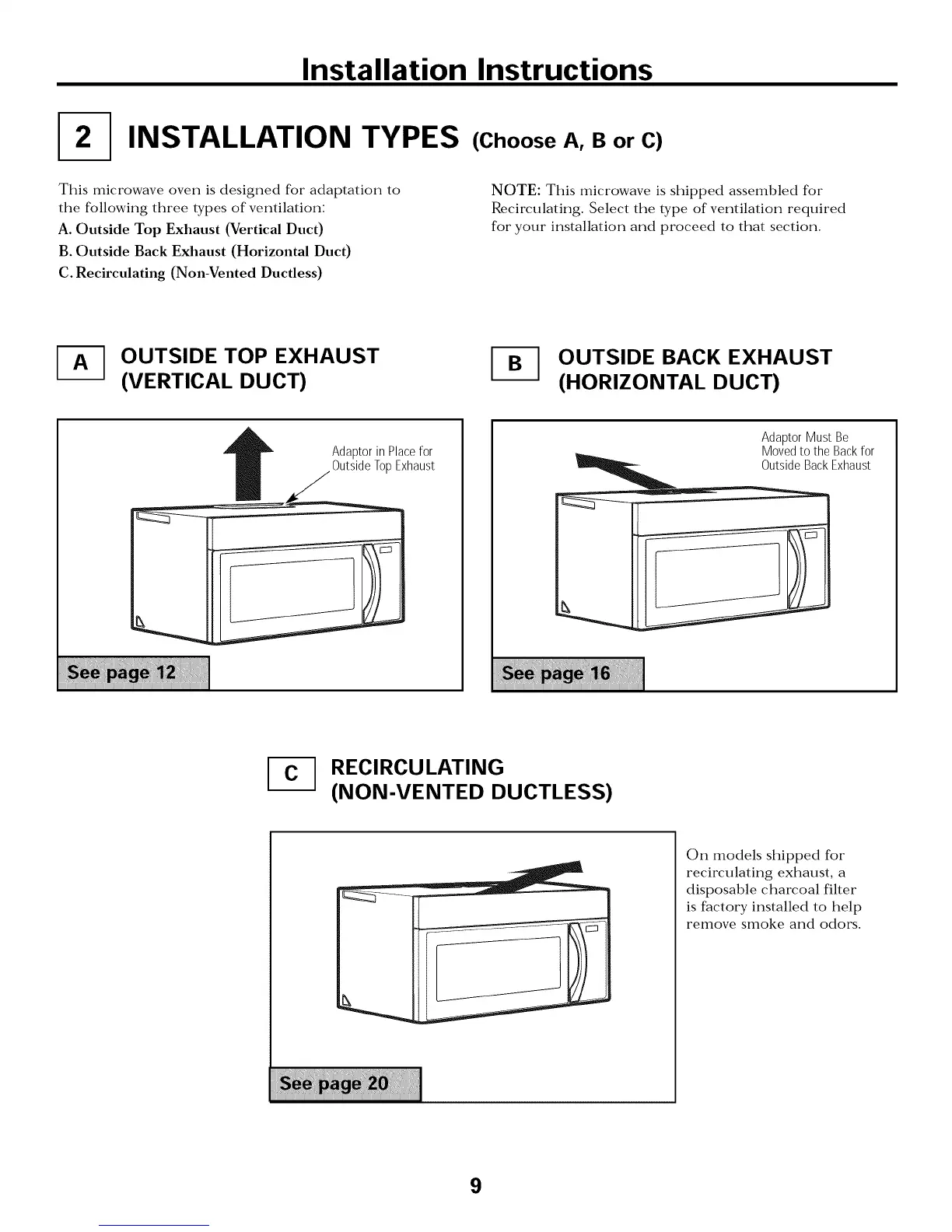

Installation Instructions
INSTALLATION TYPES
This microwave oven is designed for adaptation to
the following three types of ventilation:
A. Outside Top Exhaust (Vertical Duct)
B. Outside Back Exhaust (Horizontal Duct)
C. Recirculating (Non-Vented Ductless)
(Choose A, B or C)
NOTE: This microwave is shipped assembled for
Recirculating. Select the type of ventilation required
for your installation and proceed to that section.
-_ OUTSIDE TOP EXHAUST
(VERTICAL DUCT)
OUTSIDE BACK EXHAUST
(HORIZONTAL DUCT)
Adaptorin Placefor
OutsideTopExhaust
AdaptorMust Be
Movedto the Backfor
OutsideBackExhaust
[_ RECIRCULATING
(NON-VENTED DUCTLESS)
On models shipped for
recirculating exhaust, a
disposable charcoal filter
is factory installed to help
remove smoke and odors.
9
To Next Page
