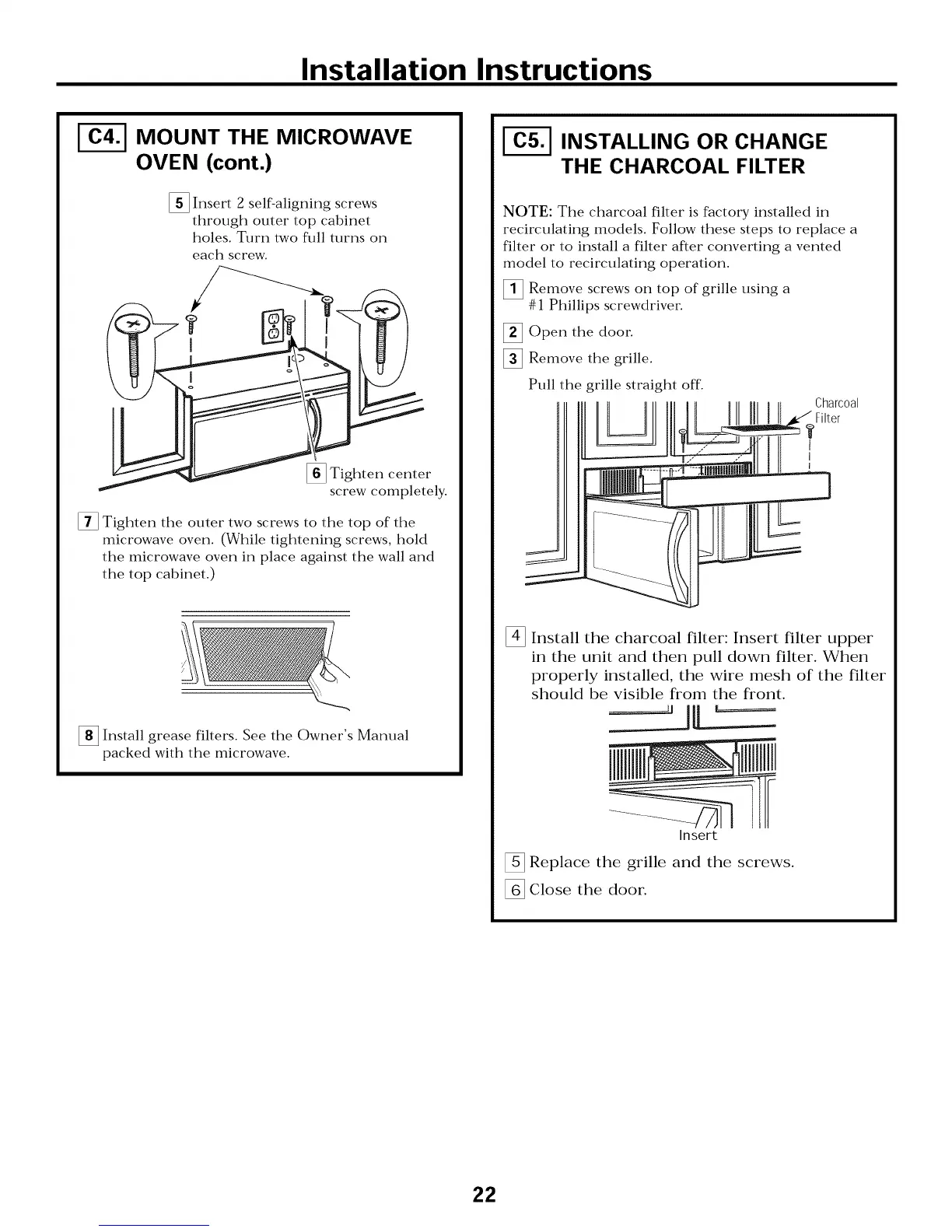

Installation Instructions
MOUNT THE MICROWAVE
OVEN (cont.)
[] Insert 2 self-aligning screws
through outer top cabinet
holes. Turn two full turns on
each screw.
I
[]Tighten center
screw completely.
[] Tighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall and
the top cabinet.)
[] Install grease filters. See the Owner's Manual
packed with the microwave.
_-_ INSTALLING OR CHANGE
THE CHARCOAL FILTER
NOTE: The charcoal filter is factory installed in
recirculating models. Follow these steps to replace a
filter or to install a filter after converting a vented
model to recirculating operation.
[] Remove screws on top of grille using a
#1 Phillips screwdriver'.
[] Open the door.
[] Remove the grille.
Pull the grille straight off.
Charcoal
Filter
I
I
[] Install the charcoal filter: Insert filter upper
in the unit and then pull down filter. When
properly installed, the wire mesh of the filter
should be visible fl'om the fl'ont.
Insert
[] Replace the grille and the screws.
[] Close the door.
22
