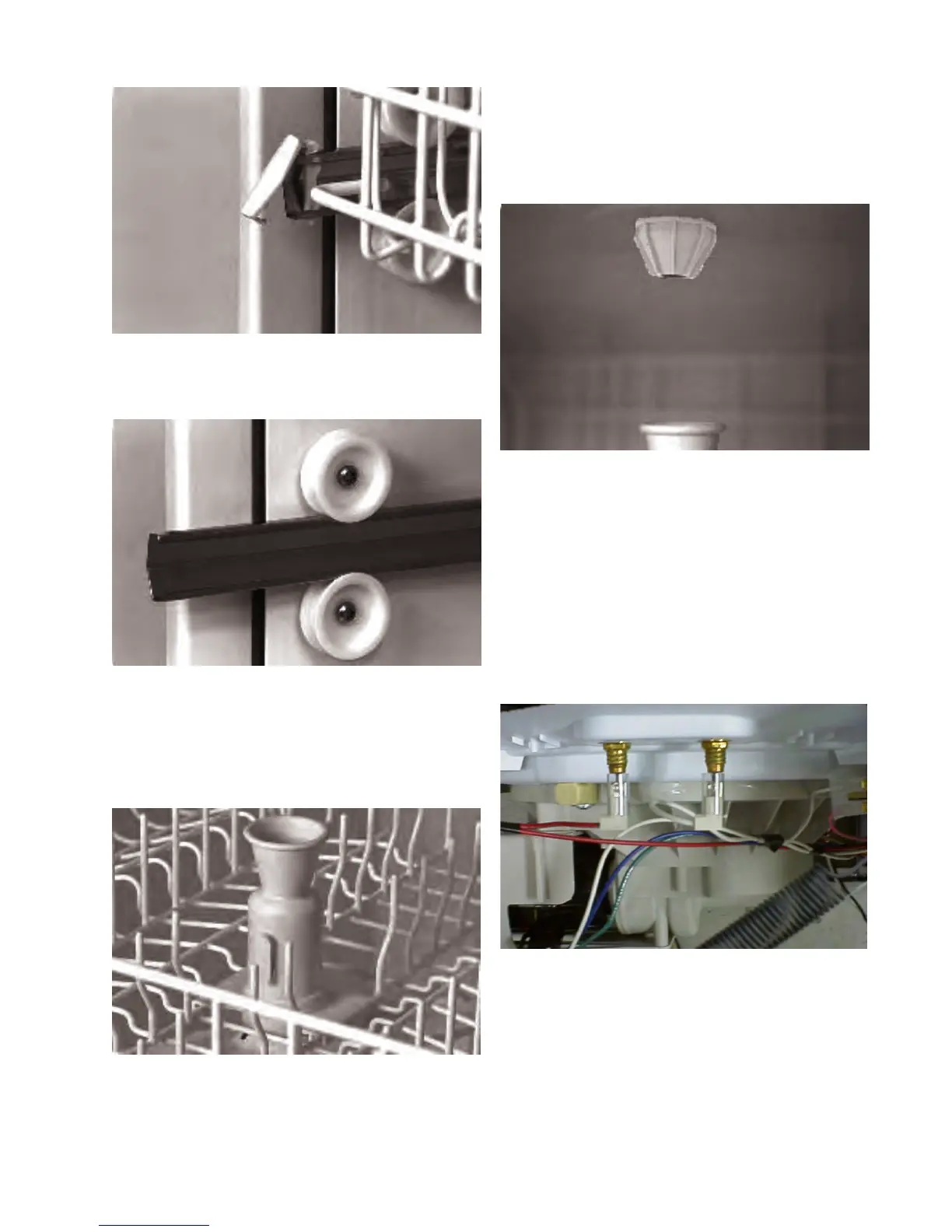

2. Each rack roller is each secured with a T-25
TORX® bolt.
UPPER WATER TUBE
1. To remove upper water tube, press in on top of
two clips and lift up.
UPPER SPRAY ARM
1. To remove upper spray arm, unscrew plastic nut
securing it to support.
WATER DISTRIBUTOR
1. The water distributor is screwed to top of upper
arm delivery tube. A rubber seal is used on top
side of tub to eliminate leaks.
KICK PLATE
1. To remove kick plate and insulation (some
models) remove two Phillips screws and pull out
on bottom of kick plate.
HEATING ELEMENT
1. Disconnect dishwasher from electrical supply.
2. To remove element, disconnect wiring and
remove two element mounting nuts.
3. Lift terminal ends of element into tub and rotate
element sideways, out of retainers.
