Page 19

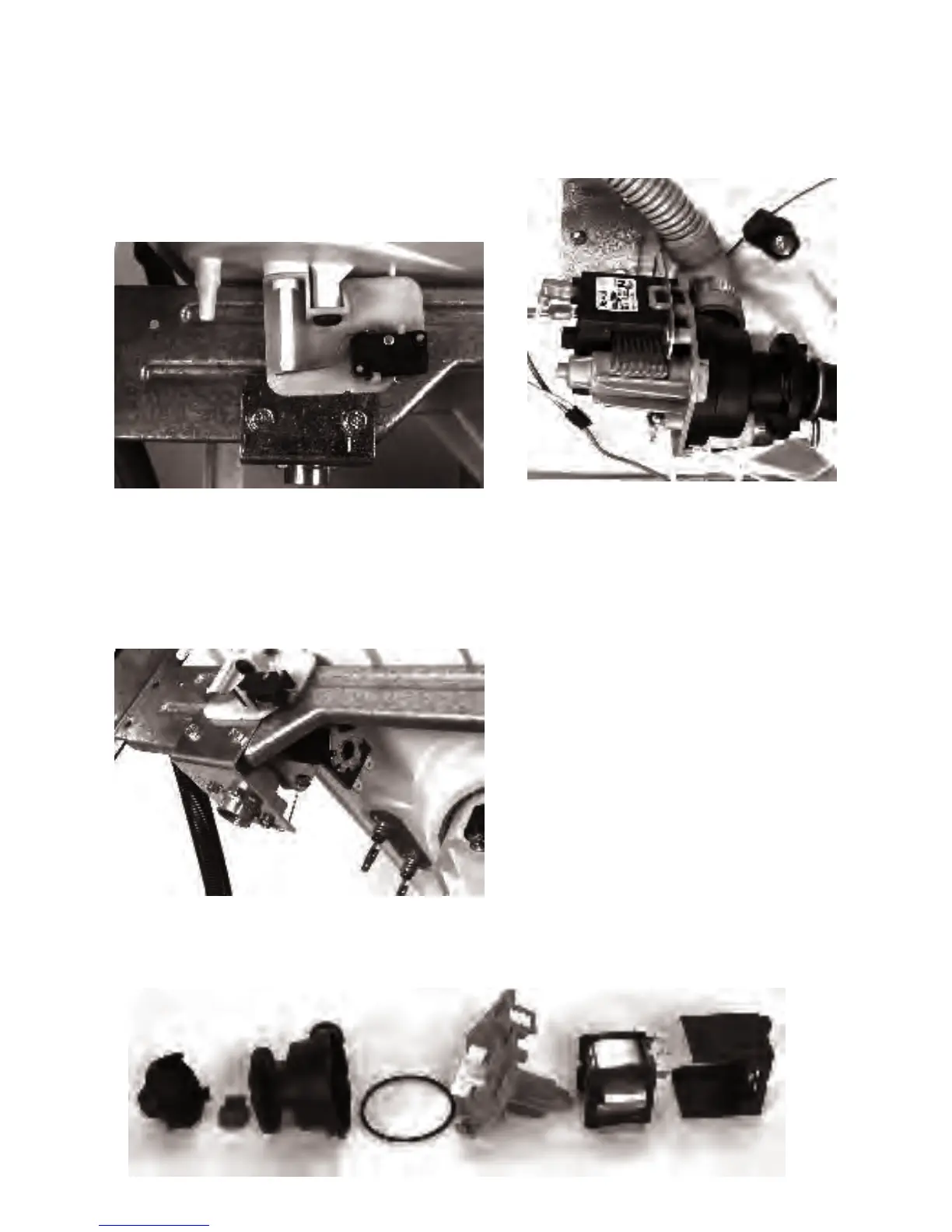

FLOAT SWITCH AND BRACKET
1. Disconnect dishwasher from electrical supply.
2. To remove float switch bracket, remove outer
door panel, kick plate, and wires to float switch.
A single Phillips screw secures bracket to tub.
3. Remove float switch by spreading mounting
clips.
WATER VALVE
1. Disconnect dishwasher from electrical supply.
2. Remove outer door panel, kick plate, and wires.
3. The water valve is secured with two 5/16" hex
screws.
DRAIN PUMP
1. Disconnect dishwasher from electrical supply.
2. Remove outer door panel and kick plate.
3. Remove hoses and wiring to drain pump.
4. Remove two screws securing drain pump
to mounting bracket.
5. The drain pump assembly consists of three
primary parts, (1) stator winding, (2) motor
armature & impeller, and (3) front housing. To
remove front housing, turn housing about 45°
counterclockwise and lift off.
6. To remove stator winding, release plastic
catches and slide stator winding off.
