Page 20

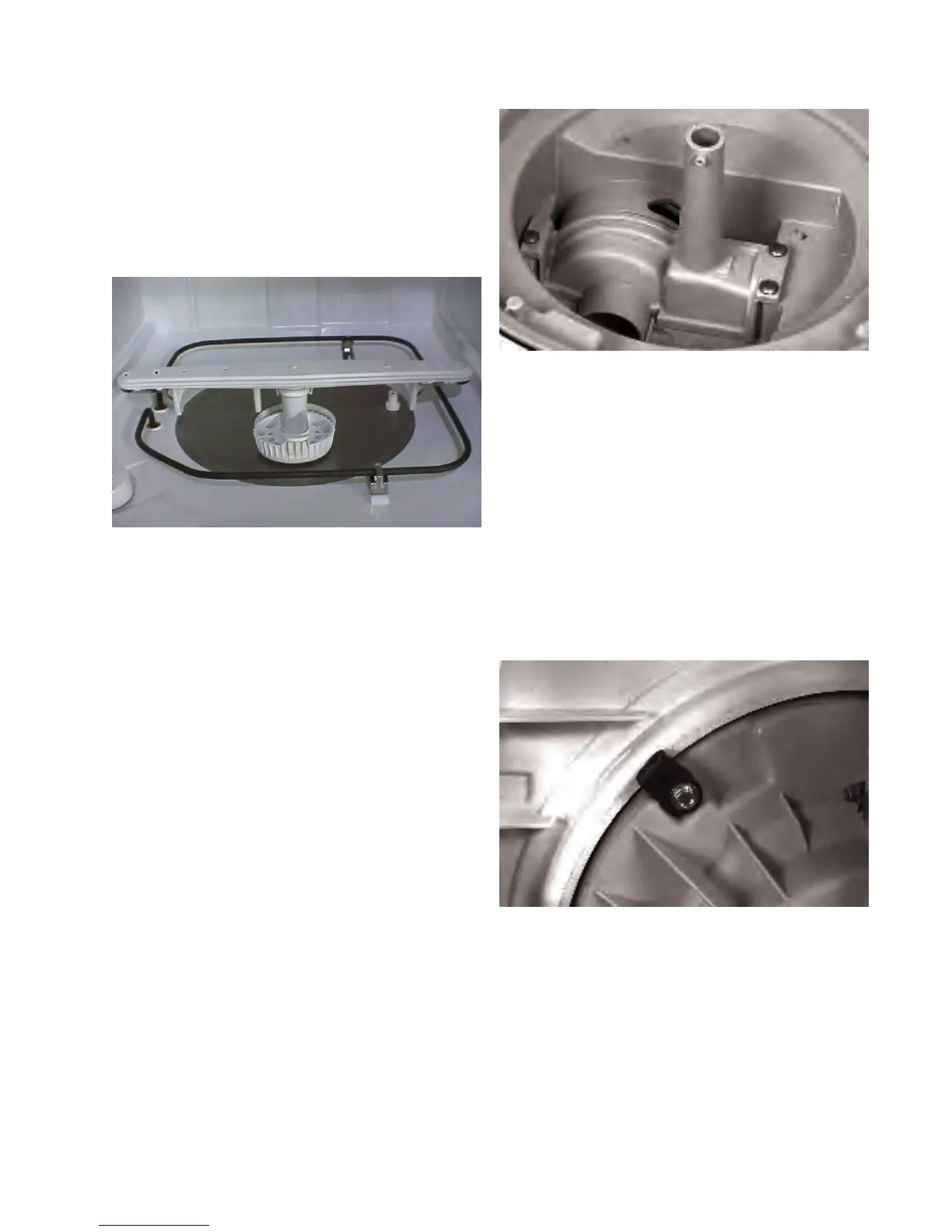

LOWER SPRAY ARM
1. To remove lower spray arm, pull out on retaining
clips and lift up.
GLASS TRAP
1. To remove glass trap, lift handle up and raise
trap up and out of sump.
LOWER SPRAY ARM SUPPORT
1. To remove lower spray arm support, remove
spray arm and glass trap, then turn support 90°
clockwise and lift up.
FILTER
1. To remove filter, remove glass trap, spray arm
and spray arm support. Lift filter up to remove.
PUMP COVER
1. To remove pump cover, remove glass trap,
spray arm, spray arm support and filter.
2. Remove three T-20 TORX
® screws and lift cover
off.
PUMP AND MOTOR ASSEMBLY
1. To remove pump and motor assembly, discon-
nect dishwasher from electrical supply. Remove
glass trap, spray arm, spray arm support and
filter.
2. Remove door panel and kick plate.
3. Disconnect upper spray arm hose, drain hose
and motor wiring.
4. Disconnect wiring to thermistor or remove
thermistor mounting bracket screw.
5. The pump and motor assembly is secured in
place using four retainers that rotate easily. Turn
retainers 90° and lift assembly from tub.
