Page #13 background imageLoading...
Page #13 background image
40F
41F 42F
43F 44F
45F 46F
47F 48F
100G
49F 50F
51F 52F
53F 54F
55F
56F

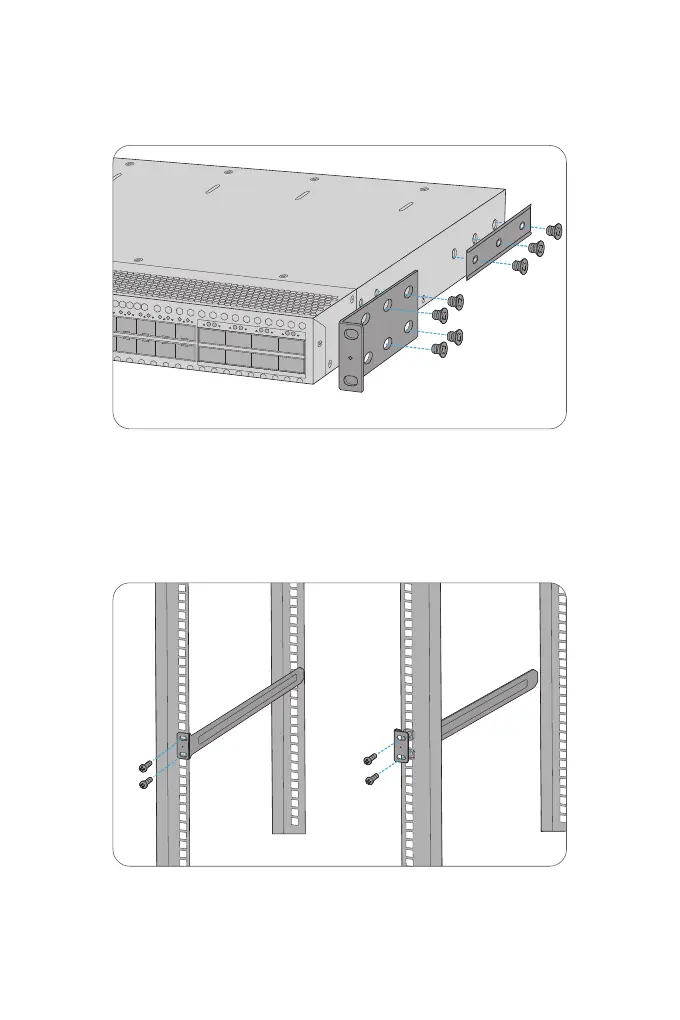

1. Secure the mounting brackets and inner rails to the two sides of the switch chassis with M4 screws.
2. Attach the slide rails to the rack using four M6 screws and nuts.
Rack Mounting
Mounting the Switch
