2 Product Overview
66
Product Overview
2

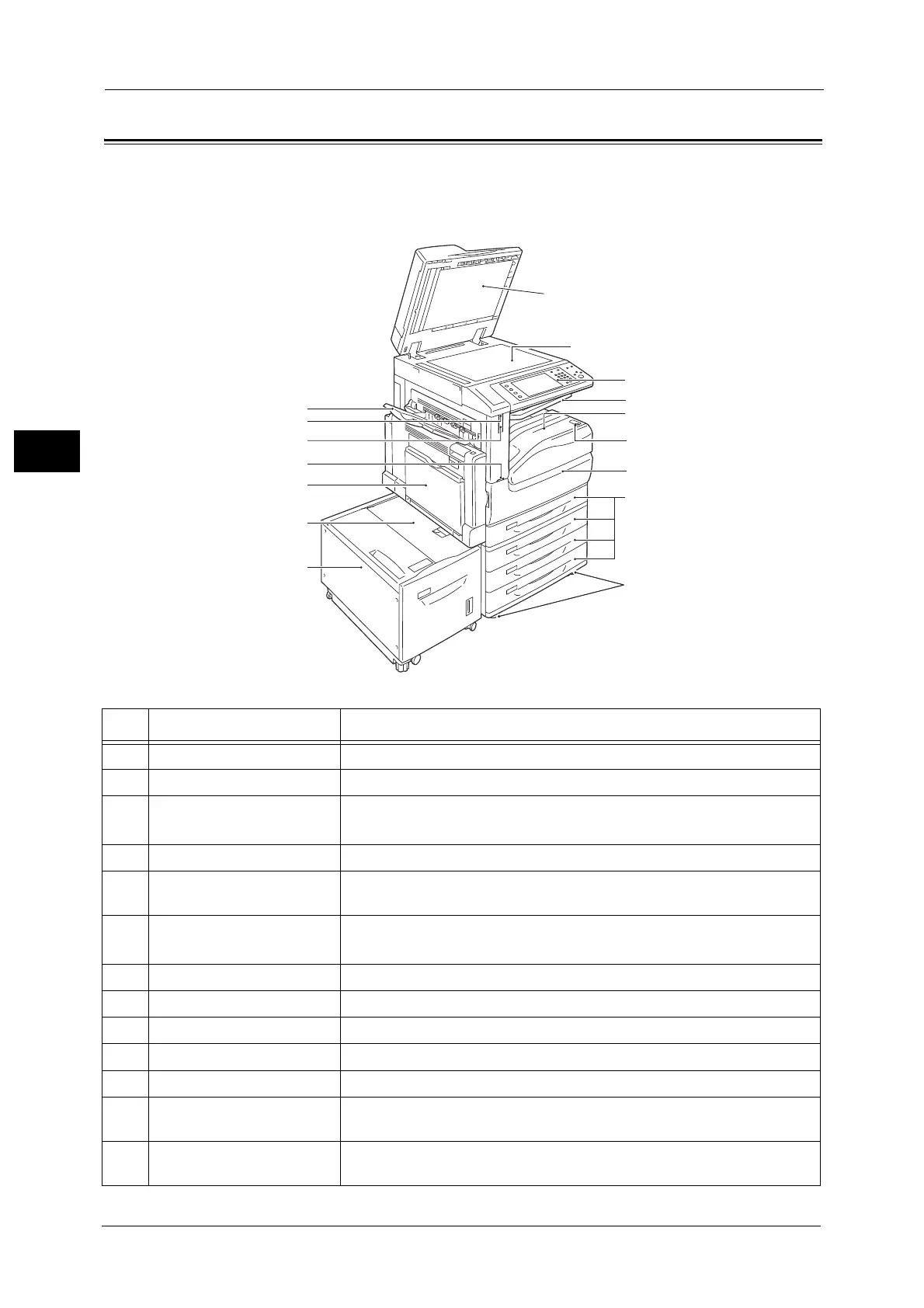

Machine Components
The following describes machine components and their functions.
3 Tray Module Model and HCF B1 (optional)
No. Component Function
1 Document cover Holds a document in place.
2 Document glass Load a document here.
3 Control panel Consists of operation buttons, LED indicators, and the touch screen.
Refer to "Control Panel" (P.84).
4 Exit 2 Tray Outputs are delivered here by separating the center tray into two levels.
5 Lower Center tray (output
tray)
Copies and prints are delivered here, facing down.
6 Push-button power switch Switches the power of the machine on and off.
Refer to "Power Source" (P.76).
7 Front cover Open this cover to replace the consumables.
8 Tray 1, Tray 2-4 Load paper here.
9 Locking casters Lock these casters after moving the machine to its installation site.
10 Tray 6 (HCF B1) (optional) Load paper here.
11 Tray 6 top cover Open this cover to clear paper jams after moving Tray 6 to the left.
12 Tray 5 (bypass tray) Used for loading non-standard paper, such as thick-stock paper and other
special media, that cannot be loaded in Trays 1 to 4, and 6.
13 Smart WelcomEyes (SWE)
pyroelectric sensor
The SWE pyroelectric sensor works consistently, and when it detects human
presence in the detectable area, the SWE reflection sensor starts working.
To Next Page
