3. Dimensions

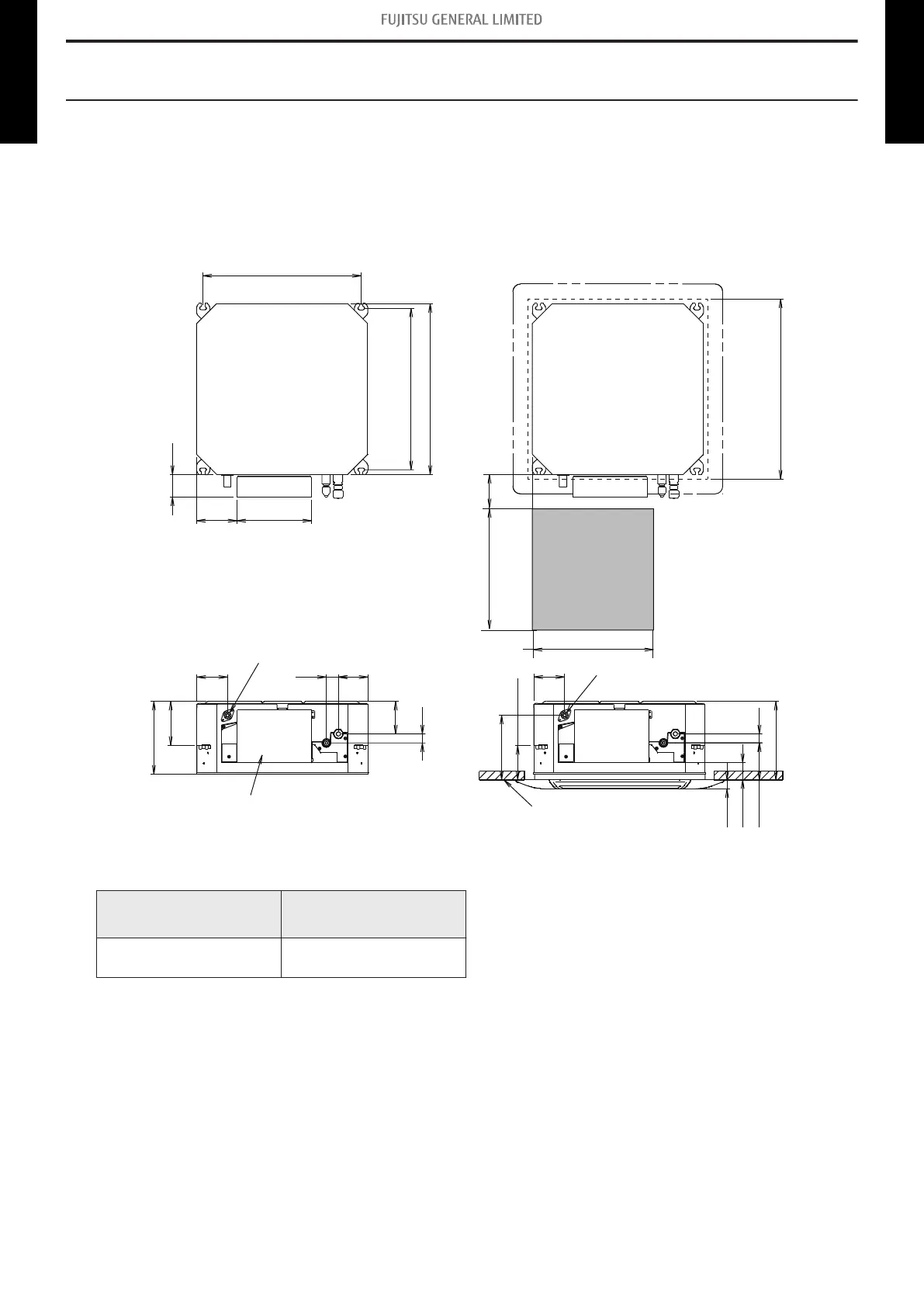

3-1. Compact cassette type
¢
Models: AUU7RLF, AUU9RLF, AUU12RLF, and AUU18RLF
20-7/8 (530): Hanging bolt position
4 (102)
5-5/16
(135)
9-13/16 (250)
2-15/16 (75)
1-3/16 (30)
1-3/16 (30)
10-5/16 (262)
21-1/4 (540): Hanging bolt position
22-7/16 (570): Indoor unit
a (Ceiling openings)
• Cassette grille mounting state
Top view
5-14/16 to 7-7/8 (150 to 200)
Min. 17-11/16 (450)
Min. 17-11/16 (450)
Maintenance space
Side view
8-7/16 (215)
4-13/16 (123)
2-5/16 (58)
4-1/2 (114)
5-3/4 (146)
4-1/4 (108)
4 (102)
9-5/8 (245)
1-3/16 (30)
1-9/16 (40)
3-7/8 (99)
Drain port
Control box
Ceiling
Drain port
Be sure to leave
maintenance space
for future service
at the designated
position.
Unit: in (mm)
a (Ceiling openings size):
Standard type grille
UTG-CCGF
Grid type grille
UTG-CCGFG
22-13/16 to 26
(580 to 660)
22-13/16 to 24
(580 to 610)
- 13 -
3-1. Compact cassette type 3. Dimensions
MULTI TYPE 2, 3, 4 ROOMS TYPE MULTI TYPE 2, 3, 4 ROOMS TYPE
