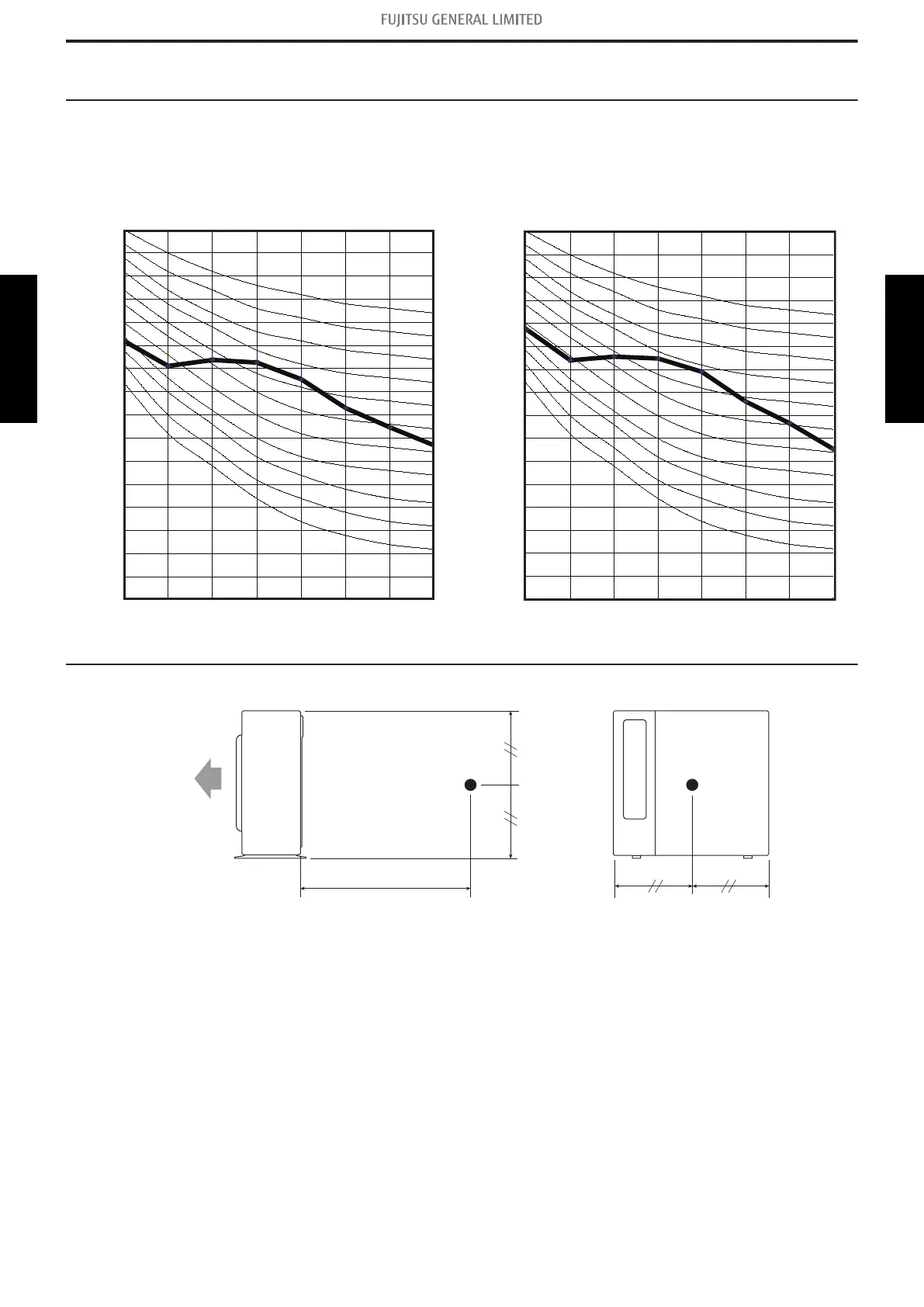

10. Operation noise (sound pressure)
10-1. Noise level curve
¢
Model: AOU24RLXFZ
 Cooling
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
80
70
60
50
40
30
20
10
0
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Octave band center frequency, Hz
63 125 250 500 1,000 2,000 4,000 8,000
 Heating
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
80
70
60
50
40
30
20
10
0
Octave band center frequency, Hz
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
10-2. Sound level check point
39-3/8 in (1 m)
MicrophoneMicrophone
Rear
A
irflow
Rear view
Side view
NOTE:
Detailed shape of the actual outdoor unit might be slightly different from the one illustrated
above.
- 242 -
10-1. Noise level curve 10. Operation noise (sound pressure)
OUTDOOR UNIT AOU24RLXFZ OUTDOOR UNIT AOU24RLXFZ
