3. Installation space
3-1. Models: AOYG36KBTB, AOYG45KBTB, and AOYG54KBTB
¢
Space requirement

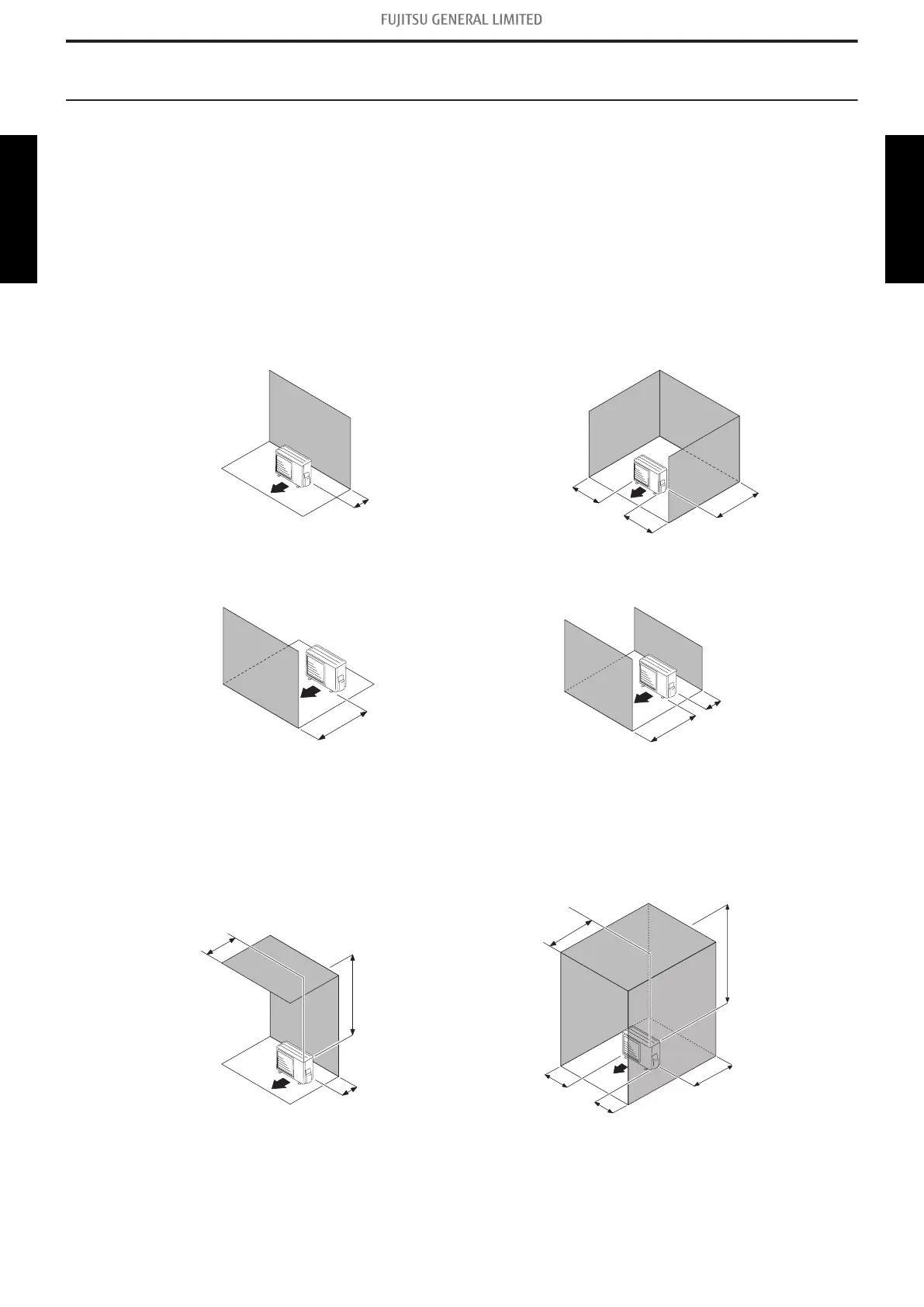

Provide sufficient installation space for product safety.
 Single outdoor unit installation
• When the upper space is open:
Unit: mm
When there are obstacles at the rear only. When there are obstacles at the rear and
sides.
100 or more
250 or more
1
00 or more
100 or more
When there are obstacles at the front only. When there are obstacles at the front and
rear.
500 or more
500 or more
1
00 or more
• When there is an obstruction in the upper space:
Unit: mm
When there are obstacles at the rear and
above.
When there are obstacles at the rear, sides, and
above.
300 or more
Max. 500
1
,000 or more
1,000 or more
200 or more
250 or more
500 or more
Max. 500
- 59 -
3-1. Models: AOYG36KBTB, AOYG45KBTB, and AOYG54KBTB 3. Installation space
OUTDOOR UNIT AOYG36-54KBTB OUTDOOR UNIT AOYG36-54KBTB
