7-11. Drain pump control
¢ Drain control for cooling operation (For Mini duct type)
 During the compressor in operation
• Triggering condition
The thermostat is turned on during cooling or dry mode.
• Operation details
The drain pump is turned on.
• Release condition
– The thermostat is turned off.
Refer to "When the compressor is not in operation" for the operation after release.
– The compressor is stopped.
Refer to "When the compressor is not in operation" for the operation after release.
– The operation is switched to heating mode.
Refer to "When the compressor is not in operation" for the operation after release.
– The float switch is turned on.
Refer to "Overflow control" for the operation after release.
– The compressor is stopped by Anti-freezing control.
Refer to "The compressor is stopped by Anti-freezing control" for the operation after re-
lease.
 When the compressor is not in operation
• Triggering condition
– The thermostat is turned off.
– The compressor is stopped.
– The operation is switched to heating mode.
– The float switch is turned off.
• Operation details
– Count 180 minutes.
– Start drain pump intermittent operaion.

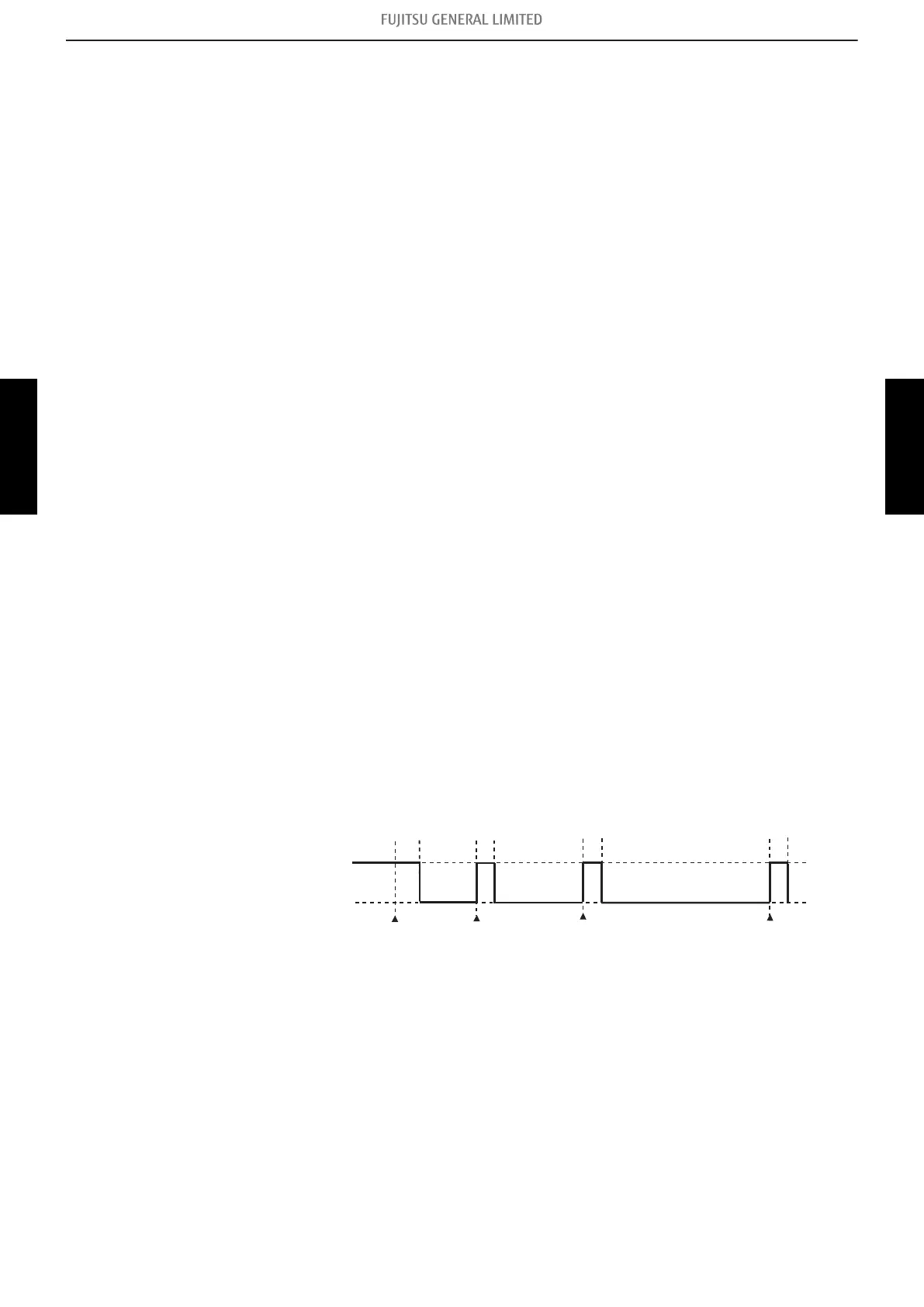

On
Off
Drain pump
3 min 3 min
3 min
Trigger point
(0 min)
3 min
10 min 60 min 180 min
• Release condition
– 3 minutes drain pump operation is finished after 180 minutes count.
– The operation is switched to cooling or dry mode.
Refer to "During the compressor in operation" for the operation after release.
– The float switch is turned on.
Refer to "Overflow control" for the operation after release.
• Operation after release
The drain pump is turned off and the air conditioner operate according the settings.
