1. Function settings (for indoor unit)
To adjust the functions of this product according to the installation environment, various types of
function settings are available.
NOTE:
Incorrect settings can cause a product malfunction.
1-1. Compact cassette, Mini duct, Slim duct types indoor unit
(setting by DIP switch)
By using some components on the PCB, you can change the function settings.
Related components on the PCB and the applicable settings:
Component Setting content
DIP switch
SW100
1
Remote controller address setting
2
3
4
SW101
1 Drainage function setting
2 Auto louver grille setting
3 Fan delay setting
¢ Component location

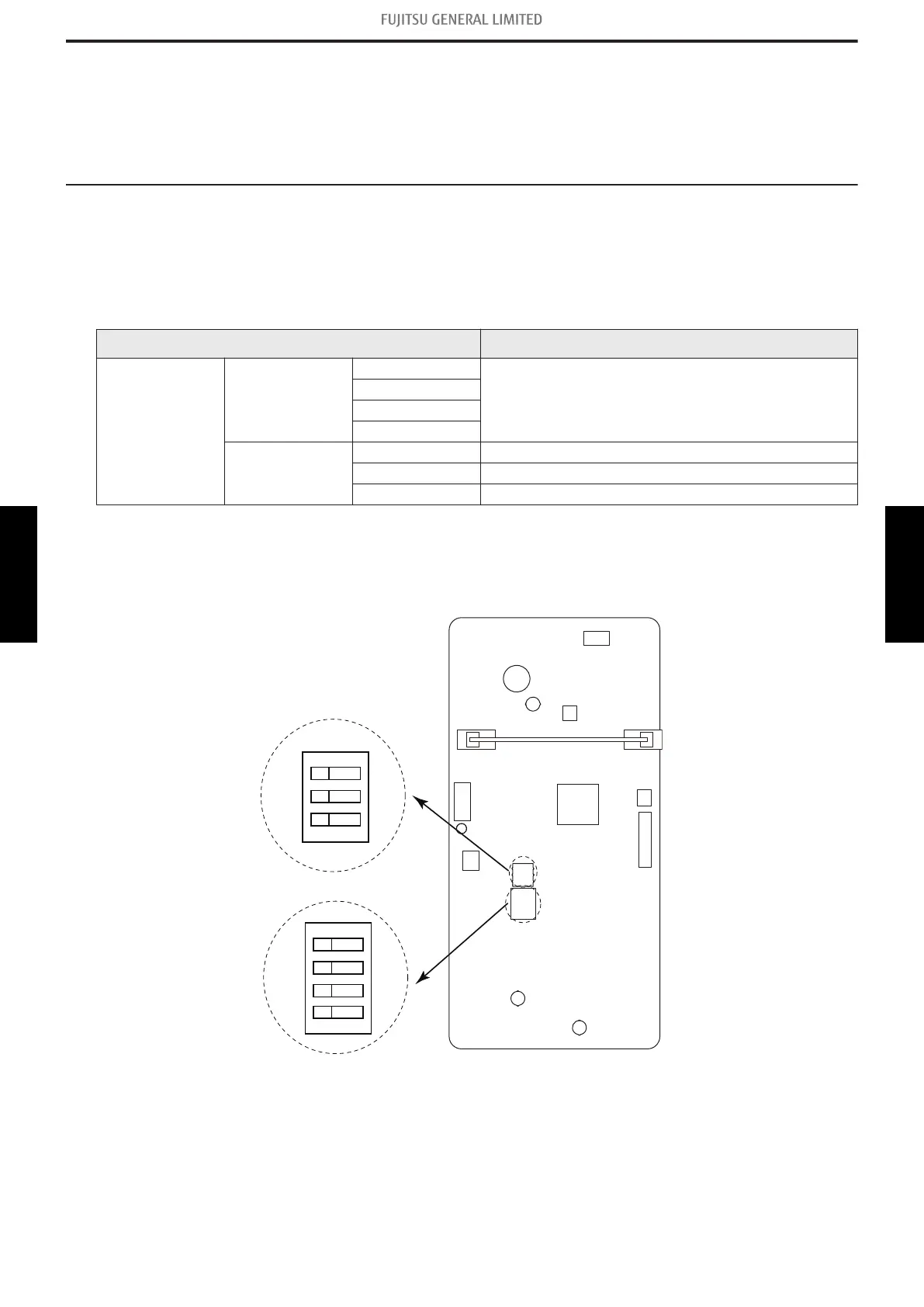

Components on the indoor unit main PCB used for the function settings are located as shown in
the following figure.
SW100
1
2
3
4
SW101
1
2
3
1-1. Compact cassette, Mini duct, Slim duct types indoor unit (setting by DIP switch) - (05-1) - 1. Function settings (for indoor unit)
