Fujitsu General ARXG36KHTAP User Manual

¢ Model: ARXG54KHTAP
 Cooling
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63
125 250 500 1,000 2,000 4,000
8,000
High
Quiet
 Heating
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63
125 250 500 1,000 2,000 4,000
8,000
High
Quiet
6-2. Sound level check point
Front view
Microphone
Side view
Product
Air
1.5 m
2 m 1 m
Microphone
Measuring duct
(Set the static pressure
as rating in this area.)
Measuring duct
- 18 -

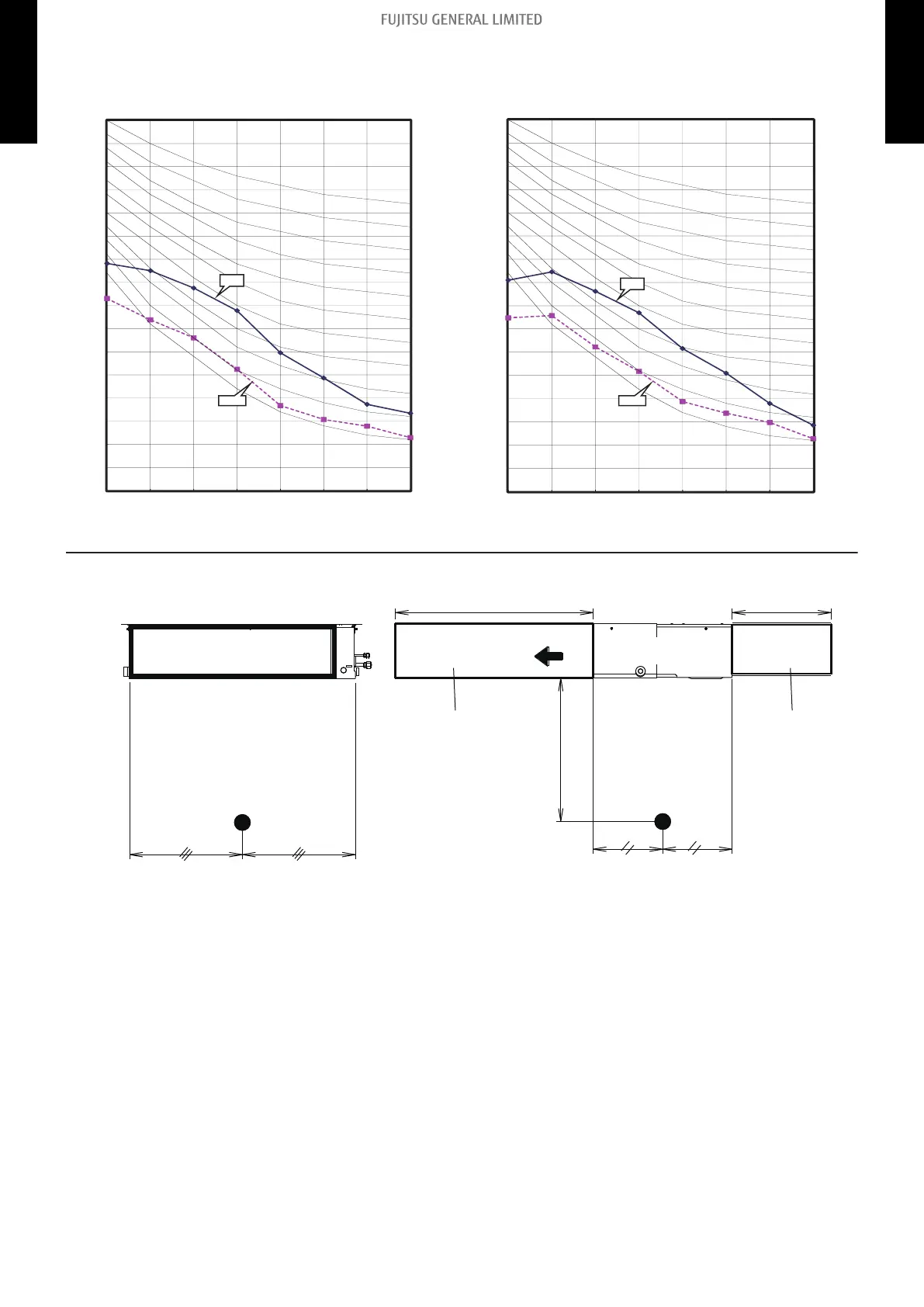

6-1. Noise level curve 6. Operation noise (sound pressure)
DUCT TYPE ARXG36-54KHTAP DUCT TYPE ARXG36-54KHTAP
